Iron 0.8mm Corrugated Roofing Sheet Roll Forming Machine Hydraulic Cut

0.8mm corrugated roofing sheet roll forming machine

iron corrugated roofing sheet roll forming machine

hydraulic cut corrugated roof sheeting machine

Miejsce pochodzenia:

CHINY

Nazwa handlowa:

FMS

Orzecznictwo:

CE,ISO

Skontaktuj się z nami

Poproś o wycenę

Szczegóły produktu

Nazwa produktu:

Producent maszyn do formowania rolek z blachy falistej i blachy ściennej

Nadaje się do obróbki:

Kolor stalowy

Wymiar:

7500 x 1500 x 1910 mm

System cięcia:

cięcie hydrauliczne

Waga:

6,5T

Materiał wałka:

Wysokiej jakości kuta stal 45 # pokryta twardym chromem

Woltaż:

380 V 3 fazy 50 Hz

Materiał cięcia:

Stal na formy CR12 z obróbką hartowaną

Hydrauliczny:

40#

Podkreślić:

0.8mm corrugated roofing sheet roll forming machine

iron corrugated roofing sheet roll forming machine

hydraulic cut corrugated roof sheeting machine

Warunki płatności i wysyłki

Minimalne zamówienie

1 zestaw

Cena

negotiable

Szczegóły pakowania

Główna maszyna jest naga, skrzynka sterownicza komputera jest zapakowana w plastik.

Czas dostawy

30 dni

Zasady płatności

T/T, Western Union

Możliwość Supply

30 zestawów miesięcznie

Powiązane produkty

Wideo

2025 New Design Metal Picket Fence Roll Forming Machine Fence Lines America Style

Uzyskaj najlepszą cenę

Wideo

Corrugated Container Board 15m/Min Wall Panel Roll Forming Machine Fully Automatic

Uzyskaj najlepszą cenę

Wideo

Trapezoid Steel Roof PPGL Wall Panel Roll Forming Machine 3phases

Uzyskaj najlepszą cenę

Wideo

Iron 0.8mm Corrugated Roofing Sheet Roll Forming Machine Hydraulic Cut

Uzyskaj najlepszą cenę

Skontaktuj się z nami

Skontaktuj się teraz

Opis produktu

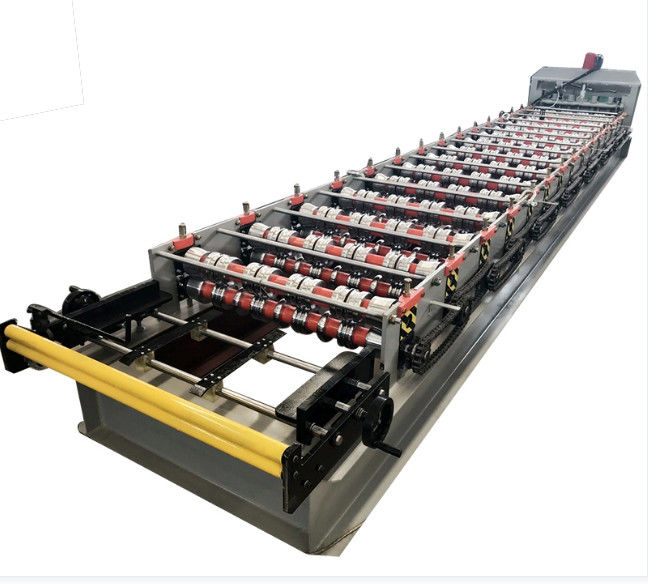

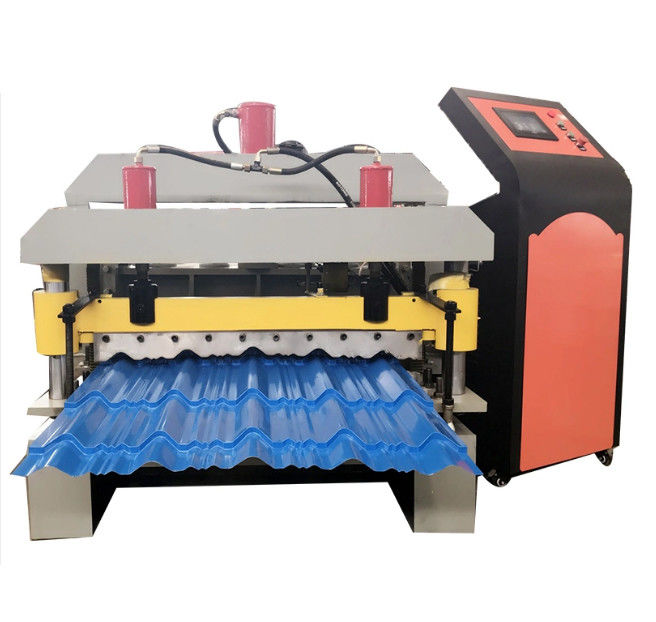

Corrugated Roofing Sheet Iron Wall Panel Roll Forming Machine Manufacturer

Machine consisit of uncoiler and its base, coil sheet guilding equipment, roll forming system, cutting system, hydraulic station, controling system and supporter table.

Glazed Tile are widely used in building: the steel-structured large-scale warehouses, plants, supermarkets,
shopping malls, trade markets, stadiums, holiday villages, sanatoriums, hotels, villas, residences, and different kinds of greenhouses. What's more, equipment can be designed and manufactured as customers' requests.

Equipment Detailed Parameters:

No.	Corrugated Roofing Sheet Iron Wall Panel Roll Forming Machine Manufacturer
1	Suitable material	Color steel sheet ,galvanized steel sheet, aluminium sheet
2	Width of material	1000mm or as customer's requirements
3	Thickness of material	0.3-0.8mm or as your needs
4	Working speed	0-15m/min
5	Electrical control system	PLC control system
6	Shaft diameter	80mm/85mm/90mm
7	Dimension	7500x1500x1920mm
8	Weight	About 8 Tons
9	Voltage	380V 3phase 50Hz or as the customer's requirements
10	Material of roller	High grade 45# forged steel plated with hard chrome plating
11	Material of cutting	Cr12 mould steel with quenched treatment
12	Working time	Can be 24 hours
13	Workers	1-2 only

Guarantee

1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.

2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation

Payment terms

40% in advance as down payment

60% is paid before the shipment is processed

Delivery

FOB: Tianjin Xingang Port

The Delivery Time: 30 days after the down payment is received.
