Trapezoid Steel Roof PPGL Wall Panel Roll Forming Machine 3phases

ppgl wall panel roll forming machine

3phases wall panel roll forming machine

ppgl trapezoidal roll forming machine

Miejsce pochodzenia:

Chiny kontynentalne

Nazwa handlowa:

FMS

Orzecznictwo:

ISO CE

Skontaktuj się z nami

Poproś o wycenę

Szczegóły produktu

Nazwa produktu:

Maszyna do formowania rolek ze stali trapezowej Formowanie rolek paneli ściennych dachowych

Tworzywo:

Gi,Gl, PPGL, PPGI

Wałek:

Chromowany

Specyfikacja:

9,5*1,45*1,5

Waga:

4500 kg

Gwarancja na podstawowe komponenty:

1 rok

Woltaż:

380 V 50 Hz 3 fazy, 380 V 50 Hz 3 fazy

Po sprzedaży:

Zapewnij prace związane z uruchomieniem i instalacją

Podkreślić:

ppgl wall panel roll forming machine

3phases wall panel roll forming machine

ppgl trapezoidal roll forming machine

Warunki płatności i wysyłki

Minimalne zamówienie

1 zestaw

Cena

negotiable

Szczegóły pakowania

40' FLC

Czas dostawy

30 dni roboczych

Zasady płatności

L/C, T/T, D/A, D/P

Możliwość Supply

20 zestawów miesięcznie

Powiązane produkty

Wideo

2025 New Design Metal Picket Fence Roll Forming Machine Fence Lines America Style

Uzyskaj najlepszą cenę

Wideo

Corrugated Container Board 15m/Min Wall Panel Roll Forming Machine Fully Automatic

Uzyskaj najlepszą cenę

Wideo

Trapezoid Steel Roof PPGL Wall Panel Roll Forming Machine 3phases

Uzyskaj najlepszą cenę

Wideo

Iron 0.8mm Corrugated Roofing Sheet Roll Forming Machine Hydraulic Cut

Uzyskaj najlepszą cenę

Skontaktuj się z nami

Skontaktuj się teraz

Opis produktu

Container Body Car Carriage Board Panel Cold Roll Forming Machine Plc Control

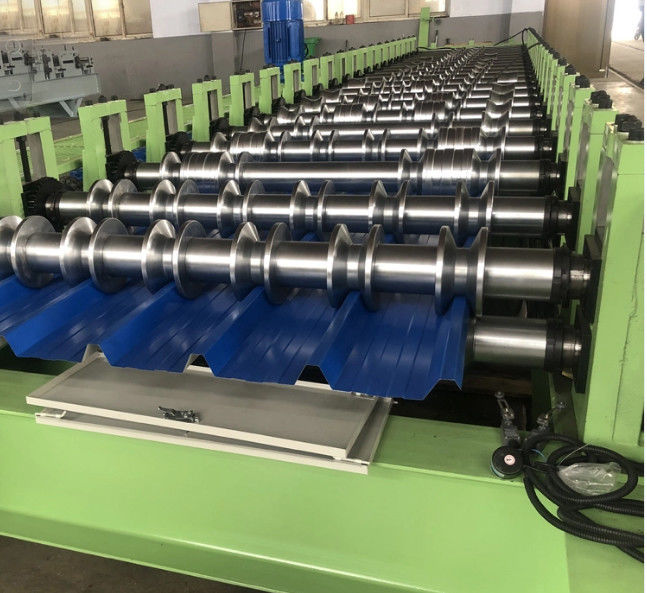

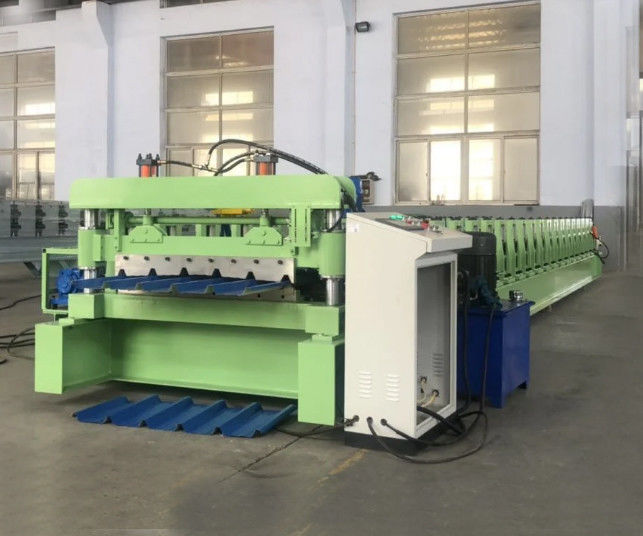

Trapezoid Steel Panel Roll Forming Machine Roof Wall Panel Roll Forming is the equipment that mainly produces trapezoidal sheet. Trapezoidal plates are very common in our daily lives. You can see that they are used in various fields, such as workshop, warehouse, carport, wall board, portable house, then why is it so widely used? Compared with traditional tiles, it has many advantages, such as light weight, high strength, heat insulation, easy installation, bright colors and waterproof, but at the same time it also has some small defects, such as sound insulation because of its thin thickness. The effect is relatively poor, and the ability to resist wind and cold is relatively poor, and it is easy to rust after a long period of rain and it is not easy to recycle.

Specification

1	Width of the plate	1219mm
2	Rollers	18 Rows
4	Power	11+11+7.5kw
5	Thickness of the plate	0.8-1.2mm
6	Productivity	0-15m/min
7	Diameter of the roller	90mm
8	Weight	About4500kg
9	Voltage	380V 50Hz 3phases
10	Material of the cutting plate	Cr12
11	Hydraulic	40#
12	Processing precision	Within 1.00mm
13	Control system	PLC control

Guarantee

1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.

2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation

Payment terms

40% in advance as down payment

60% is paid before the shipment is processed

Delivery

FOB: Tianjin Xingang Port

The Delivery Time: 30 days after the down payment is received.
