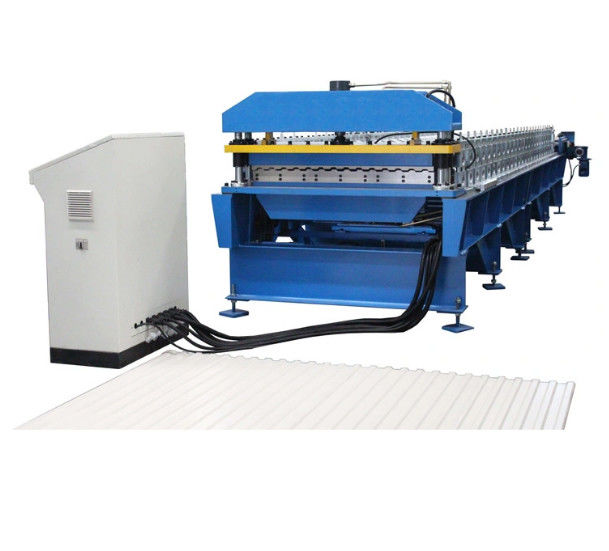

Multi Rib Wall Roof PPGI Trapezoidal Sheet Roll Forming Machine Work Automatically

ppgi trapezoidal sheet roll forming machine

trapezoidal sheet roll forming machine automatically

multi rib trapezoidal roll forming machine

Miejsce pochodzenia:

Chiny kontynentalne

Nazwa handlowa:

FMS

Orzecznictwo:

ISO CE

Skontaktuj się z nami

Poproś o wycenę

Szczegóły produktu

Nazwa produktu:

Maszyna do formowania rolek dachowych z blachy trapezowej Multi Ribs działa automatycznie

Odpowiedni materiał:

Stal malowana/stal Gi

Prędkość linii:

15-50 m/min

Specyfikacja:

9,5*1,45*1,5

Waga:

5000 kg

Gwarancja na podstawowe komponenty:

1 rok

Woltaż:

380 V 50 Hz 3 fazy, 380 V 50 Hz 3 fazy

Stosowanie:

Dach

Podkreślić:

ppgi trapezoidal sheet roll forming machine

trapezoidal sheet roll forming machine automatically

multi rib trapezoidal roll forming machine

Warunki płatności i wysyłki

Minimalne zamówienie

1 zestaw

Cena

negotiable

Szczegóły pakowania

40' FLC

Czas dostawy

30 dni roboczych

Zasady płatności

L/C, T/T, D/A, D/P

Możliwość Supply

20 zestawów miesięcznie

Powiązane produkty

Wideo

2025 New Design Metal Picket Fence Roll Forming Machine Fence Lines America Style

Uzyskaj najlepszą cenę

Wideo

Corrugated Container Board 15m/Min Wall Panel Roll Forming Machine Fully Automatic

Uzyskaj najlepszą cenę

Wideo

Trapezoid Steel Roof PPGL Wall Panel Roll Forming Machine 3phases

Uzyskaj najlepszą cenę

Wideo

Iron 0.8mm Corrugated Roofing Sheet Roll Forming Machine Hydraulic Cut

Uzyskaj najlepszą cenę

Skontaktuj się z nami

Skontaktuj się teraz

Opis produktu

Multi RibsTrapezoidal Sheet Wall Roof Roll Forming Machine Work Automatically

.Multi RibsTrapezoidal Sheet Wall Roof Roll Forming Machine Work Automatically.Roofing sheet making machine has a big range of metal sheet profiles. It includes trapezoidal panel, corrugated panel, roof tile panel, metal deck panel, standing seam panel, K span panel and ridge cap. Its products are widely used in roof and wall system in workshop construction and housing construction.

The normal machinable thickness range of our roof panel roll forming machine is 0.2mm-0.8mm, the standard or more used in international market is Gauge 26 (0.45-0.5mm), working raw material is Aluminum, PPGI, Galvanized steel, Galvalume steel etc. We confirm machine's configuration according to your drawing, specially the pitch and height of each wave.

Specification

Application
	Metal trapezoidal roof is widely used for commercial metal buildings, associated with residential and commercial. Trapezoidal roof roll forming machine is special designed for its production.
	Technical Parameters
	1		Suitable Material	PPGI Steel Coil / Galvalume Steel Coil / Embossed Aluminum Coil
	2		Material Width	914 / 1000 / 1200 / 1220 / 1250mm
	3		Material Thickness	0.3-0.8 mm
	4		Roll forming speed	10-20 m/min (Exclude Cutting Time)
Equipment List
1		Hydraulic Decoiler with Breaking device is equipped for coil processing			1 set
2		Rollformer with tooling			1 set
3		Hydraulic cut-off machine			1 set
4		Run out table or automatic stacking device			1 set
5		Siemens Or Mitsubishi PLC and Touchable Screen are used for data processing and setting			1 s

Guarantee

1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.

2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation

Payment terms

40% in advance as down payment

60% is paid before the shipment is processed

Delivery

FOB: Tianjin Xingang Port

The Delivery Time: 30 days after the down payment is received.
