3 Phase Ibr Steel Roof Sheet Making Machine Long Span

ibr steel roof sheet making machine

3phase steel roof sheet making machine

long span metal roofing roll former

Miejsce pochodzenia:

CHINY

Nazwa handlowa:

FMS

Orzecznictwo:

CE,ISO

Skontaktuj się z nami

Poproś o wycenę

3 Phase Ibr Steel Roof Sheet Making Machine Long Span

Szczegóły produktu

Nazwa produktu:

Ibr Metalowy panel ścienny Dachówka Dachówka Stalowa maszyna do formowania rolek o dużej rozpiętości

Nadaje się do obróbki:

Kolor stalowy

Grubość cewki:

0,3-0,8 mm

System cięcia:

350H

Waga:

6,5T

Woltaż:

380 V 3 fazy 50 Hz

Materiał cięcia:

Stal na formy CR12 z obróbką hartowaną

Hydrauliczny:

40#

Podkreślić:

ibr steel roof sheet making machine

3phase steel roof sheet making machine

long span metal roofing roll former

Warunki płatności i wysyłki

Minimalne zamówienie

1 zestaw

Cena

negotiable

Szczegóły pakowania

Główna maszyna jest naga, skrzynka sterownicza komputera jest zapakowana w plastik.

Czas dostawy

30 dni

Zasady płatności

T/T, Western Union

Możliwość Supply

30 zestawów miesięcznie

Powiązane produkty

Wideo

2025 New Design Metal Picket Fence Roll Forming Machine Fence Lines America Style

Uzyskaj najlepszą cenę

Wideo

Corrugated Container Board 15m/Min Wall Panel Roll Forming Machine Fully Automatic

Uzyskaj najlepszą cenę

Wideo

Trapezoid Steel Roof PPGL Wall Panel Roll Forming Machine 3phases

Uzyskaj najlepszą cenę

Wideo

Iron 0.8mm Corrugated Roofing Sheet Roll Forming Machine Hydraulic Cut

Uzyskaj najlepszą cenę

Skontaktuj się z nami

86-317-2016816

Skontaktuj się teraz

Opis produktu

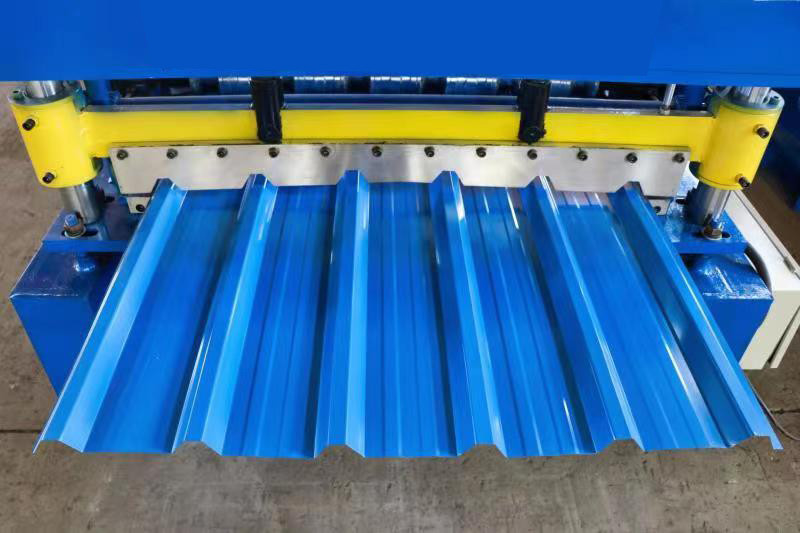

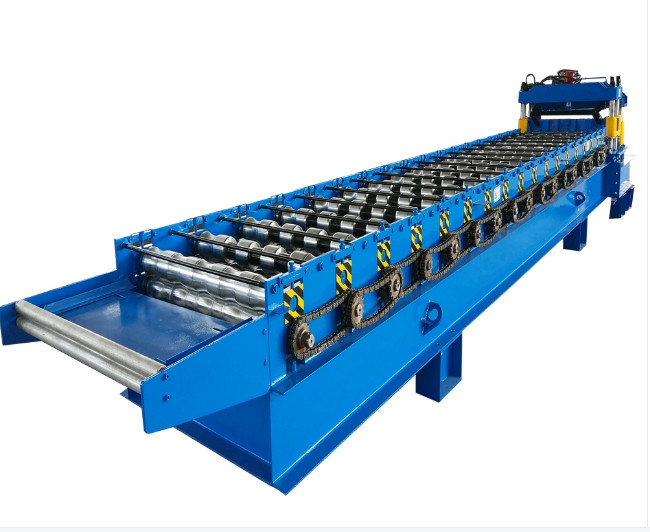

Ibr Metal Wall Panel Roof Tile Roof Steel Roll Forming Machine Long Span

IBR is widely used in the roofing industry and a common product used in roofing applications from industrial,commercial to residential applications.
It has become a household name in the South African building industry. The IBR's deep, broad flute design offers first-rate drainage abilities with ideal weight versus load/span characteristics. IBR can be factory Cranked, Curved and Bullnosed to various radii depending on customer's requirements.

Equipment Detailed Parameters:

No.	Ibr Metal Wall Panel Roof Tile Roof Steel Roll Forming Machine Long Span
1	Suitable material	Color steel sheet ,galvanized steel sheet, aluminium sheet
2	Width of material	1000mm or as customer's requirements
3	Thickness of material	0.3-0.8mm or as your needs
4	Working speed	0-15m/min
5	Electrical control system	PLC control system
6	Shaft diameter	80mm/85mm/90mm
7	Dimension	7500x1500x1920mm
8	Voltage	380V 3phase 50Hz or as the customer's requirements
9	Material of roller	High grade 45# forged steel plated with hard chrome plating
10	Material of cutting	Cr12 mould steel with quenched treatment
11	Working time	Can be 24 hours

Guarantee

1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.

2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation

Payment terms

40% in advance as down payment

60% is paid before the shipment is processed

Delivery

FOB: Tianjin Xingang Port

The Delivery Time: 30 days after the down payment is received.
