IBR 900 building Roof Tile Roll Forming Machine Long Span 7 Ribs High Capacity

building roof tile roll forming machine

ibr roof tile roll forming machine

7 ribs tile roll forming machine

Miejsce pochodzenia:

CHINY

Nazwa handlowa:

cangzhou fms

Orzecznictwo:

CE,ISO

Skontaktuj się z nami

Poproś o wycenę

Szczegóły produktu

Nazwa produktu:

Maszyna do formowania rolek dachowych o dużej rozpiętości 900, 7 żeber o dużej wydajności

Grubość cewki:

0,3-0,8 mm

Wymiar (L*W*H):

7500 x 1500 x 1910 mm

Waga:

6,5T

Prędkość:

12 m/min

Woltaż:

380 V 3 fazy 50 Hz

Podkreślić:

building roof tile roll forming machine

ibr roof tile roll forming machine

7 ribs tile roll forming machine

Warunki płatności i wysyłki

Minimalne zamówienie

1 zestaw

Cena

negotiable

Szczegóły pakowania

Główna maszyna jest naga, skrzynka sterownicza komputera jest zapakowana w plastik.

Czas dostawy

30 dni

Zasady płatności

T/T, Western Union

Możliwość Supply

30 zestawów miesięcznie

Powiązane produkty

6m Automatic Stacker for Roof Sheet Roll Forming Machine

Uzyskaj najlepszą cenę

Wideo

the factory price for 0.3-0.8mm thickness Glazed Roof sheet forming machine

Uzyskaj najlepszą cenę

Wideo

2025 New Design for Glazed Roof Tile Roof Sheet Roll Forming Machine With 18 Rows

Uzyskaj najlepszą cenę

Wideo

4meter/Min Glazed Tile Roll Forming Machine With 18 Rows

Uzyskaj najlepszą cenę

Skontaktuj się z nami

Skontaktuj się teraz

Opis produktu

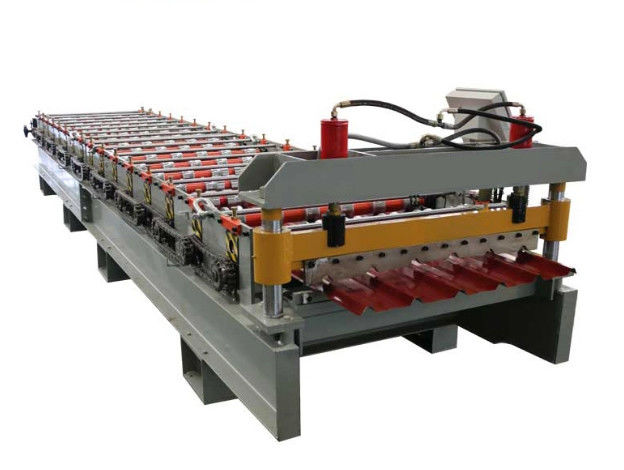

High Capacity 900 Long Span Roof Roll Forming Machine 7 Ribs

High Capacity 900 Long Span Roof Roll Forming Machine 7 Ribs.It has become a household name in the South African building industry. The IBR's deep, broad flute design offers first-rate drainage abilities with ideal weight versus load/span characteristics. IBR can be factory Cranked, Curved and Bullnosed to various radii depending on customer's requirements.
Because of price pressure of the material used to manufacture, this product is getting thinner and harder requiring these IBR Rollforming machines to be specially designed to produce and ensure a good quality finished product. It can also be noted that the machines are often required to run 915mm material as well or even 1225mm wide coil.

No.	High Capacity 900 Long Span Roof Roll Forming Machine 7 Ribs
1	Suitable material	Color steel sheet ,galvanized steel sheet, aluminium sheet
2	Width of material	1000mm or as need
3	Thickness of material	0.3-0.8mm or as your needs
4	Working speed	10-20m/min
5	Electrical control system	PLC control system
6	Shaft diameter	80mm/85mm
7	Dimension	7500x1500x1910mm
8	Weight	About 7 T
9	Voltage	380V 3phase 50HZ or as the customer's requirements
10	Material of roller	High grade 45# forged steel plated with hard chrome plating
11	Material of cutting	Cr12 mould steel with quenched treatment
12	Working time	Can be 24 hours
13	Workers	1-2 only

IBR 900 building Roof Tile Roll Forming Machine Long Span 7 Ribs High Capacity 0
