Metal Tile Plc Control Roof Panel Forming Machine Low Noise

plc control roof panel forming machine

low noise roof panel forming machine

plc control metal roof forming machine

Miejsce pochodzenia:

CHINY

Nazwa handlowa:

CANGZHOU FMS

Orzecznictwo:

ISO CE

Skontaktuj się z nami

Poproś o wycenę

Szczegóły produktu

Nazwa produktu:

Maszyna do formowania dachówek metalowych Maszyna do paneli dachowych o niskim poziomie hałasu

Grubość:

0,3-0,8 mm

System sterowania:

Sterowanie PLC

Rolki:

45 # Stal zgodnie z wymaganiami klienta

Waga maszyny:

Automatyczny

Silnik:

5,5 kW

Materiał rolkowy:

45# stal

ostrze tnące:

Cr12 Ruch

Podkreślić:

plc control roof panel forming machine

low noise roof panel forming machine

plc control metal roof forming machine

Warunki płatności i wysyłki

Minimalne zamówienie

1 zestaw

Cena

negotiable

Szczegóły pakowania

40' FLC

Czas dostawy

30 dni roboczych

Zasady płatności

L/C, T/T, D/A, D/P

Możliwość Supply

20 zestawów miesięcznie

Powiązane produkty

Wideo

High Speed Trapezoidal and glazed Double Layer Roof sheet roofing tile Forming Machine

Uzyskaj najlepszą cenę

Wideo

New Style Trapezoidal and glazed Double Layer Roof sheet roofing tile Forming Machine

Uzyskaj najlepszą cenę

Wideo

2025 factory price hot sale Trapezoidal and glazed Double Layer Roof sheet roofing tile Forming Machine

Uzyskaj najlepszą cenę

Wideo

2025 New Trapezoidal and glazed Double Layer Roof sheet roofing tile Roll Forming Machine

Uzyskaj najlepszą cenę

Skontaktuj się z nami

Skontaktuj się teraz

Opis produktu

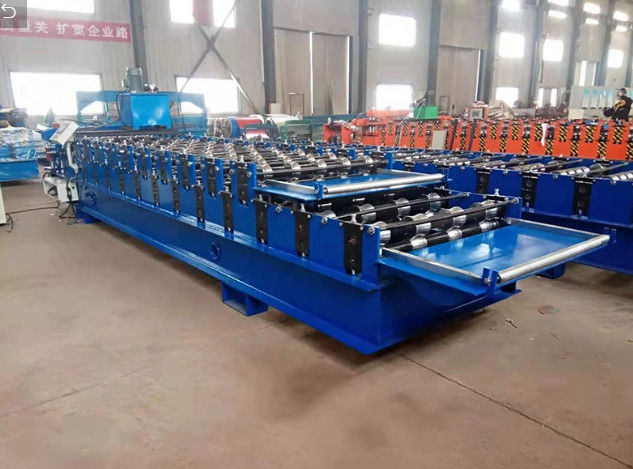

Metal Roof Tile Forming Machine Low Noise Roof Panel Machine

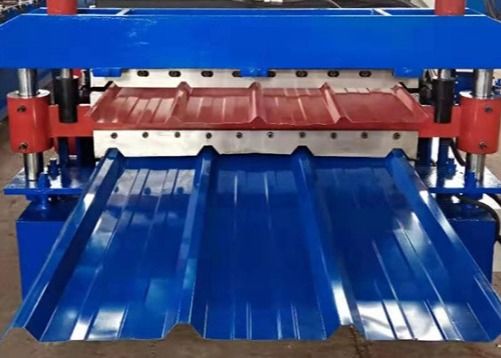

Metal Roof Tile Forming Machine Low Noise Roof Panel Machine,The machine have alternating bottom and upper stands. Rolls for one profile( like ibr sheeting ) are installed in the bottom stands, and rolls for another profile(like corrugated sheeting )are mounted on the upper stands. The whole line will use only one uncoiler, one cutoff unit, one controlled box. But the machine can't produce the 2 profiles at the same time.

Specification

Coil required	Material	PPGI GI AL
	Width	914/925/1000/1200/1220/1250mm
	Thickness	0.3-0.7mm , as custom order
Power required	Power	380V 50Hz 3 Phase , as custom order
	Main Motor	5.5KW Siemens Brand
	Cutting Motor	4KW Siemens
Machine	Support Frame	400 H Steel 10mm
	Forming Station	14 rows as profile
	Structure	18-20mm
	Shaft	75mm
	Roller	45# Steel with heat treatment
	Chains	1.2 inch
	Bearings	Standard as custom order
	Speed	15-30m/min
	Electric Components	Delta and Siemens
	Size	7.51.31.6M
	Weight	4T

Guarantee

1.Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.
2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation

Payment terms

40% in advance as down payment
60% is paid before the shipment is processed

Delivery

FOB: Tianjin Xingang Port
The Delivery Time: 30 days after the down payment is received.
