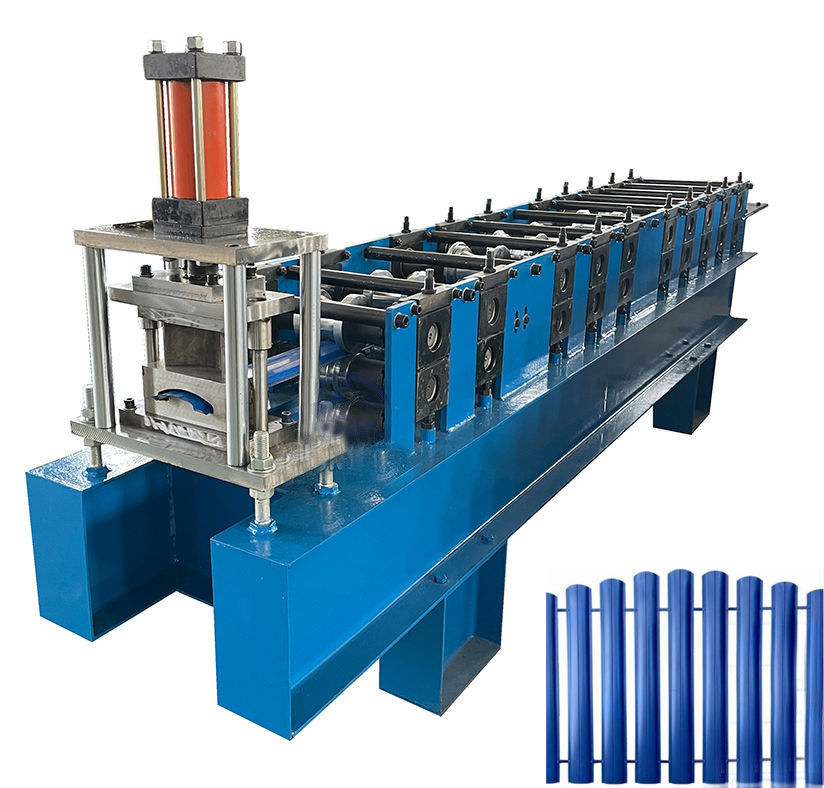

Name: Metal Picket Fence Cold Roll Forming Machine 3 Phases
Brand: Cangzhou Famous International Trading Co., Ltd
SKU: Rama drzwi
Price: 12000.00 USD
Availability: InStock

Do domu > produkty > Maszyna do formowania rolek drzwi żaluzjowych >

Metal Picket Fence Cold Roll Forming Machine 3 Phases

picket fence cold roll forming machine

3 phases cold roll forming machine

picket fence roll former machine

Miejsce pochodzenia:

Chiny kontynentalne

Nazwa handlowa:

FMS

Orzecznictwo:

ISO CE

Numer modelu:

Rama drzwi

Skontaktuj się z nami

Poproś o wycenę

Szczegóły produktu

Nazwa produktu:

Maszyna do formowania rolek metalowych płotów ogrodzeniowych w Ameryce

Woltaż:

380 V 50 Hz 3 fazy

Zdolność produkcyjna:

10-30 m/min

Wymiar (L*W*H):

4,5*1*1 m

Grubość rolki:

0,3-0,8 mm

Materiał rolkowy:

Stal 45# z chromem o grubości 0,05 mm

Waga:

1500 kg

Podkreślić:

picket fence cold roll forming machine

3 phases cold roll forming machine

picket fence roll former machine

Warunki płatności i wysyłki

Minimalne zamówienie

1 zestaw

Cena

negotiable

Szczegóły pakowania

20' FLC

Czas dostawy

30 dni roboczych

Zasady płatności

L/C, T/T, D/A, D/P

Możliwość Supply

20 zestawów miesięcznie

Powiązane produkty

Wideo

Metal Chain Driving Shutter Door Roll Forming Machine Speed 20-30m/Min

Uzyskaj najlepszą cenę

Wideo

Customized High Speed PU Door Roller Shutter Roll Forming Machine

Uzyskaj najlepszą cenę

Wideo

3T Shutter Door Roll Forming Machine For 0.8-1.2mm Thickness And 6.5m0.95m1.2m Size

Uzyskaj najlepszą cenę

Wideo

45 Steel Roller Material Shutter Door Roll Forming Machine with 7.5KW PLC Control System

Uzyskaj najlepszą cenę

Skontaktuj się z nami

Skontaktuj się teraz

Opis produktu

Metal Picket Fence Roll Forming Machine Fence Lines America

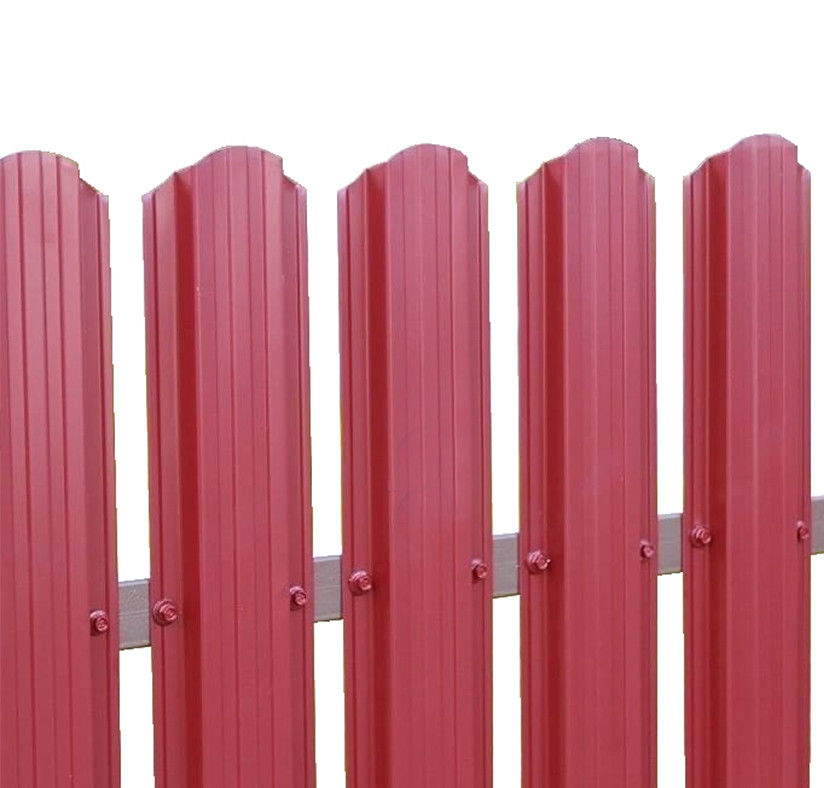

Metal Picket Fence Roll Forming Machine Fence Lines America,Metal Picket fence is a new solution to the classical approach to the construction of fences.
It is roll formed from light-gauge sheet metal with polymer coating.Being an original solution of landscape design, a fence made of Metal Picket fence imitates a natural fence made of wood and, thanks to its structure, allows creating an attractive appearance around the enclosed territory.

The advantages of a metal fence are aesthetics, strong design, lightweighting and affordable cost.

Specification

Part details	Item Name	Specification
Material	Raw material	PPGI
Material	Thickness	0.3-0.6 mm
Machine	Roller station	10
	Shaft diameter	50 mm
	Shaft material	45# steel with 0.05mm chrome
	Roller material hardness 30-40 HRC	45# steel with 0.05mm chrome
	Machine size	About 4.5×1×1 m
	Machine weight	About 1.5 ton
	Machine color	As customer' request
	Working speed	10-20 m/min
Cutter	Hardness	50-65 HRC
	Cutting tolerance	± 1 mm
	Material	Cr 12
	Operate	Hydraulic cutting
Power	Driving way	Chain 1 inch
	Main power	4 kw
	Pump power	3 kw
	Voltage	380v/50HZ,3P or customize as customer' request
Control system	PLC brand	Delta made in Twaiwan
	Screen	Touchable screen
	Language	Chinese and English or add language as customer need
Decoiler	Operation	Manual
	Weight capicatity	5 ton
	Price	Free as gift
Receiving table	Operation	Manual
	Length	3 m
	Price	Free as gift

Guarantee

1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.

2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation

Payment terms

40% in advance as down payment

60% is paid before the shipment is processed

Delivery

FOB: Tianjin Xingang Port

The Delivery Time: 30 days after the down payment is received.
