Name: 0.3mm Roll Forming Equipment For Security Fencing Palisade Fence Pale
Brand: Cangzhou Famous International Trading Co., Ltd
SKU: Rama drzwi
Price: 12000.00 USD
Availability: InStock

Do domu > produkty > Maszyna do formowania rolek drzwi żaluzjowych >

0.3mm Roll Forming Equipment For Security Fencing Palisade Fence Pale

0.3mm roll forming equipment

security fencing roll forming equipment

palisade fence pale roll former

Miejsce pochodzenia:

Chiny kontynentalne

Nazwa handlowa:

FMS

Orzecznictwo:

ISO CE

Numer modelu:

Rama drzwi

Skontaktuj się z nami

Poproś o wycenę

Szczegóły produktu

Nazwa produktu:

Ogrodzenia zabezpieczające Ogrodzenia palisadowe Pale Roll Forming Lines UK

Woltaż:

380 V/440 V/220 V/415 V

Zdolność produkcyjna:

10-15m/min

Wymiar (L*W*H):

4,5*1*1 m

Grubość:

0,3-0,8 mm

Materiał wału:

45 # Stalowa średnica zewnętrzna: 70 mm

Materiał rolkowy:

45 # stal chromowana

Podkreślić:

0.3mm roll forming equipment

security fencing roll forming equipment

palisade fence pale roll former

Warunki płatności i wysyłki

Minimalne zamówienie

1 zestaw

Cena

negotiable

Szczegóły pakowania

20' FLC

Czas dostawy

30 dni roboczych

Zasady płatności

L/C, T/T, D/A, D/P

Możliwość Supply

20 zestawów miesięcznie

Powiązane produkty

Wideo

Metal Chain Driving Shutter Door Roll Forming Machine Speed 20-30m/Min

Uzyskaj najlepszą cenę

Wideo

Customized High Speed PU Door Roller Shutter Roll Forming Machine

Uzyskaj najlepszą cenę

Wideo

3T Shutter Door Roll Forming Machine For 0.8-1.2mm Thickness And 6.5m0.95m1.2m Size

Uzyskaj najlepszą cenę

Wideo

45 Steel Roller Material Shutter Door Roll Forming Machine with 7.5KW PLC Control System

Uzyskaj najlepszą cenę

Skontaktuj się z nami

86-317-2016816

Skontaktuj się teraz

Opis produktu

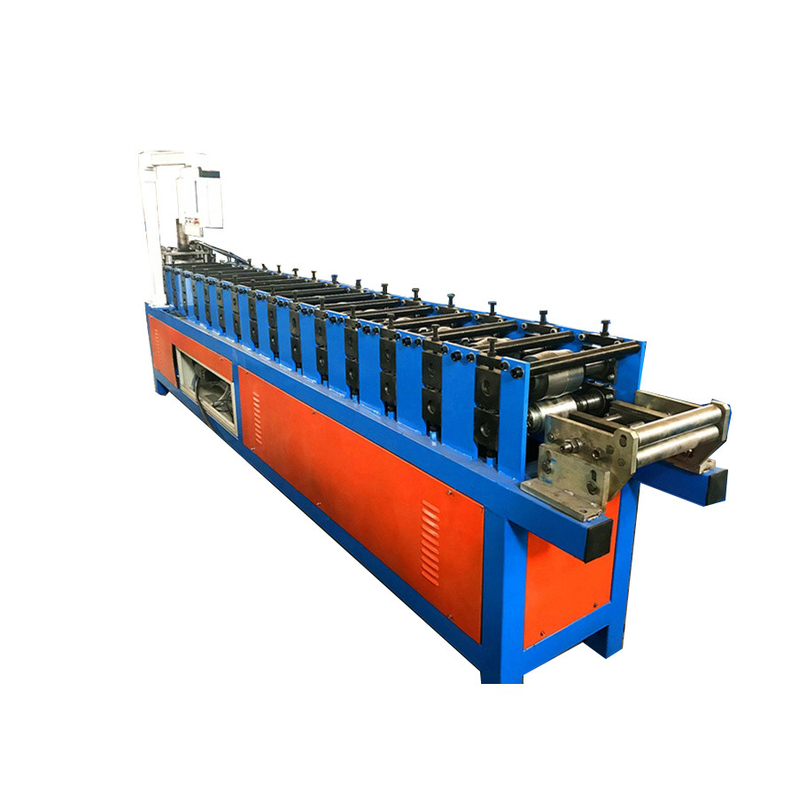

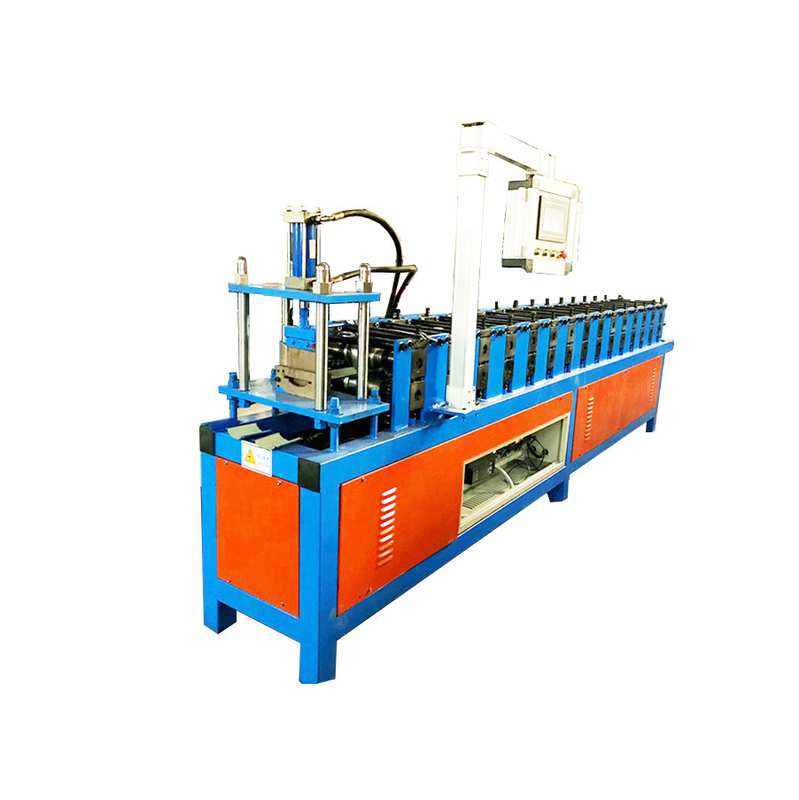

Security Fencing Palisade Fence Pale Roll Forming Lines UK

Security Fencing Palisade Fence Pale Roll Forming Lines UK,Our Fence Roll Forming Machine for different models based on different designs or customer's samples . It is a new building material, the products are widely used as the roof and wall of factory, warehouse, garage, gymnasium, exhibition center.It has many advantages, such as easy installation, short building period, beauty, light weight but high strength.

Specification

No.	Security Fencing Palisade Fence Pale Roll Forming Lines UK
1	Suitable to process	Color alu-zinc steel strips
2	Roller	15 Rows plus leveling device
3	Dimensions	5.811.5m
4	Motor Power	3Kw
5	Pump Station Motor	4Kw.Lichao Brand
6	Thickness of the plate	0.3-0.8mm
7	Productivity	10-15m/min
8	Material of the cutting blade	Cr12,Quenched treatment 58℃-60℃
9	Diameter of the roller	Φ70mm
10	Weight	About 2600kgs
11	Main structure of the machine	Square steel frame
12	Processing precision	Within 1.0mm
13	Side panel of machine	16mm
14	Chain Wheel and Cycle Chain	1 Inch
15	Voltage	380V 50Hz 3phases or as customer's need
16	Control system	PLC control (Delta)
17	Frequency system	Delta
18	Drive mode	Gear driver
19	Touch screen	Delta
20	Rolling materials	45# forging steel with chromium plate
21	Length Tolerance	±2mm

Guarantee

1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.

2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation

Payment terms

40% in advance as down payment

60% is paid before the shipment is processed

Delivery

FOB: Tianjin Xingang Port

The Delivery Time: 30 days after the down payment is received.
