Name: Steel Sheet Galvalume Metal Slitting Line Simple Automatic 550mm
Brand: Cangzhou Famous International Trading Co., Ltd
SKU: przyciąć do linii długości
Price: 26,500.00 USD
Availability: InStock

Do domu > produkty > Cięcie na długość i linię cięcia >

Steel Sheet Galvalume Metal Slitting Line Simple Automatic 550mm

galvalume metal slitting line

550mm metal slitting line

galvalume steel slitting line

Miejsce pochodzenia:

Chiny kontynentalne

Nazwa handlowa:

CANGZHOU FMS

Orzecznictwo:

ISO, CE

Numer modelu:

przyciąć do linii długości

Skontaktuj się z nami

Poproś o wycenę

Szczegóły produktu

Nazwa produktu:

Maszyna do cięcia wzdłużnego blachy stalowej do metalu Prosta automatyczna

Rozwijacz silnika:

1 zestaw

rozcinanie:

1 zestaw

Korygowanie i tłumienie:

1 zestaw

Automatyczny nawijak hydrauliczny:

1 zestaw

Szafa sterownicza elektryczna:

1 zestaw

Podkreślić:

galvalume metal slitting line

550mm metal slitting line

galvalume steel slitting line

Warunki płatności i wysyłki

Minimalne zamówienie

1 zestaw linii produkcyjnej

Cena

negotiable

Szczegóły pakowania

1 szt. 40' FLC

Czas dostawy

60 dni roboczych

Zasady płatności

L/C, D/A, D/P, T/T

Możliwość Supply

20 zestawów miesięcznie

Powiązane produkty

Wideo

steel coile 40m/min High Speed Slitting Line Machine With Hydraulic Uncoiler And Recoiler

Uzyskaj najlepszą cenę

Wideo

40m/min High Speed Slitter Slitting Line Machine With Hydraulic Uncoiler And Recoiler

Uzyskaj najlepszą cenę

Wideo

380v 50hz High Speed Steel Coil Slitter Slitting Producttion Line Machine With Hydraulic Uncoiler And Recoiler

Uzyskaj najlepszą cenę

Wideo

High Speed Slitter Slitting Line Machine With Hydraulic Uncoiler And Recoiler

Uzyskaj najlepszą cenę

Skontaktuj się z nami

86-317-2016816

Skontaktuj się teraz

Opis produktu

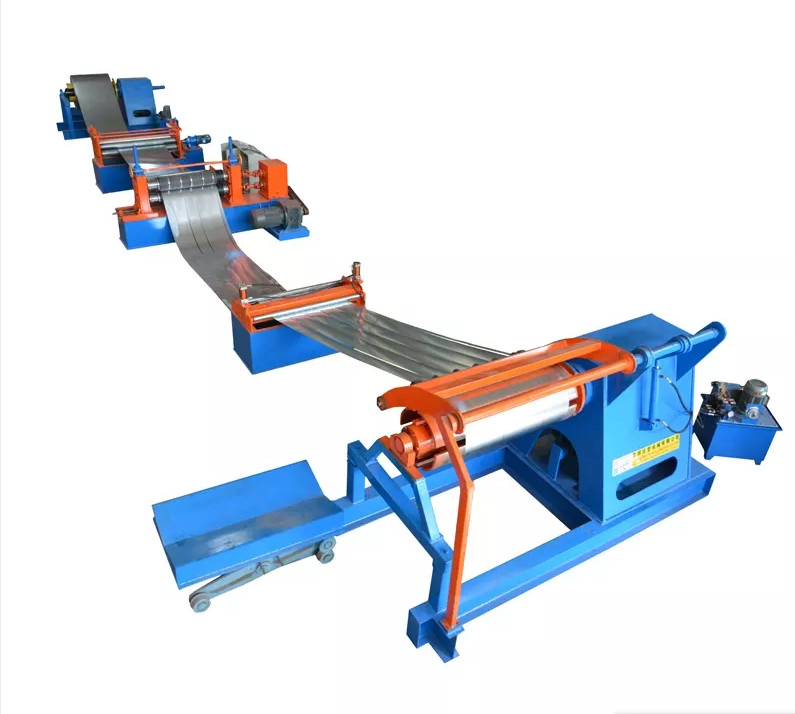

Steel Sheet Slitting Line Machine For Metal Simple Automatic

Steel Sheet Slitting Line Machine For Metal Simple Automatic

1. The slitting machine adopts an integrated base and a separate transmission structure, which can effectively improve the rigidity of the mechanical structure, while reducing the vibration amplitude of the slitting blade and improving the quality of the finished product. 2. The amplitude accuracy of the reference plane of the slitter axis is within 0.006mm, which can better extend the service life of the tool and the accuracy of the finished copper strip. 3. slitting machine adopts a hydraulic adjustable back pressure combination to stabilize the pressure, which automatically rises with the increase of the coil diameter, and always effectively presses the steel coil, which is beneficial to improve the cutting accuracy of the copper strip.

Detailed information:

1) Motor decoiler
Motor:	5.5kw
Capacity (Max):	8 Tons
Inner diameter	450-550mm
Coil Width (Max.):	1250mm

2) Coil transmission
Transport roller:	45# forge steel, quenched and chrome coated 0.05mm
Width of roller:	1500mm
Motor power:	3KW

3) slitting part
Disc slitting blade
Number of disc blade:	11groups
Material of disc blade:	Cr12mov
Material of main shaft:	steel and Rubber covered
Slitting speed:	20-30m/min
Motor power:	11KW
Scrape recoiler
Rotary according to slitting device

4) Recoil system with correcting device
Expanding:	hydraulic
Capacity:	5 Tons
Hydraulic power:	5.5KW
Motor power:	7.5KW
Inner diameter	450-550mm
Recoiler width	50-1250mm(adjustable)
Automatic recoil with correcting device

5) Electrical control cabinet
Electrical system:	PLC Panasonic 380V, 50HZ, 3 phase(also depend on customer demand)
Transducer	YASKAWA, made in Japan
Weight	10.5 tons
Production area	18.5x3.5x2.1meters

Guarantee

1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.

2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation

Payment terms

40% in advance as down payment

60% is paid before the shipment is processed

Delivery

FOB: Tianjin Xingang Port

The Delivery Time: 60 working days after the down payment is received.
