Name: Steel Sheet PLC Metal Plate Embossing Machine / Line Motor Driven
Brand: Cangzhou Famous International Trading Co., Ltd
SKU: pokład podłogi
Price: 26,500.00 USD
Availability: InStock

Do domu > produkty > Maszyna do formowania rolki podłogowej >

Steel Sheet PLC Metal Plate Embossing Machine / Line Motor Driven

motor driven metal plate embossing machine

plc metal plate embossing machine

plc metal sheet embossing machine

Miejsce pochodzenia:

Chiny kontynentalne

Nazwa handlowa:

FMS

Orzecznictwo:

ISO CE

Numer modelu:

pokład podłogi

Skontaktuj się z nami

Poproś o wycenę

Szczegóły produktu

Nazwa produktu:

Linia do wytłaczania blachy stalowej

Wymiar (L*W*H):

2100*2300*1100mm

Materiał rolkowy:

45 # stal chromowana

Kontrola elektryczna:

Sterownik częstotliwości Fuling AC

Waga:

1800 kg

Szybkość wytłaczania:

0-6 m na minutę

Podkreślić:

motor driven metal plate embossing machine

plc metal plate embossing machine

plc metal sheet embossing machine

Warunki płatności i wysyłki

Minimalne zamówienie

1 zestaw

Cena

negotiable

Szczegóły pakowania

40' FLC

Czas dostawy

30 dni roboczych

Zasady płatności

L/C, T/T, D/A, D/P

Możliwość Supply

20 zestawów miesięcznie

Powiązane produkty

Wideo

Cellular Composite Roofing Sheet Making Machine 3.0" Width 0.8-2.0MM Thickness

Uzyskaj najlepszą cenę

Wideo

13 Rows Roof Tile Roll Forming Machine For Tipo Teja Americana Normal Tile

Uzyskaj najlepszą cenę

Wideo

Decking Flooring Board 1.2mm Floor Tile Making Machine

Uzyskaj najlepszą cenę

Wideo

45 Steel Deck Roll Forming Machine Cold ±2mm Cutting Tolerance Excellent Performance

Uzyskaj najlepszą cenę

Skontaktuj się z nami

86-317-2016816

Skontaktuj się teraz

Opis produktu

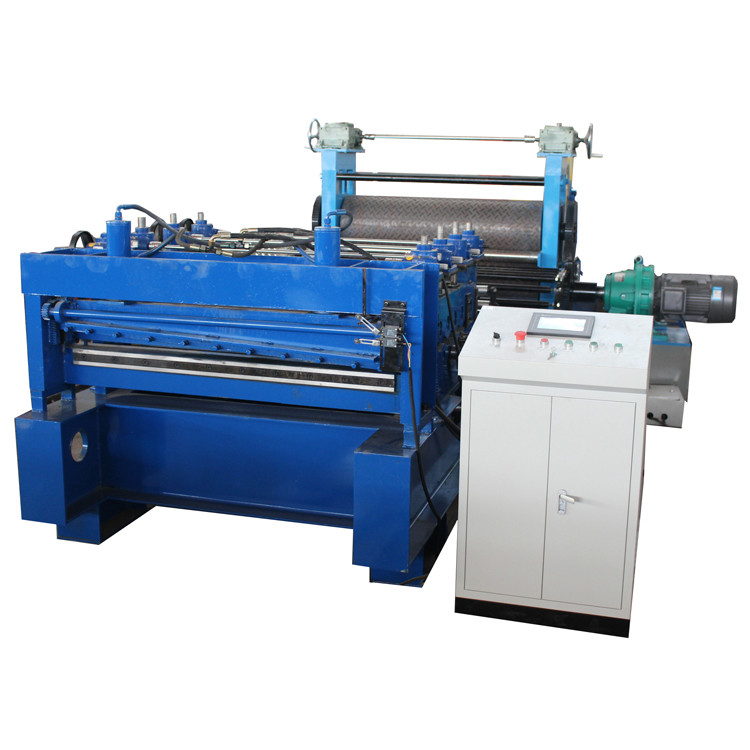

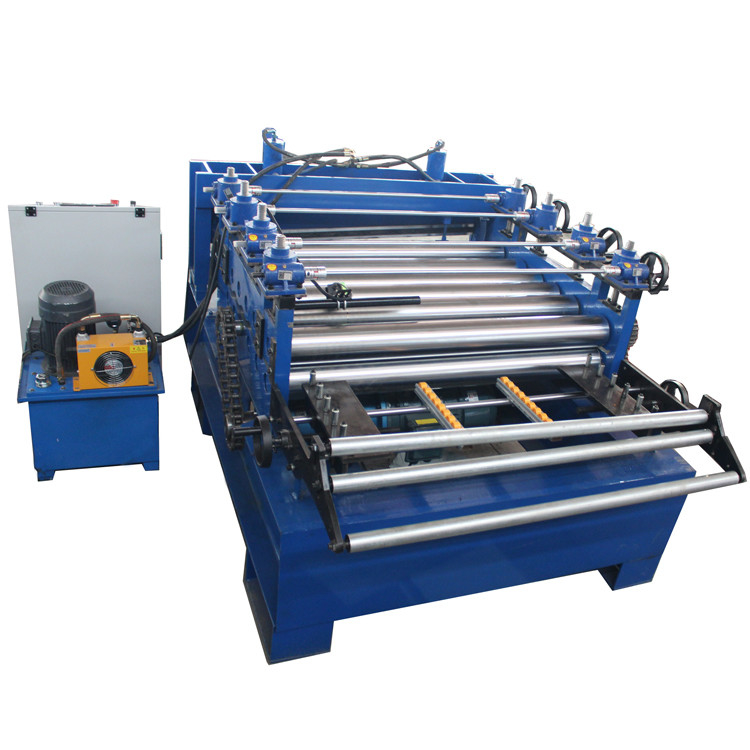

Steel Metal Sheet Metal Plate Embossing Machine Embossing Line

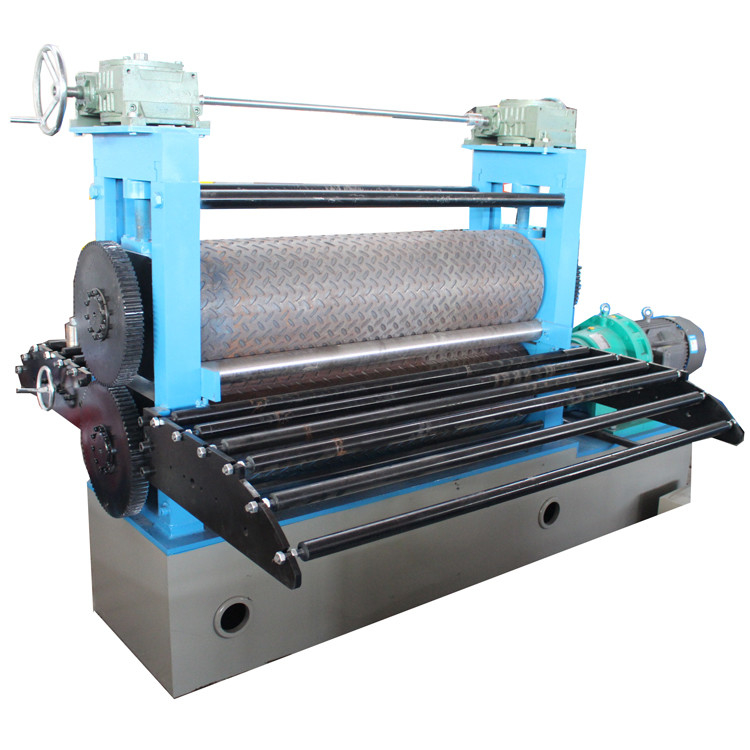

Steel Metal Sheet Metal Plate Embossing Machine Embossing Line.The embossing rollers steel machines fuctions main by the two big rollers, there are patterens on the rollers, so when then rollers rolling, and the sheet between the two sheet is running, there will appear the patterns on the sheet.

Finest-quality Steel Embossing roller floor embossing machinery can work manual by workers from the feeding and the embossing, and also be formed by the full automatic by PLC controling box.

The embossing profile can be customized as customer's request.

Welcome you send us the profile drawing.

Specification

Pattern	as customer required
Material Thickness and width	Thickness maximum 6mm,width maximum 1500mm
Material	Carbon steel,stainless steel,so on
Productivity	0-8m/min ,the speed can be adjusted
Technical Parameter	Embossed roller: 2 pcs Material:42CrMo,Solid forging Hardness:tempering and intermediated frequency quenching,roller surface hardness HRC63-64. Surface with hard chrome coating or boiled black. Motor:22kw Siemens Beide motor Cycloida speed reducer: BBWD7-87-22KW-4P Electric control:Fulling AC frequency driver Press-down:by screw rod driven by worm speed-reducing motor WPWKO 100 Machine structure:90-120mm solid steel plate Include: Input and output platform Safety cover Leveling Roller:90-120mmx 11pcs

Guarantee

1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.

2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation

Payment terms

40% in advance as down payment

60% is paid before the shipment is processed

Delivery

FOB: Tianjin Xingang Port

The Delivery Time: 30 days after the down payment is received.
