Highway Beam Roll Guardrail Forming Machine W Beam Crash Barrier Chain Drive

highway beam roll guardrail forming machine

chain drive guardrail forming machine

chain drive guardrail roll forming machine

Miejsce pochodzenia:

Chiny kontynentalne

Nazwa handlowa:

FMS

Orzecznictwo:

ISO CE

Skontaktuj się z nami

Poproś o wycenę

Szczegóły produktu

Nazwa produktu:

Maszyna do formowania rolek poręczy drogowych W Bariera zderzeniowa belki

Specyfikacja:

13,0*1,6*1,2 m

Stacje formujące:

Według rysunków profilu

Materiał rolek:

Obróbka hartownicza GCr15, Cr12, SKD11: HRC58-62 (opcjonalnie)

Woltaż:

380 V. 50 HZ. 3 fazy

Kontrola:

PLC

Sposób jazdy:

Napęd łańcuchowy, napęd skrzyni biegów (opcjonalnie)

Zapytanie o surowiec:

stal walcowana na zimno lub gorąco, stal ocynkowana, SS316L / stal miękka

Podkreślić:

highway beam roll guardrail forming machine

chain drive guardrail forming machine

chain drive guardrail roll forming machine

Warunki płatności i wysyłki

Minimalne zamówienie

1 zestaw

Cena

negotiable

Szczegóły pakowania

40' FLC

Czas dostawy

50 dni roboczych

Zasady płatności

L/C, T/T, D/A, D/P

Możliwość Supply

20 zestawów miesięcznie

Powiązane produkty

Wideo

350Mpa Yield Strength Highway Guardrail Roll Forming Machine With 400H Beam Structure

Uzyskaj najlepszą cenę

Wideo

Gcr15 Rollers Highway Guardrail Roll Forming Machine 350Mpa Yield Strength 380V 50Hz Power Supply

Uzyskaj najlepszą cenę

Wideo

GI Highway Guardrail Roll Forming Machine With Cutting Blade Material Cr12Mov And Roller Diameter 80mm

Uzyskaj najlepszą cenę

Wideo

GI Materials Highway Guardrail Roll Forming Machine With 380V 50Hz Power Supply And 350Mpa Yield Strength

Uzyskaj najlepszą cenę

Skontaktuj się z nami

86-317-2016816

Skontaktuj się teraz

Opis produktu

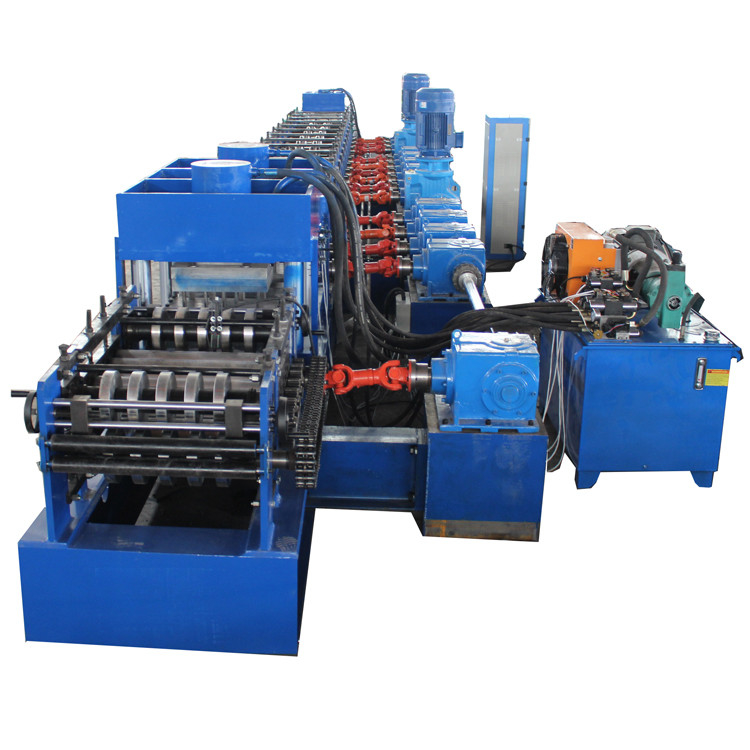

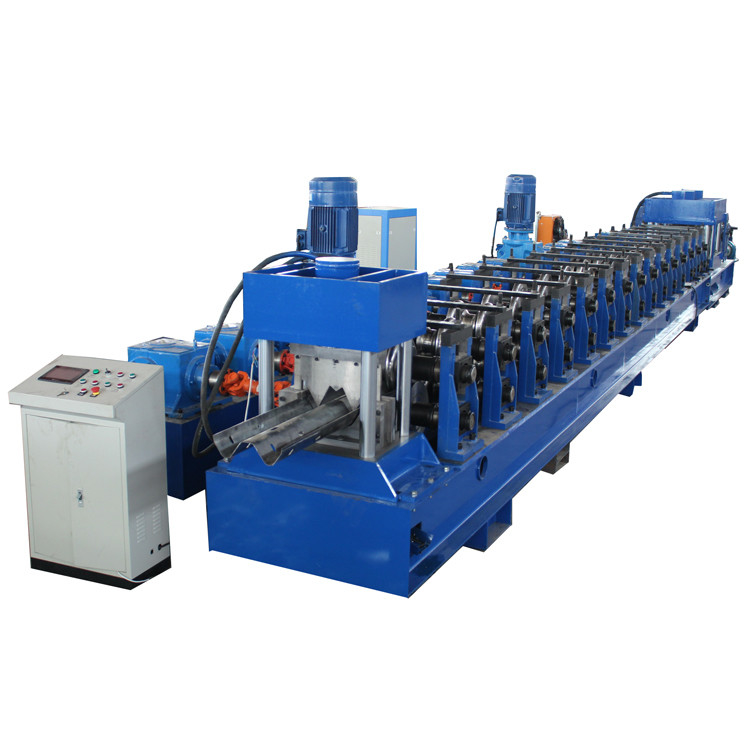

Highway Beam Guardrail Roll Forming Machine W Beam Crash Barrier

Highway Beam Guardrail Roll Forming Machine W Beam Crash Barrier

Processes: Hydraulic de-coiler-Leveling device--Punching station--Roll forming machine-PLC system-Hydraulic system-Cutter-Output table

highway road guardrail W shape bumpls road barrier making machine cold roll forming.Highway Guardrail plate is mainly used in national high-speed railway, highway road reconstruction projects and industrial hardware products and other industries. When subjected to external forces, the deformation of guardrail plate and column can absorb impact force to protect pedestrians and vehicles.Is a common road safety emergency protection facilities.

Specification

Highway Beam Guardrail Roll Forming Machine W Beam Crash Barrier
1	Raw material request	cold rolled or hot rolled steel,galvanized steel,SS316L/Mild Steel
2	Effective width	310mm
3	Roller station	17 rows forming 7 roller leveling
4	Thickness of feeding material	2.0-2.5 mm
5	Productivity	8-12m/min
6	Rollers' material	45# forging steel
7	Diameter of shaft	100mm
8	Cutting tool material:	GCr12 with quenched treatment 60-62°C
9	Weight	About 6.9T
10	Size	13.51.851.6mm
11	Voltage	380V 50Hz 3phases
12	Wall thickness of main forming machine	14mm steel plate
13	Main forming machine body	300 mm H steel
14	Total power	22+11 kw
15	Leveling power	2.2 kw

Guarantee

1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.

2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation

Payment terms

40% in advance as down payment

60% is paid before the shipment is processed

Delivery

FOB: Tianjin Xingang Port

The Delivery Time: 60 working days after the down payment is received.
