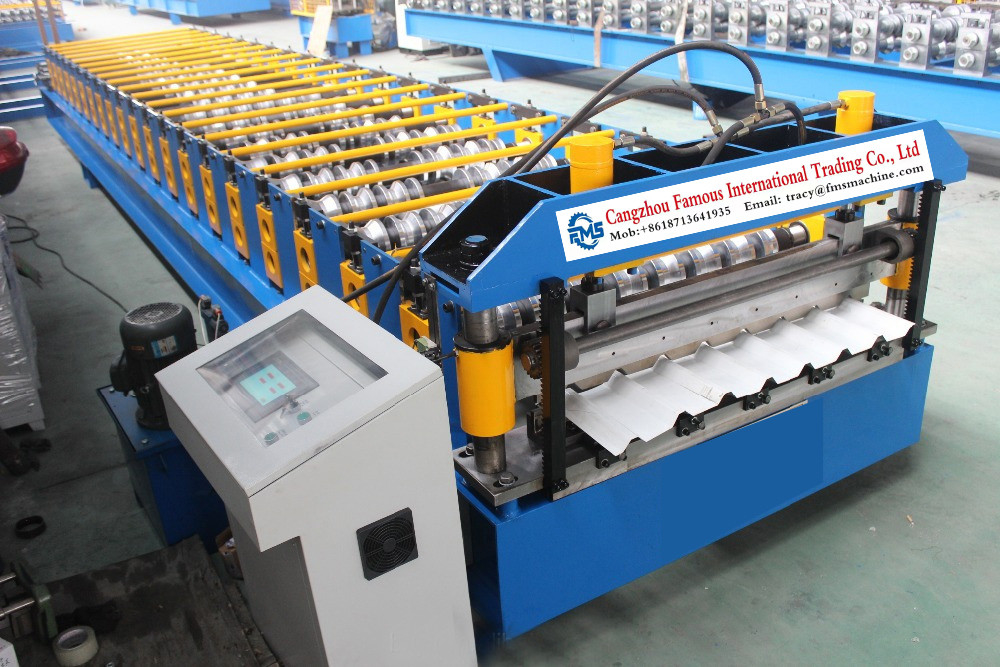

Name: GI Roof Tile Roll Forming Machine 8 Ribs 5 Ribs 6 Ribs
Brand: Cangzhou Famous International Trading Co., Ltd
Price: 16,000.00 USD
Availability: InStock

Do domu > produkty > Maszyna do formowania rolek dachówek >

GI Roof Tile Roll Forming Machine 8 Ribs 5 Ribs 6 Ribs

gi roof tile roll forming machine

8ribs roof tile roll forming machine

5 ribs roof tiles making machine

Miejsce pochodzenia:

CHINY

Nazwa handlowa:

cangzhou fms

Orzecznictwo:

CE,ISO

Skontaktuj się z nami

Poproś o wycenę

Szczegóły produktu

Nazwa produktu:

Filipiny Maszyna dekarska typu Rib 8 żeber 5 żeber 6 żeber

Zdolność produkcyjna:

7-15M/MIN

Zakres grubości:

0,3-0,8 mm

Szybkość pracy:

10-15m/min

Waga maszyny:

5000 kg

Materiał rolkowy:

380 V 50 Hz 3 fazy

Specyfikacja:

6,0 m * 1,5 m * 1,9 m

Szerokość karmienia:

1220 mm

Podkreślić:

gi roof tile roll forming machine

8ribs roof tile roll forming machine

5 ribs roof tiles making machine

Warunki płatności i wysyłki

Minimalne zamówienie

1 zestaw

Cena

negotiable

Szczegóły pakowania

Główna maszyna jest naga, skrzynka sterownicza komputera jest zapakowana w plastik.

Czas dostawy

30 dni

Zasady płatności

T/T, Western Union

Możliwość Supply

30 zestawów miesięcznie

Powiązane produkty

6m Automatic Stacker for Roof Sheet Roll Forming Machine

Uzyskaj najlepszą cenę

Wideo

the factory price for 0.3-0.8mm thickness Glazed Roof sheet forming machine

Uzyskaj najlepszą cenę

Wideo

2025 New Design for Glazed Roof Tile Roof Sheet Roll Forming Machine With 18 Rows

Uzyskaj najlepszą cenę

Wideo

4meter/Min Glazed Tile Roll Forming Machine With 18 Rows

Uzyskaj najlepszą cenę

Skontaktuj się z nami

86-317-2016816

Skontaktuj się teraz

Opis produktu

Philippines Ribtype Roofing Machine 8 Ribs 5 Ribs 6 Ribs

CANGZHOU FAMOUS INTERNATIONAL TRADING CO., LTD. is a professional manufacturer dedicated Color light steel construction, C, Z steel equipment and rolling, bending molding equipment enterprises, with the design and manufacture of various types of steel sheet thickness roll forming production line strength. Pressed tile color steel plate and C, Z purlin products are widely used in various types of large and small industrial plants, warehouses, residential and high-rise buildings.

Specification

GI or color steel
Thickness range	0.25-0.5mm
Main motor power	5.5kw, AC motor, motor inside of main machine (Brand: Guomao of China)
Machine Voltage, Frequency, Phase	380 V, 50 Hz, 3Phase
Roll station	about 18 stations (according the final design)

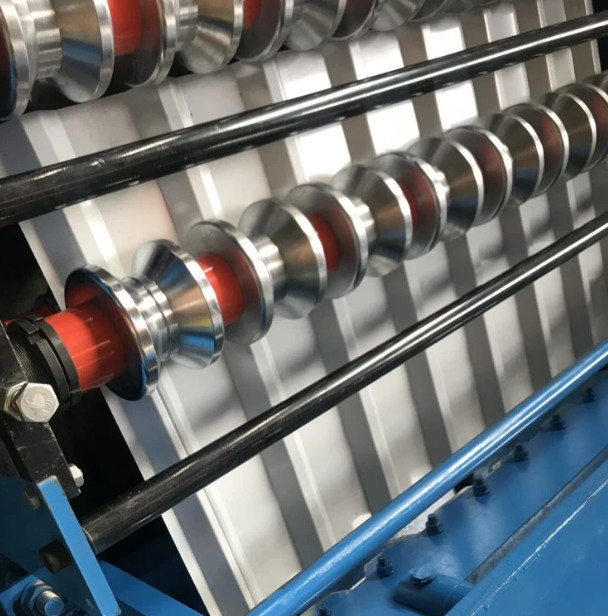

Roller material	SAE1045 chrome plated surface with chrome,CNC
Shaft diameter	￠70mm material: SAE1045 with quenching and tempering
Machine roll forming speed	0-15m/min (not include cutting time)
Transmission	by chain, one inch, single line

Guarantee

1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.

2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation

Payment terms

40% in advance as down payment

60% is paid before the shipment is processed

Delivery

FOB: Tianjin Xingang Port

The Delivery Time: 30 days after the down payment is received.
