Name: 5t Hydraulic Uncoiler Cable Tray Roll Forming Machine With Press Machine
Brand: Cangzhou Famous International Trading Co., Ltd
Price: 32,500.00 USD
Availability: InStock

Do domu > produkty > Maszyna do formowania płatwi CZ >

5t Hydraulic Uncoiler Cable Tray Roll Forming Machine With Press Machine

1.5mm cable tray roll forming machine

3phases cable tray roll forming machine

hydraulic uncoiler cable tray manufacturing machine

Miejsce pochodzenia:

CHINY

Nazwa handlowa:

FMS

Orzecznictwo:

CE,ISO

Skontaktuj się z nami

Poproś o wycenę

Szczegóły produktu

Nazwa produktu:

5T hydrauliczna rozwijarka korytka kablowego z prasą

Materiał rolkowy:

Gcr15, Quench HRC58-62 Platerowany chrom

Moc silnika Maima:

22 kW

Woltaż:

380 V 50 Hz 3 fazy

Hydrauliczny Moc cięcia:

7,5 kW

Materiał cięcia:

CR12 z obróbką hartującą

Automatyzacja:

Automatyczny

Materiał rolkowy:

45# kuta stal

Rozmiar maszyny Długość:

11000 mm* Szerokość 800 mm* Wysokość 1000 m

Podkreślić:

1.5mm cable tray roll forming machine

3phases cable tray roll forming machine

hydraulic uncoiler cable tray manufacturing machine

Warunki płatności i wysyłki

Minimalne zamówienie

1 zestaw

Cena

negotiable

Szczegóły pakowania

Główna maszyna jest naga, skrzynka sterownicza komputera jest zapakowana w plastik.

Czas dostawy

30 dni

Zasady płatności

T/T, Western Union, L/C

Możliwość Supply

20 zestawów miesięcznie

Powiązane produkty

Wideo

High Efficiency CZ Purlin Roll Forming Machine with 45# Steel Rollers and High Straightness for Construction

Uzyskaj najlepszą cenę

Wideo

Full Automatic CZ Purlin Roll Forming Machine with High Straight Level Crush Resistance and 1.5-3MM Thickness for Industrial Buildings

Uzyskaj najlepszą cenę

Wideo

CZ Purlin Roll Forming Machine with 18 Station Rollers, 380V/50HZ/3Phase Voltage and Cr12Mov Cutting Blade for High Efficiency

Uzyskaj najlepszą cenę

Wideo

CZ Purlin Roll Forming Machine with 700014001500mm Size 8-12m/min Forming Speed and 1.5-3.0mm Thickness for Galvanized Steel

Uzyskaj najlepszą cenę

Skontaktuj się z nami

86-317-2016816

Skontaktuj się teraz

Opis produktu

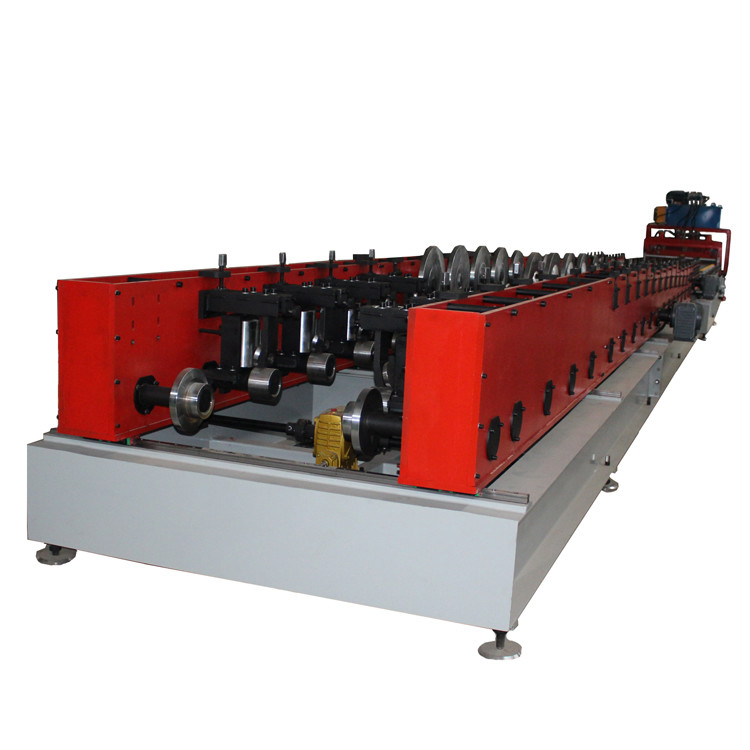

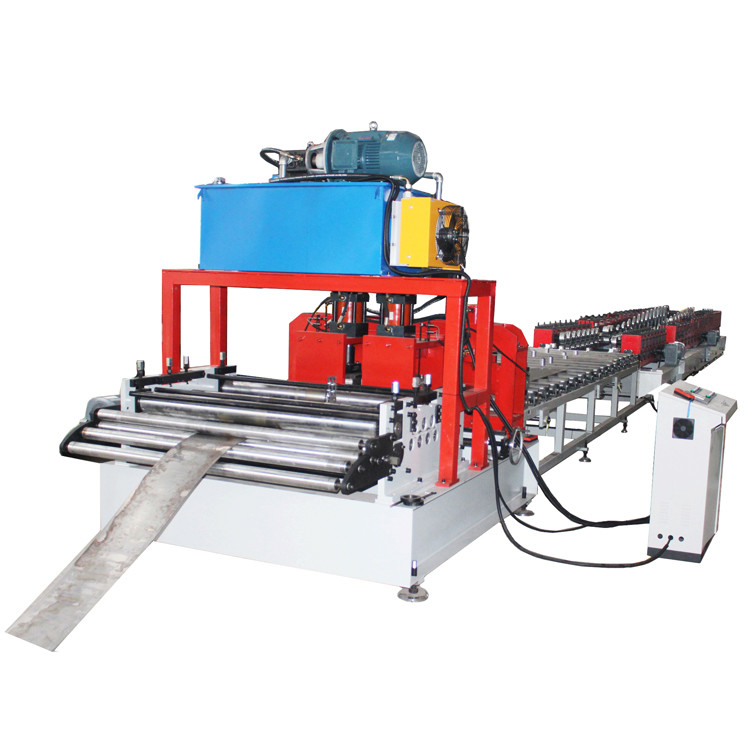

5T Hydraulic Uncoiler Cable Tray Roll Forming Machine With Press Machine

CANGZHOU FAMOUS INTERNATIONAL TRADING CO., LTD is a professional manufacturer designing and producing roll forming machines established in June 1995.

Products mainly include trapezoidal steel roof/wall panel machine, C&Z shape purline machine, high-way guardrail machine, sandwich panel production line, deck forming machine, C U L light keel machine, shutter slat door forming machine, cutting machine, downpipe machine, gutter machine, etc.

specifications

rticle No.	Item Name	Specification
1	Thickness	1.5mm-2.0mm
2	Hydraulic Station Power	7.5KW
3	Roller station	22 stations
4	Main Power with reducer	22KW
5	Rolling Speed	8-12m/min
6	Height of the profile	50-200mm
7	Tolerance	+-1.5mm
8	Weight	About 8 tons

Guarantee

1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.

2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation

Payment terms

40% in advance as down payment

60% is paid before the shipment is processed

Delivery

FOB: Tianjin Xingang Port

The Delivery Time: 30 days after the down payment is received.
