Name: 0.6-1.5mm Steel Ribbed Panel Floor Decking Cold Roll Forming Machine Equipment
Brand: Cangzhou Famous International Trading Co., Ltd
SKU: pokład podłogi
Price: 26,500.00 USD
Availability: InStock

Do domu > produkty > Maszyna do formowania rolki podłogowej >

0.6-1.5mm Steel Ribbed Panel Floor Decking Cold Roll Forming Machine Equipment

0.6mm floor deck roll forming machine

ribbed floor deck roll forming machine

1.5mm deck floor roll forming machine

Miejsce pochodzenia:

Chiny kontynentalne

Nazwa handlowa:

FMS

Orzecznictwo:

ISO CE

Numer modelu:

pokład podłogi

Skontaktuj się z nami

Poproś o wycenę

Szczegóły produktu

Nazwa produktu:

0,6-1,5 mm stalowy żebrowany panel podłogowy Sprzęt do formowania na zimno

Tworzenie prędkości:

10-12m/min

Stacje rolkowe:

28 stacji

Sposób jazdy:

Pojedynczy łańcuch 1,2 cala

Główna moc silnika:

22 kW

System cięcia:

Automatyczne cięcie hydrauliczne

Woltaż:

380 V 60 Hz lub dostosowane

Kolor:

Żądanie klienta

Podkreślić:

0.6mm floor deck roll forming machine

ribbed floor deck roll forming machine

1.5mm deck floor roll forming machine

Warunki płatności i wysyłki

Minimalne zamówienie

1 zestaw

Cena

negotiable

Szczegóły pakowania

40' FLC

Czas dostawy

30 dni roboczych

Zasady płatności

L/C, T/T, D/A, D/P

Możliwość Supply

20 zestawów miesięcznie

Powiązane produkty

Wideo

Cellular Composite Roofing Sheet Making Machine 3.0" Width 0.8-2.0MM Thickness

Uzyskaj najlepszą cenę

Wideo

13 Rows Roof Tile Roll Forming Machine For Tipo Teja Americana Normal Tile

Uzyskaj najlepszą cenę

Wideo

Decking Flooring Board 1.2mm Floor Tile Making Machine

Uzyskaj najlepszą cenę

Wideo

45 Steel Deck Roll Forming Machine Cold ±2mm Cutting Tolerance Excellent Performance

Uzyskaj najlepszą cenę

Skontaktuj się z nami

Skontaktuj się teraz

Opis produktu

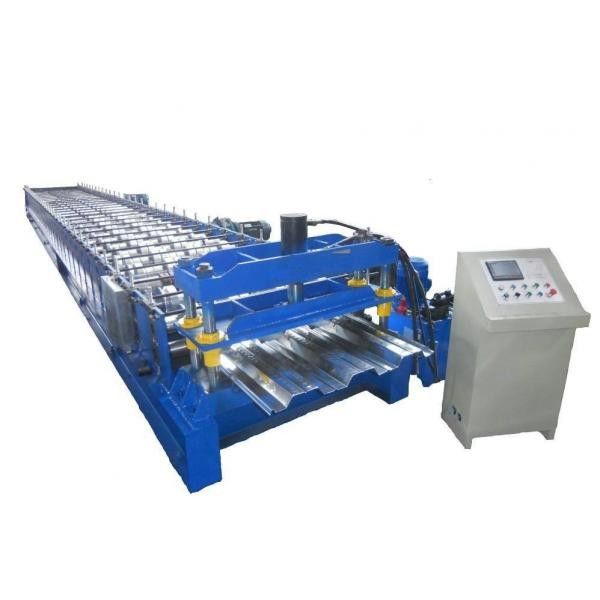

0.6-1.5mm Steel Ribbed Panel Floor Decking Cold Roll Forming Machine Equipment

0.6-1.5mm Steel Ribbed Panel Floor Decking Cold Roll Forming Machine Equipment .Steel floor deck sheet is rolled by steel floor decking roll forming machine,the finished product are of many features,such as simple shape,large wave height,high intensity and good adhesiveness when pouring the concrete together with the welded steel wire net on-site,in the high story building,it not only can save steel mould board,but also reduce the bearing of the floor: on basis of equal capacity,it reduces the steel amount of engineering useage,so that it saves cost of investment.

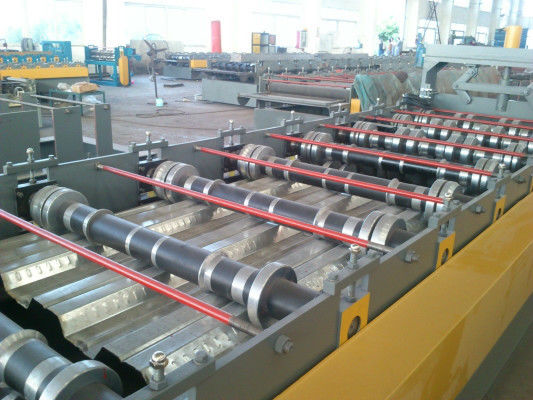

The steel floor deck roll foming machine consists of uncoiler and its base,infeed guides,fixed position driven forming stations,cutting device,hydraulic station,PLC control console and so on. We can design different kinds of profile and fitting for steel deck machine,as per customers’ requirements.

Specification

Item NO	Name	Description
1	Total power	Motor power-22kw with cycloidal reducer Hydraulic power-7.5kw
2	Rows of rollers	28 rows
3	Productivity	10-12m/min
4	Diameter of shaft	95mm
5	Voltage	380V 50Hz 3Phases
6	Machine body	H-model Steel
7	Shafts	45# steel quenching treatment
8	Rollers	Gcr15 forge steel, coated with chrome
9	Width of the raw material/ feeding width	1000mm
10	Effective width	688mm
11	Electrical Control System	Panasonic Japan
12	Cutting accuracy	1.5mm
13	Hydraulic Station Pressure	12Mpa

Guarantee

1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.

2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation

Payment terms

40% in advance as down payment

60% is paid before the shipment is processed

Delivery

FOB: Tianjin Xingang Port

The Delivery Time: 30 days after the down payment is received.
