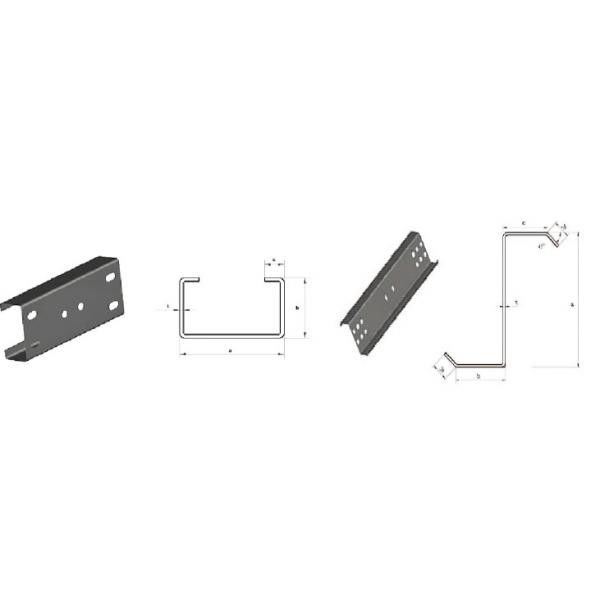

20m/Min Cz Purlin Roll Forming Machine Channel Quick Interchange

    1. This machine adopts the material shelf with a style of cantilever and opening umbrella to put material with no dynamic force. It can adjust the end of the screw mandrel of the material shelf to fit in with steel of different apertures. Easy to operating and its speed of putting materials and the main mounding machine is in phase.

    2. This machine adopts Seven Rolls level correction, roll arbors adopt high-quality alloyed steel 40Cr, made with a heat treatment, and it has a perfect effectiveness of level correction to defect band steel.

    3. The roller of the principal machine adopts the bearing steel GCr15 to strike, distressing to annealing, quenching, tempering, and Parkerizing, such heat treatment process. The surface hardness reached HRC60 degree. All the rollers are made by the numerical control lather, and this guarantees the accuracy of the roller’s sizes and prolongs its working life.

    4. The set of machine change the specification by using semicircle retaining ring to adjust. It is convenient for the workers to operate them.

    5. Punching structure is of a high-degree automatically system, under the control of computers which have been set beforehand, it can finish wherever technical punching with ease. What it adopts is professional model material Cr12 and cooling model, it will stick to the automatic cooling techniques.

    6. Shear gauge is the last process, which can cut any sizes what you want immediately and accurately under the control of the computer. It consists of fluid drive, confectioning, sheared edge and blade adapter. The sheared edge adopts cold-punching mould steel which are processed by the process flow strictly. The results of shearing have a good shape of the head face, low costs, high precision of the sizes, etc. It is the most ideal way of shearing of all the forms.

Specification

Guarantee

   1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.

   2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation

Payment terms

   40% in advance as down payment

   60% is paid before the shipment is processed

Delivery

   FOB: Tianjin Xingang Port

   The Delivery Time: 30 days after the down payment is received.
