3.0mm Automatic Cz Purlin Roll Forming Machine Quick Change

cz purlin roll forming machine automatic

3.0mm cz purlin roll forming machine

quick change cz purlin machine

Miejsce pochodzenia:

CHINY

Nazwa handlowa:

FMS

Orzecznictwo:

CE,ISO

Skontaktuj się z nami

Poproś o wycenę

Szczegóły produktu

Nazwa produktu:

Automatyczna maszyna do formowania rolek Cz płatwi Szybka wymiana

Podstawowe komponenty:

PLC, silnik, łożysko, skrzynia biegów, silnik, zbiornik ciśnieniowy, G

Ciśnienie pracy:

16 MPa

Woltaż:

380 V 50 Hz 3 fazy

Wymiar (L*W*H):

6000*1200*1300mm

Waga:

Automatyzacja:

Automatyczny

Zdolność produkcyjna:

16-20 m/min

Grubość materiału:

1,5-3,0 mm

Podkreślić:

cz purlin roll forming machine automatic

3.0mm cz purlin roll forming machine

quick change cz purlin machine

Warunki płatności i wysyłki

Minimalne zamówienie

1 zestaw

Cena

negotiable

Szczegóły pakowania

Główna maszyna jest naga, skrzynka sterownicza komputera jest zapakowana w plastik.

Czas dostawy

30 dni

Zasady płatności

T/T, Western Union, L/C

Możliwość Supply

20 zestawów miesięcznie

Powiązane produkty

Wideo

High Efficiency CZ Purlin Roll Forming Machine with 45# Steel Rollers and High Straightness for Construction

Uzyskaj najlepszą cenę

Wideo

Full Automatic CZ Purlin Roll Forming Machine with High Straight Level Crush Resistance and 1.5-3MM Thickness for Industrial Buildings

Uzyskaj najlepszą cenę

Wideo

CZ Purlin Roll Forming Machine with 18 Station Rollers, 380V/50HZ/3Phase Voltage and Cr12Mov Cutting Blade for High Efficiency

Uzyskaj najlepszą cenę

Wideo

CZ Purlin Roll Forming Machine with 700014001500mm Size 8-12m/min Forming Speed and 1.5-3.0mm Thickness for Galvanized Steel

Uzyskaj najlepszą cenę

Skontaktuj się z nami

86-317-2016816

Skontaktuj się teraz

Opis produktu

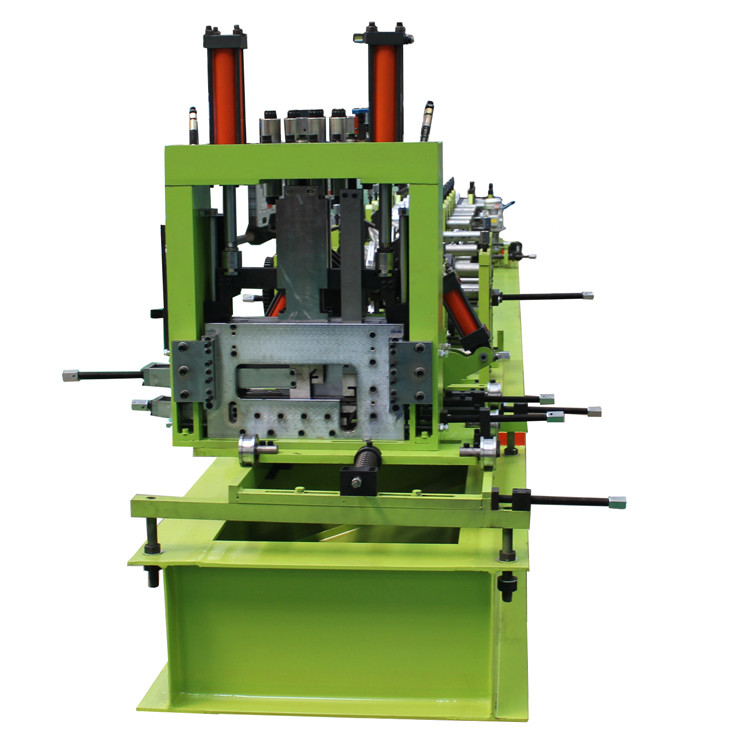

Automatic Cz Purlin Roll Forming Machine Quick Change

Automatic Cz Purlin Roll Forming Machine Quick Change,

Cutting Way:Hydraulic Cutting.

Meterial of the cutting:Cr12Mov with quenched treatment. It can decide cut panel dimension acoording to the hydraulic drive and Plc computer control system.

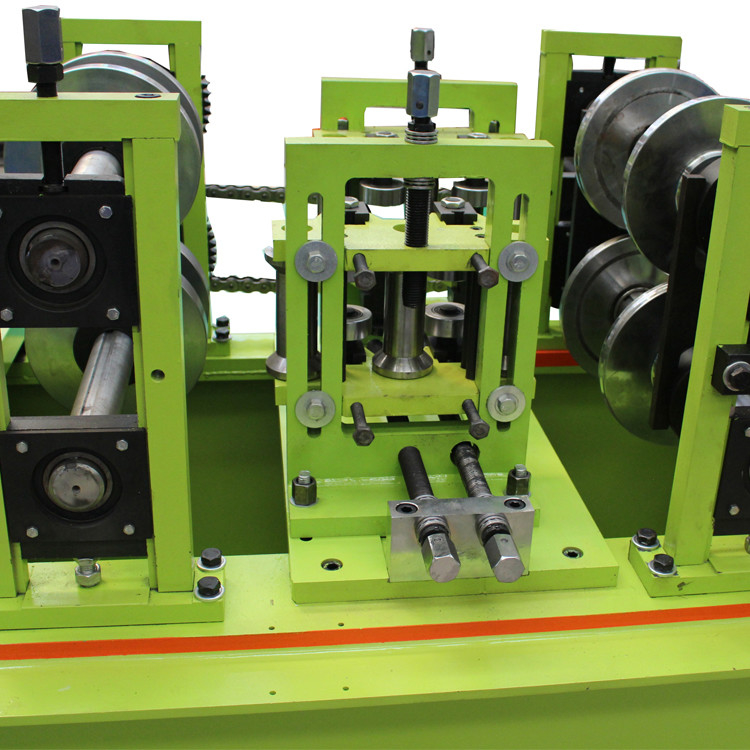

Roller System:Meterial of the roller:Gcr15 steel. Roller station:16 rows Thickness of feeding meaterial:1.2-3.0mm.

PLC Control Cabinet:Panasonic PLC is adopted to organize all actions of the machine. The length of workpiece is adjustable according to the setting of on the PLC. Two optional control modes: automatic and manual. By automatic mode, the machine can realize fully automatic working.

specifications

Raw material	Steel Coil gi ppgi
Control system	PLC(imported Brand)
Shafter material	40Cr
Cutting type	Automatic Hydraulic Cutting
Cutting blade material	cr12 with quenched treatment
Color of Machine	Blue or Customer request
Roller Station	14 Stations
Forming Speed	16-20m/min

Guarantee

1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.

2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation

Payment terms

40% in advance as down payment

60% is paid before the shipment is processed

Delivery

FOB: Tianjin Xingang Port

The Delivery Time: 30 days after the down payment is received.
