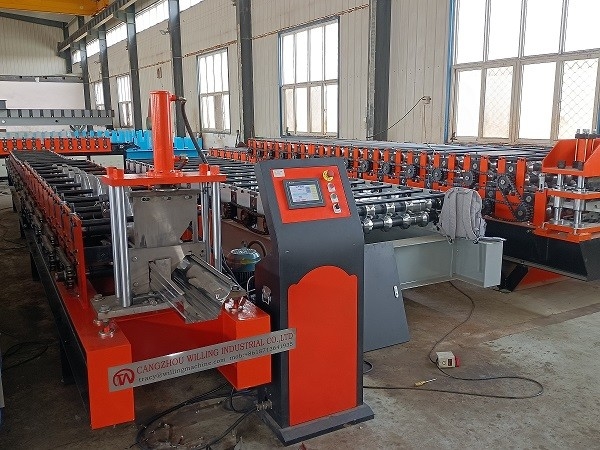

Fully Automatic Rain Gutter Roll Forming Machine Drainage System Production Line
Water gutter roll forming machine popular sell in many countries, size can be coustomized according to your request, common thickness between 0.7-1.5 mm, Common speed 10-20 m/min. we sell lots of such machine to Iraq, Egypt, India, Chile, Zambia, etc.
Rain Gutter Roll Forming Machine is composed of uncoiler, the feed leading table, the main machine, the formation cutting device, hydraulic system, control system and the product bracket.
| No. |
Item |
Description |
| 1 |
Coil |
Galvalume, Galvanized |
| 2 |
Raw Material Thickness |
0.7 mm - 1.5 mm |
| 3 |
Working Speed |
10-20 m/min |
| 4 |
Roller Station |
18 Stations |
| 5 |
Dimension (L*W*H)
|
8000 mm*800 mm*1200 mm |
| 6 |
Machine Weight |
7000 KG |
| 7 |

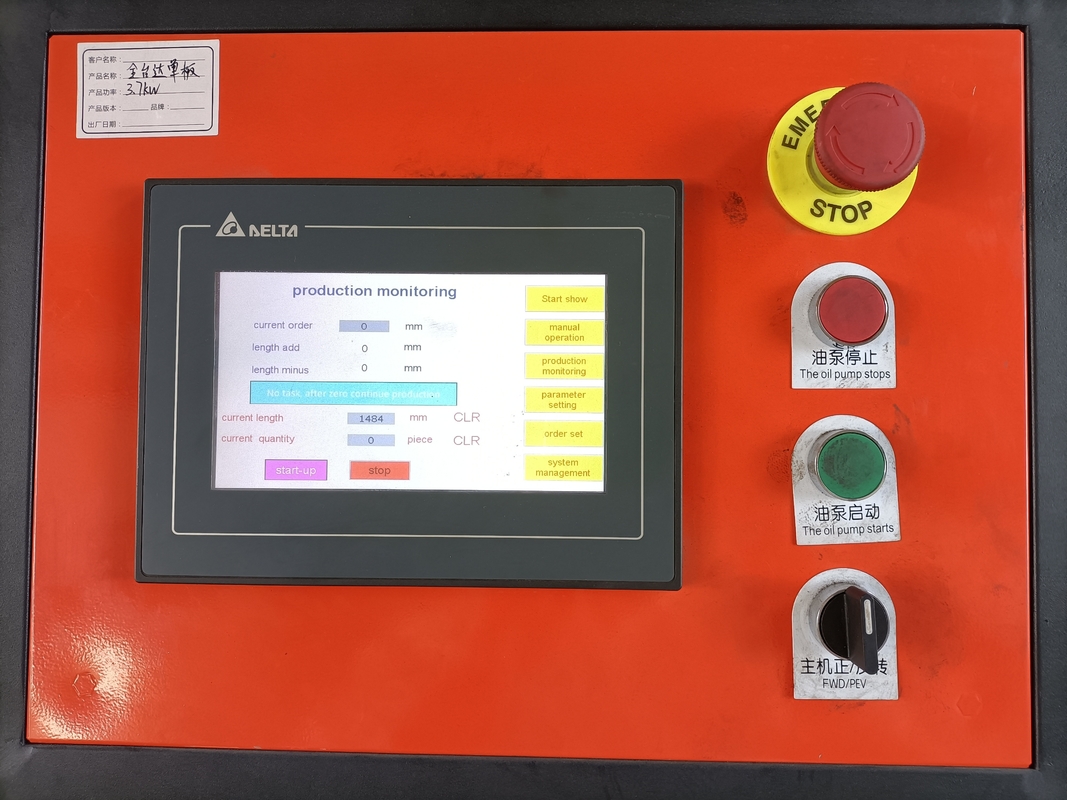

Electrical Control System
|
PLC (can be customized)
|
| 8 |
Drive Motor Power
|
4.5 KW |
| 9 |
Hydraulic Station Power
|
4 KW |
| 10 |
Power Supply
|
380V, 60HZ, 3 PHASES(can be customized)
|
| 11 |
Cutting Accuracy
|
± 2 mm
|
| 12 |
Driving Mode
|
Single Chain 1 inch
|
| 13 |
Material of Shaft
|
50 mm 45#steel forged
|
| 14 |
Material of Roller |
45# Steel Finish Machining, Plated Hard
|
Advantage
For about 10 years, we have been exporting high-standard roll forming machines.
We have a mature foreign trade team, senior engineers, and experienced workers to meet your needs.
We have machines in more than 90 countries and regions, and we maintain good business relationships.
For the life of any machine, we offer a one-year free warranty and free service.
Application
Our Rain Gutter Sheet Forming Machine can produce various of steel roof and wall panel, it is a new building materials, the products are widely used as the roof and wall of factory, warehouse, garage, gymnasium, exhibition center, cinema, theatre, etc. It has many advantages, such as easy installation, short building period, beauty, light weight but high strength.
