Name: Size Changeable Profile Cable Tray Roll Forming Machine Plc Control
Brand: Cangzhou Famous International Trading Co., Ltd
SKU: Taca kablowa
Price: 32,500.00 USD
Availability: InStock

Do domu > produkty > Maszyna do formowania płatwi CZ >

Size Changeable Profile Cable Tray Roll Forming Machine Plc Control

changeable cable tray roll forming machine

profile cable tray roll forming machine

plc control cable tray making machine

Miejsce pochodzenia:

CHINY

Nazwa handlowa:

FMS

Orzecznictwo:

Numer modelu:

Taca kablowa

Skontaktuj się z nami

Poproś o wycenę

Szczegóły produktu

Nazwa produktu:

Rozmiar zmienny profil korytka kablowego Maszyna do formowania rolek Sterowanie PLC

Szerokość profilu:

90-600mm

Wysokość profilu:

50mm-100mm

Woltaż:

380 V 50 Hz 3 fazy zgodnie z żądaniem

Główny silnik:

7,5 kW

Grubość materiału:

1.0-2,0 mm Galwanizowane cewki

Automatyzacja:

Automatyczny

Materiał rolkowy:

45# kuta stal

Rozmiar maszyny Długość:

11000 mm* Szerokość 800 mm* Wysokość 1000 m

Podkreślić:

changeable cable tray roll forming machine

profile cable tray roll forming machine

plc control cable tray making machine

Warunki płatności i wysyłki

Minimalne zamówienie

1 zestaw

Cena

negotiable

Szczegóły pakowania

Główna maszyna jest naga, skrzynka sterownicza komputera jest zapakowana w plastik.

Czas dostawy

30 dni

Zasady płatności

T/T, Western Union, L/C

Możliwość Supply

20 zestawów miesięcznie

Powiązane produkty

Wideo

High Efficiency CZ Purlin Roll Forming Machine with 45# Steel Rollers and High Straightness for Construction

Uzyskaj najlepszą cenę

Wideo

Full Automatic CZ Purlin Roll Forming Machine with High Straight Level Crush Resistance and 1.5-3MM Thickness for Industrial Buildings

Uzyskaj najlepszą cenę

Wideo

CZ Purlin Roll Forming Machine with 18 Station Rollers, 380V/50HZ/3Phase Voltage and Cr12Mov Cutting Blade for High Efficiency

Uzyskaj najlepszą cenę

Wideo

CZ Purlin Roll Forming Machine with 700014001500mm Size 8-12m/min Forming Speed and 1.5-3.0mm Thickness for Galvanized Steel

Uzyskaj najlepszą cenę

Skontaktuj się z nami

86-317-2016816

Skontaktuj się teraz

Opis produktu

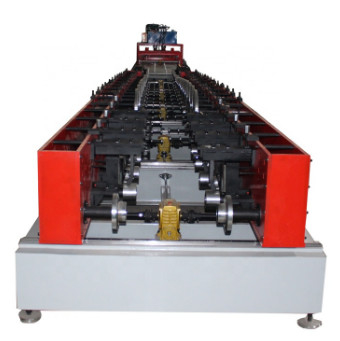

Size Changeable Profile Cable Tray Roll Forming Machine PLC Control

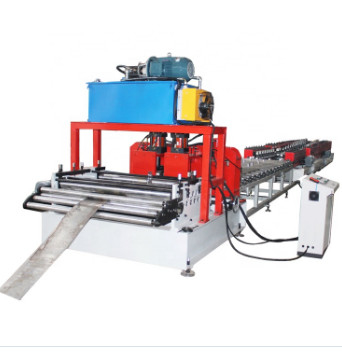

This cable ladder roll forming machine adopt coil production material to form CT100-600 cable ladder Profiles through 5 Ton hydraulic decoiler, Leveling, Servo feeding, Hydraulic Pre-Punching Machine, Main cable ladder roll forming part, Post hydraulic cutting, hydraulic station, PLC control system and Non-power type support table.The whole machine adopt PLC control, AC speed control by frequency inverter technology, to realize continuous auto production, which is the best desired machinery in steel structure and metal cold roll forming machinery industry.Working Speed: about 0-15 m/min ( excluding punching & cutting time);

specifications

Material Spec	colored steel sheet, galvanized steel sheet
main motor power	7.5 kw
forming speed	10-15m/min
Diameter of roller	70 millimeter
Thickness of Coil Sheet	0.3-0.8 millimeter
the width of the colored sheet	as per requested
the effective of steel sheet	as per requested.
Hydraulic station pressure	3 kw
Hydraulic pressure	10 - 12Mpa
Total Weight	about 5500 kg
Voltage	380 volt/3PH as per requested
Roll stand	22 Roller station
PLC	overseas Brand
Dimension	11.4m1.3m1.2m
Roller material	#45 steel
Frequency converter	containing
Computer operating screen	touch screen
Material of cutter	Cr12

Application

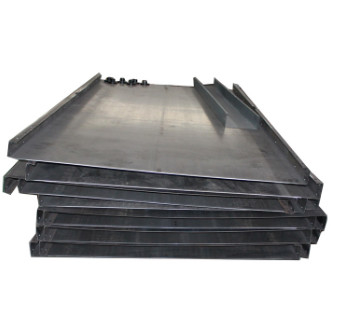

Cable tray is used to support and protect when wire electricity, electric power, communication control and instrumentation cable.
FMS compose this machinery as a cassette replacement type or automatic width control type in accordance with product.
And we supply equipment that is suitably designed for the use of product which can be formed after perforating a partition and other panels.

Payment terms and Delivery

40% in advance as down payment
60% is paid before the shipment is processed
FOB: Tianjin Xingang Port
The Delivery Time: 30 days after the down payment is received.
