Name: Drywall Omega Profile Light Gauge Steel Roll Forming Machine For Galvanized Plate
Brand: Cangzhou Famous International Trading Co., Ltd
SKU: Stój i śledź
Price: 40,500.00 USD
Availability: InStock

Do domu > produkty > Maszyna do tworzenia rolki z kołkami i ścieżkami >

Drywall Omega Profile Light Gauge Steel Roll Forming Machine For Galvanized Plate

drywall light gauge steel roll forming machine

galvanized light gauge steel roll forming machine

drywall omega profile roll forming machine

Miejsce pochodzenia:

Chiny kontynentalne

Nazwa handlowa:

CANGZHOU FMS

Orzecznictwo:

ISO CE

Numer modelu:

Stój i śledź

Skontaktuj się z nami

Poproś o wycenę

Szczegóły produktu

Nazwa produktu:

Użyj do maszyny do formowania rolek stalowych Omega Profile Light Gauge

Wymiar (L*W*H):

6500*1300*1100

Typ płytek:

Stal galwanizowana

Używać:

Sufity z płyt kartonowo-gipsowych

Zdolność produkcyjna:

8-12m/min

Waga:

3000 kg

Woltaż:

380 V 50 Hz 3 fazy

System sterowania:

PCL

Podkreślić:

drywall light gauge steel roll forming machine

galvanized light gauge steel roll forming machine

drywall omega profile roll forming machine

Warunki płatności i wysyłki

Minimalne zamówienie

1 zestaw

Cena

negotiable

Szczegóły pakowania

20' FLC

Czas dostawy

30 dni roboczych

Zasady płatności

L/C, T/T, D/A, D/P

Możliwość Supply

20 zestawów miesięcznie

Powiązane produkty

Wideo

Omega Profile Light Keel Steel Framing Top Hat Channel Roll Forming Machine

Uzyskaj najlepszą cenę

C89 Lgs Light Gauge Steel Roll Forming Machine For Villa House

Uzyskaj najlepszą cenę

Roller Fixer Guide Column CU stud for Long-lasting Roofing

Uzyskaj najlepszą cenę

Guide Column Roller Fixer Stud And Track Roll Forming Machine with 7.5KW Hydraulic Station Power and Plc S7-200 Control

Uzyskaj najlepszą cenę

Skontaktuj się z nami

86-317-2016816

Skontaktuj się teraz

Opis produktu

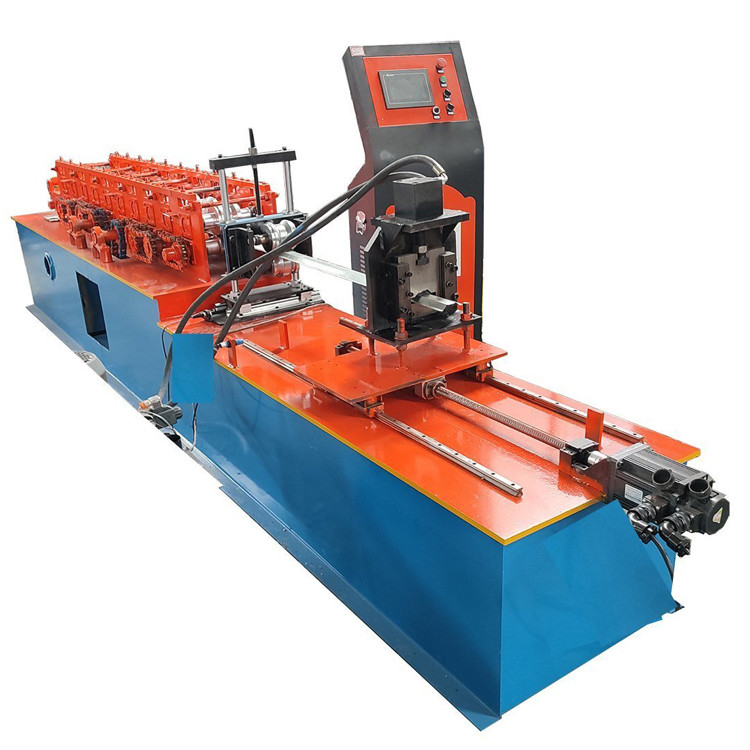

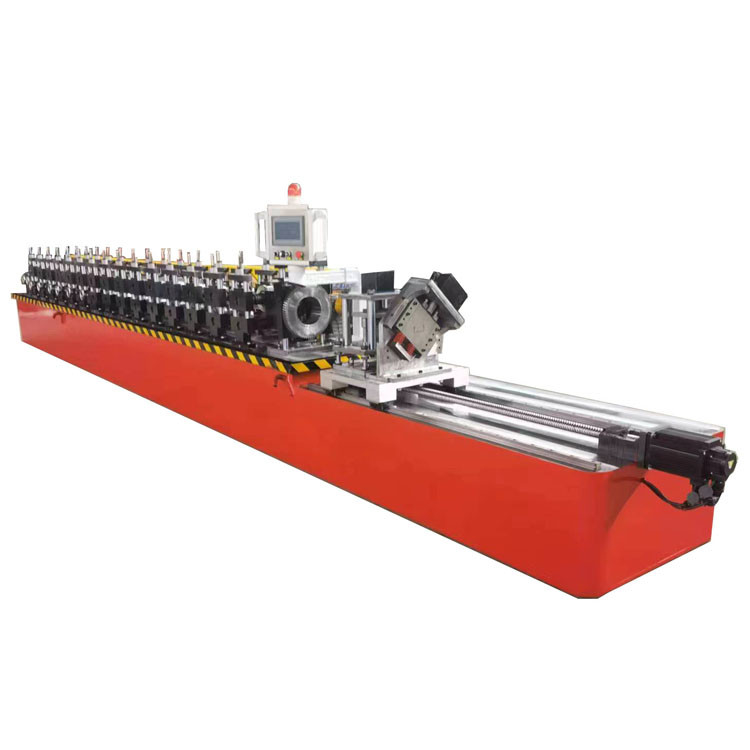

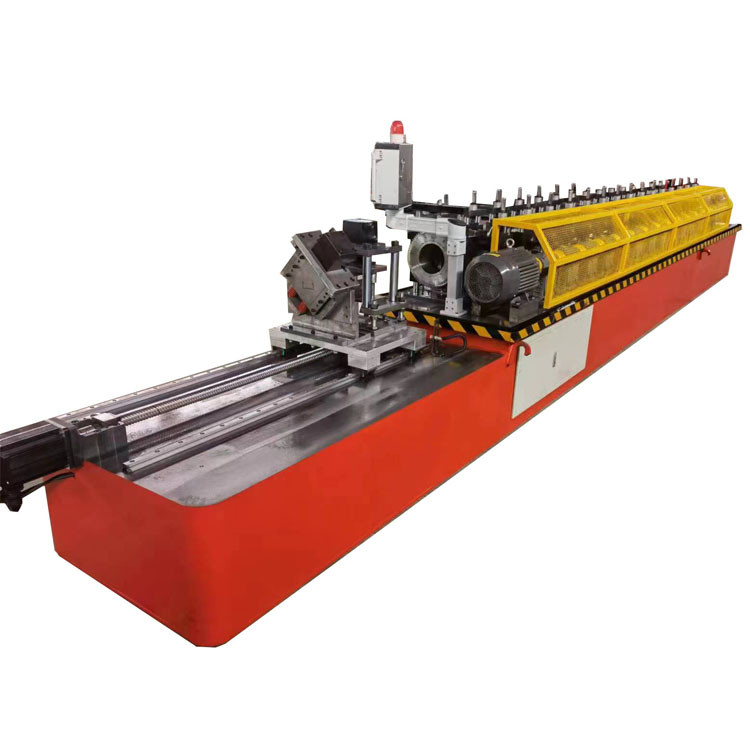

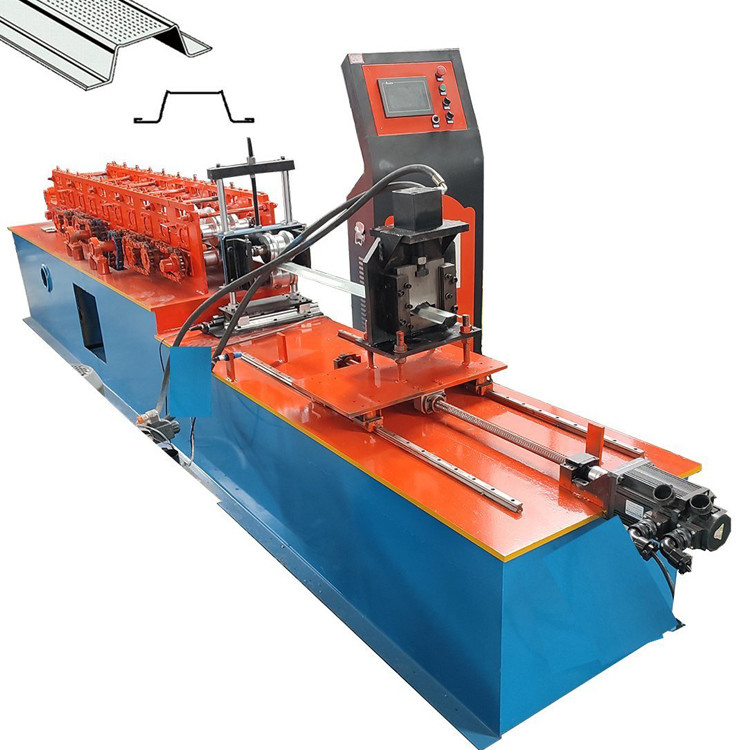

Use for Drywall Omega Profile Light Gauge Steel roll Forming Machine

Omega profile roll forming machine popular sell in many countries. Product thickness common between 0.3-1.2 mm, we had export lots of such machine to Iraq, Egypt, UAE, Chile, Zambia, etc. As a result of the stable operation of the machine, the customers are well satisfied with the production speed

Specification

1	Plate Material	Galvanized plate
	Thickness	0.3-1.2mm
	Wall thickness of the main forming machine	25mm steel plate
2	Reducer	3kw which works stably and no noise.
2	Rollers	11 steps
3	Diameter of active shaft	48mm, 45# steel
	Hydraulic pump power	3KW
	Woking Speed	8-12m/min
	Material of shaft	45# steel with chrome 0.05mm
4	Operate	Automatic Hydraulic / Electric type
4	Blade material	Cr12MOV
5	Pump motor for cutter	4KW
	Main Motor	5.5KW
	Voltage	380V 50Hz 3 Phase
6	Electric Box	PLC control system , Inverter
6	Language	English / Chinese

Application
To form rigid suspended ceiling framework, Omega channel clips are used with U-channel, hanger wire, and Omega channel clips on masonry walls and ceiling assemblies.

Advantage

The material of the light steel keel itself is relatively light. The gravity of the product made by this material is relatively light, so it is more suitable for it on the ceiling, and its fire resistance is also very high. Fire resistance is high.
The construction efficiency of light steel keel is also relatively high. The construction method it uses is relatively simple, so the efficiency is very high, so its construction time is relatively short, and its structure is very safe, that is, it is its structure, that is, it is its structure, that is, it is its structure. The solidity is very high, so it is relatively high in terms of safety
