Name: Color Steel Slitting Cutting Machine 0.2 - 3.0mm With Working Speed 20-30m/Min
Brand: Cangzhou Famous International Trading Co., Ltd
SKU: rozcinanie
Price: 26,500.00 USD
Availability: InStock

Do domu > produkty > Cięcie na długość i linię cięcia >

Color Steel Slitting Cutting Machine 0.2 - 3.0mm With Working Speed 20-30m/Min

20m/min sheet coil slitting machine

30m/min sheet coil slitting machine

3.0mm thickness slitting cutter machine

Miejsce pochodzenia:

Chiny kontynentalne

Nazwa handlowa:

FMS

Orzecznictwo:

ISO, CE

Numer modelu:

rozcinanie

Skontaktuj się z nami

Poproś o wycenę

Szczegóły produktu

Nazwa produktu:

Linia do cięcia wzdłużnego stali kolorowej 0,2 - 3,0 mm z prędkością roboczą 20-30 m / min

Materiał do cięcia:

Galvalume, ocynkowane

Grubość materiału:

0,2 mm -3 mm

Prędkość pracy:

8 m/min - 30 m/min (można dostosować)

Waga cewki:

Można dostosować

Cięcie szt:

2 - 30szt

Waga maszyny:

13000 kg

Precyzja szerokości cięcia:

± 0,01 - ± 0,05 mm

Podkreślić:

20m/min sheet coil slitting machine

30m/min sheet coil slitting machine

3.0mm thickness slitting cutter machine

Warunki płatności i wysyłki

Minimalne zamówienie

1 zestaw linii produkcyjnej

Cena

negotiable

Szczegóły pakowania

2 szt. 40' FLC

Czas dostawy

60 dni roboczych

Zasady płatności

L/C, D/A, D/P, T/T

Możliwość Supply

5 zestawów na 60 dni

Powiązane produkty

Wideo

steel coile 40m/min High Speed Slitting Line Machine With Hydraulic Uncoiler And Recoiler

Uzyskaj najlepszą cenę

Wideo

40m/min High Speed Slitter Slitting Line Machine With Hydraulic Uncoiler And Recoiler

Uzyskaj najlepszą cenę

Wideo

380v 50hz High Speed Steel Coil Slitter Slitting Producttion Line Machine With Hydraulic Uncoiler And Recoiler

Uzyskaj najlepszą cenę

Wideo

High Speed Slitter Slitting Line Machine With Hydraulic Uncoiler And Recoiler

Uzyskaj najlepszą cenę

Skontaktuj się z nami

86-317-2016816

Skontaktuj się teraz

Opis produktu

Color Steel Slitting Cutting Machine Line 0.2 - 3.0mm With Working Speed 20-30m/Min

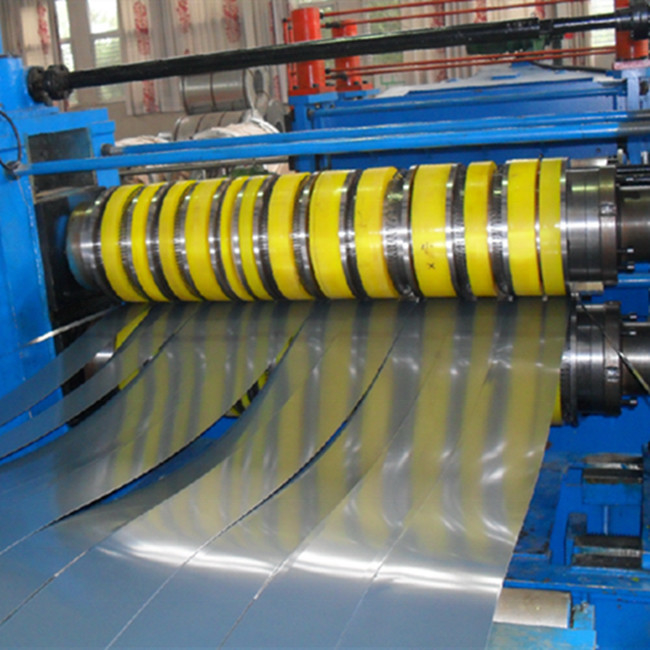

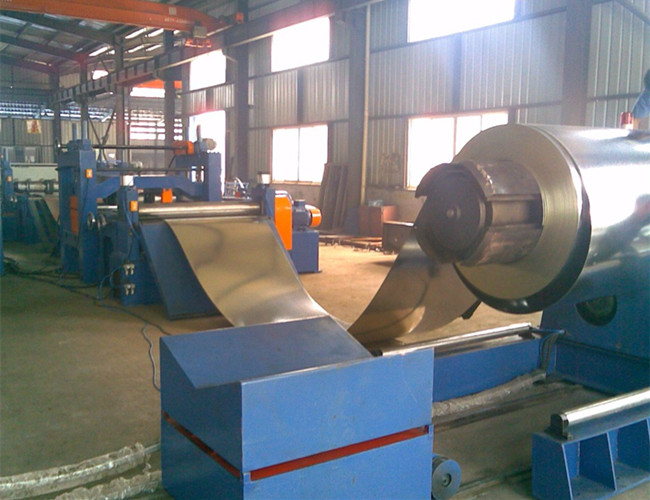

A slitting production line consists of three main components: a decoiler, a slitter, and a recoiler. Material is re-wound in the recoiler's slit covering as it passes through the nip between the two circular cutting wheels (one above and one below). To determine the proper components, shank size, tool kit, horsepower, and tension for the material to be cut, equipment suppliers and end users must collaborate.

Specifications

No.

Item

Description

1 Main Specification	1 Raw Material	Galvanized, Aluminum,Color steel, Handness 235MPa
	2 Raw Material Thickness	0.2 mm - 3.0 mm
	3 Raw Material Width	600 mm - 1600 mm
	4 Tape Inner Diameter	φ 480 mm - φ 550 mm
	5 TapeOuter Diameter	φ 1600 mm
	6 Coil Weight	5 tons 7 tons 10 tons
	7 /Slitting No.	Max 30 pcs
	8 The Highest Slitting LineSpeed	8 m/min - 35 m/min
	9 Minimum Cutting Line Width	30 mm
	10 Cutting Width Precision	± 0.01 - ± 0.05 mm
	11. Rated Operational Voltage	380 V, 3 Phase, 60 Hz as per requested
	12. Total Weight	14000 KG
	12. Working Space(L*W)	20000 mm*6000 mm

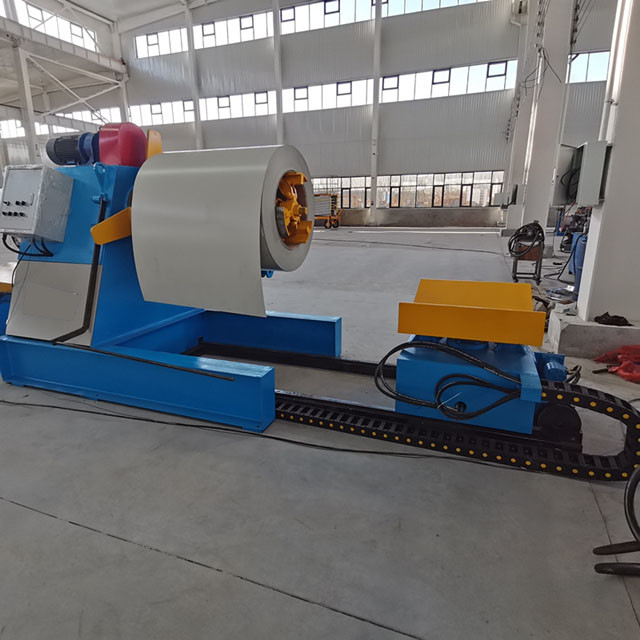

2 Decoiler Machine Specification	1 Tape Outer Diameter	Max φ 1600 mm
	2 Tape Width	600 mm - 1600 mm
	3 Tape Inner Diameter	φ 480 mm - φ 530 mm
	4 Coil Weight	5 /7/10 tons
	5 Max Working Speed	8 m/min - 30 m/min
	6 Tape Tight Range	φ 480 mm - φ 530 mm
	7 Shaft Diameter	φ180 mm
	8 Roller Effective Length	1600 mm
	9 Drive Moter Power	5 KW
	10. Loading Car Diameter	φ 700 mm - φ 1500 mm
	11 Loading Car Weight	5 /7/ 10 tons
	12 Car Speed	About 4 m/min
4 Slitting Machine Specification	1 Cutting Width	Max φ 1600 mm
	2 Cutting Thickness	0.2 mm - 2.0 mm
	3 Cutter Shaft Diameter	φ180 mm
	4 Cutter Shaft Material	Cr 40
	5.Cutter Size	200 mm300 mm15 mm
	6 Cutter Material	Cr12MoV
	7 Cutter Spacer Size	180 mm240 mm15 mm
	8 Drive Moter	15 kw
	9 Cutting No.	2-30 pcs
	10 Cutter No.	Max 32 pcs
5 Planing Machine	1 Shaft Diameter	φ 130 mm
	2 Shaft No.	Up 2 rows, down 3 rows
	3 Mid Plate Thickness	40 mm
	4 Mulch Applicator Diameter	φ 130 mm
	5 Film Width	1600 mm
6 Tension Table	1 Segregation Shaft	3 pcs, 1 pcs pressure shaft
6 Tension Table	2 Air Cylinder	3 pcs
7 Recoiler Specification	1 Tape Outer Diameter	Max φ 1600 mm
	2 Tape Width	600 mm - 1600 mm
	3 Tape Inner Diameter	φ 480 mm - φ 530 mm
	4 Coil Weight	5 - 10 tons
	5 Max Working Speed	8 m/min - 30 m/min
	6 Tape Tight Range	φ 485 mm - φ 530 mm
	7 Shaft Diameter	φ 180 mm
	8 Roller Effective Length	1750 mm
	9 Drive Moter Power	30 kw
8 Recoiler Specification	10 Loading Car Diameter	φ 1000 mm - φ 1750 mm
	11 Loading Car Weight	Max 10 tons
	12 Car Speed	About 4 m/min
9 Electrical Control System	2 sets. Computer Control System is Siemens PLC.
10 Edge Collecting Machine	1 Drive Moter	3 kw
	2 Collecting Material Width	Max 20 mm
	3 Double Edge Width	400 mm

Advantage

The slitting lines maintain high accuracy while allowing instant changes. Our large coilers and full control of machinery allow us to deliver production lines on time and within budget with the latest technology for quality control and automation.
