Name: Galvanized Corrugated Roof Roll Forming Machine 0.3 - 0.8mm Thinckness
Brand: Cangzhou Famous International Trading Co., Ltd
SKU: Met dachówka/glazura
Price: 28,000.00 USD
Availability: InStock

Do domu > produkty > Maszyna do formowania rolek dachowych >

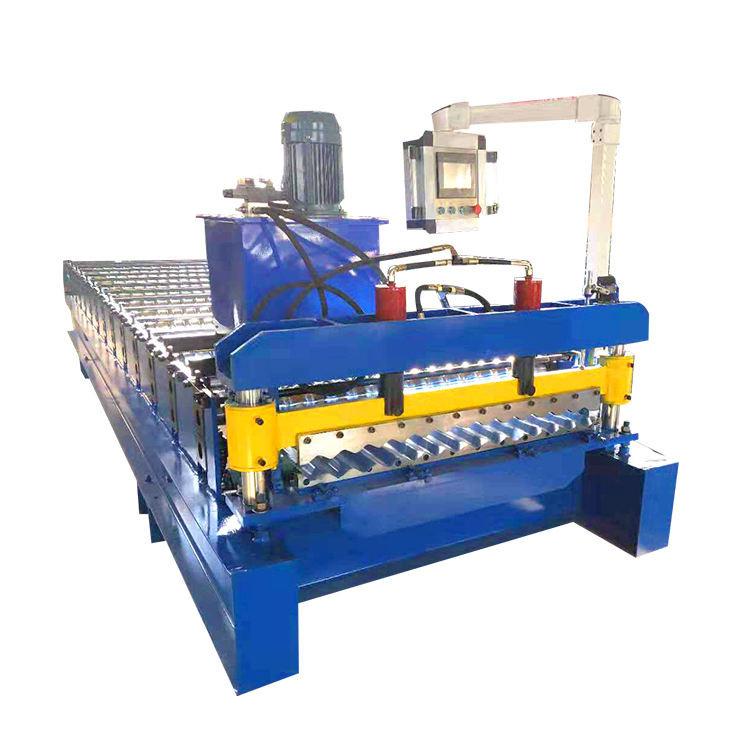

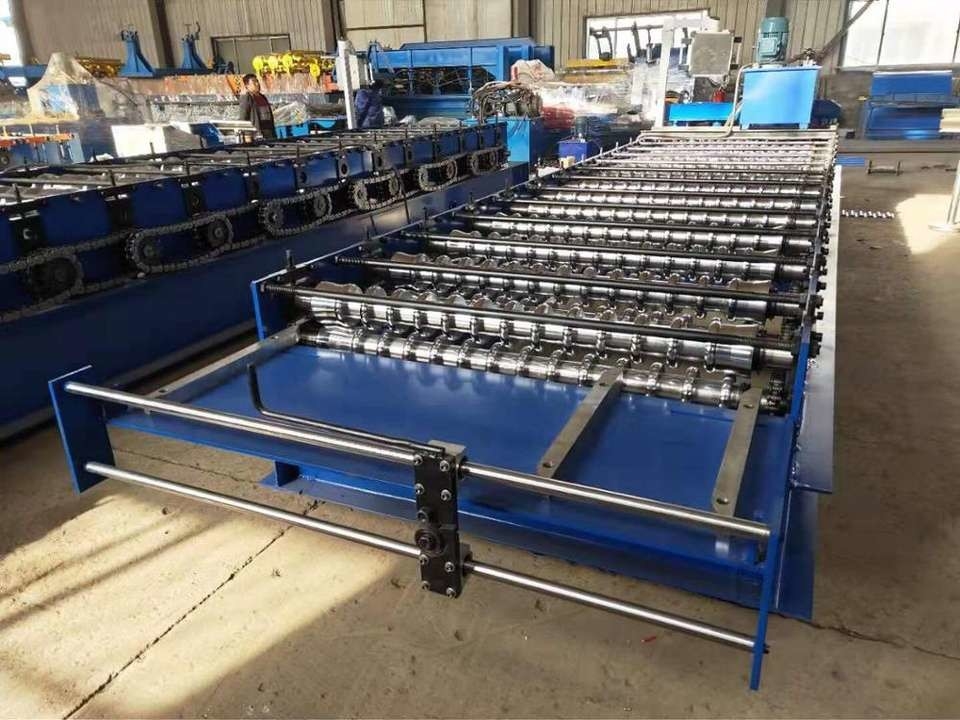

Galvanized Corrugated Roof Roll Forming Machine 0.3 - 0.8mm Thinckness

ISO Corrugated Roof Roll Forming Machine

0.8mm Corrugated Roof Roll Forming Machine

Galvanized Corrugated Roll Forming Machine

Miejsce pochodzenia:

Chiny kontynentalne

Nazwa handlowa:

CANGZHOU FMS

Orzecznictwo:

ISO CE

Numer modelu:

Met dachówka/glazura

Skontaktuj się z nami

Poproś o wycenę

Szczegóły produktu

Nazwa produktu:

Wysokiej jakości maszyna do formowania rolek z tektury falistej Maszyna do formowania na zimno

Surowiec:

Galvalume, ocynkowane, PPGI, aluminium, miedź

Woltaż:

380V 60 Hz lub zgodnie z wymaganiami klienta

Zdolność produkcyjna:

8-12 metrów/min

Grubość rolki:

0,3-0,8 mm

Materiał wału:

45 # Stalowa średnica zewnętrzna: 75 mm

Podstawowe komponenty:

Silnik, pompa, skrzynia biegów, sterownik PLC

Materiał z ostrza:

Cr12Mov z hartowaniem

Kluczowe punkty sprzedaży:

Długie życie

Waga:

3,5 T

Wymiar (L*W*H):

6000*1300*1100

Podkreślić:

ISO Corrugated Roof Roll Forming Machine

0.8mm Corrugated Roof Roll Forming Machine

Galvanized Corrugated Roll Forming Machine

Warunki płatności i wysyłki

Minimalne zamówienie

1 zestaw

Cena

negotiable

Szczegóły pakowania

40' FLC

Czas dostawy

35 dni roboczych

Zasady płatności

L/C, T/T, D/A, D/P

Możliwość Supply

20 zestawów miesięcznie

Powiązane produkty

Wideo

Standard Corrugated Galvanized Sheets Machine Standard Corrugated Galvanized Sheets Line

Uzyskaj najlepszą cenę

Wideo

Corrugated Sheet Machine Corrugated Roofing Tile Roll Forming Machine

Uzyskaj najlepszą cenę

Wideo

Metal Roof Tile Trapezoidal Roll Forming Machine 5.5kw

Uzyskaj najlepszą cenę

Wideo

High Material Quality C89 Light Gauge Steel Framing Building Roll Forming Machine

Uzyskaj najlepszą cenę

Skontaktuj się z nami

86-317-2016816

Skontaktuj się teraz

Opis produktu

High Quality Corrugated Roof Roll Forming Machine Cold Roll Forming Machine

As a production base of cold roll forming machines with a long history, we have cooperated with a number of production plants and related enterprises to focus on the design, development, and production of cold-formed machines. All products meet international quality standards and are highly evaluated in different markets around the world, including Asia, Africa, Europe, South America, Oceania and more.

Packing and shipping

1. One 40ft container for loading one set machine with manual decoiler;
2. The whole Wiped Anti Rust Oil, PLC controller covered by foam film;
3. Spare parts and some small parts packed in plastic tooling box;
4. All Components Fixed by steel wire with Container.

Specification

1	Suitable to process	color steel
2	Effective width	850mm
3	Feeding width	1000mm
4	Rollers	11rows
5	Diameter of roller	70mm
6	Thickness of steel	0.3-0.8mm
7	Motor power	4kw
8	Pump power	4kw
9	Working speed	8-12m/min
10	Material of cutting knives	Cr12 quenching
11	Material of roller	45# steel quenching
12	Main frame	300H steel
13	Voltage	as customer's requirement
14	Weight	about 3.5T

Guarantee
1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.

2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation

Payment terms

40% in advance as down payment

60% is paid before the shipment is processed

Delivery

FOB: Tianjin Xingang Port

The Delivery Time: 30 days after the down payment is received.
