Name: 45# Forged Steel Cable Tray Roll Forming Machine High Productivity
Brand: Cangzhou Famous International Trading Co., Ltd
SKU: Taca kablowa
Price: 32,500.00 USD
Availability: InStock

Do domu > produkty > Maszyna do formowania płatwi CZ >

45# Forged Steel Cable Tray Roll Forming Machine High Productivity

15m/min Cable Tray Roll Forming Machine

7.5kw Cable Tray Roll Forming Machine

Miejsce pochodzenia:

CHINY

Nazwa handlowa:

FMS

Orzecznictwo:

Numer modelu:

Taca kablowa

Skontaktuj się z nami

Poproś o wycenę

Szczegóły produktu

Nazwa produktu:

Fabryka w Chinach Maszyna do formowania rolek korytek kablowych Linia produkcyjna maszyn do formowan

Zdolność produkcyjna:

8-15 m/min

Wysokość profilu:

914-1450 mm

Woltaż:

380 V 50 Hz 3 fazy zgodnie z żądaniem

Główny silnik:

7,5 kW

Grubość rolki:

0,8-2 mm

Automatyzacja:

Automatyczny

Materiał rolkowy:

45# kuta stal

Wymiar (L*W*H):

36*1,5*1,8 m

Podkreślić:

15m/min Cable Tray Roll Forming Machine

7.5kw Cable Tray Roll Forming Machine

Warunki płatności i wysyłki

Minimalne zamówienie

1 zestaw

Cena

negotiable

Szczegóły pakowania

Główna maszyna jest naga, skrzynka sterownicza komputera jest zapakowana w plastik.

Czas dostawy

30 dni

Zasady płatności

T/T, Western Union, L/C

Możliwość Supply

20 zestawów miesięcznie

Powiązane produkty

Wideo

High Efficiency CZ Purlin Roll Forming Machine with 45# Steel Rollers and High Straightness for Construction

Uzyskaj najlepszą cenę

Wideo

Full Automatic CZ Purlin Roll Forming Machine with High Straight Level Crush Resistance and 1.5-3MM Thickness for Industrial Buildings

Uzyskaj najlepszą cenę

Wideo

CZ Purlin Roll Forming Machine with 18 Station Rollers, 380V/50HZ/3Phase Voltage and Cr12Mov Cutting Blade for High Efficiency

Uzyskaj najlepszą cenę

Wideo

CZ Purlin Roll Forming Machine with 700014001500mm Size 8-12m/min Forming Speed and 1.5-3.0mm Thickness for Galvanized Steel

Uzyskaj najlepszą cenę

Skontaktuj się z nami

86-317-2016816

Skontaktuj się teraz

Opis produktu

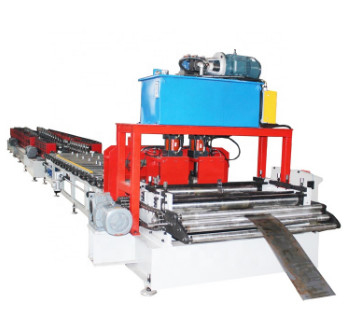

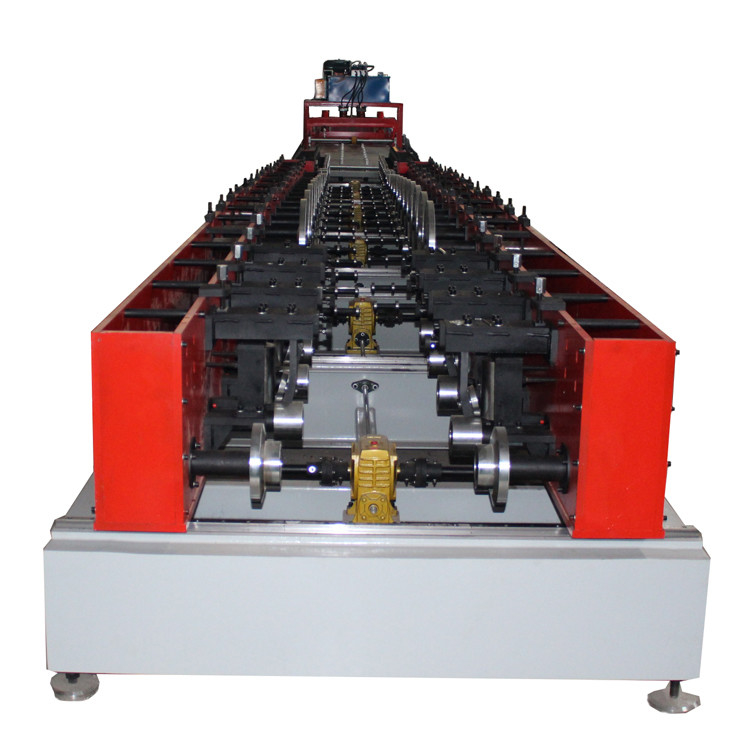

China Factory Cable Tray Roll Forming Machine Cold Forming Machine Production Line

China Factory Cable Tray Roll Forming Machine Cold Forming Machine Production Line adopt coil production material to form CT100-600 cable ladder Profiles through 5 Ton hydraulic decoiler, Leveling, Servo feeding, Hydraulic Pre-Punching Machine, Main cable ladder roll forming part, Post hydraulic cutting, hydraulic station, PLC control system and Non-power type support table.The whole machine adopt PLC control, AC speed control by frequency inverter technology, to realize continuous auto production, which is the best desired machinery in steel structure and metal cold roll forming machinery industry.Working Speed: about 0-15 m/min ( excluding punching & cutting time);

Cable tray is used to support and protect when wire electricity, electric power, communication control and instrumentation cable.
FMS compose this machinery as a cassette replacement type or automatic width control type in accordance with product.
And we supply equipment that is suitably designed for the use of product which can be formed after perforating a partition and other panels.

specifications

item	value
Applicable Industries	Hotels, Building Material Shops, Restaurant, Home Use
Production Capacity	8-15 m/min
Voltage	380v
Dimension(LWH)	361.51.8m
Weight	1500kg
Warranty	1 Year
Key Selling Points	High Productivity
Rolling thinckness	0.8-2mm
Feeding width	914-1450mm
Core Components	Motor, Other, Pump, PLC

Payment terms and Delivery

40% in advance as down payment
60% is paid before the shipment is processed
FOB: Tianjin Xingang Port
The Delivery Time: 30 days after the down payment is received.
