Name: Solar Panel Frame Strut Bar Roll Forming Machine 41x41mm 41x21mm
Brand: Cangzhou Famous International Trading Co., Ltd
Price: 32,500.00 USD
Availability: InStock

Do domu > produkty > Maszyna do formowania płatwi CZ >

Solar Panel Frame Strut Bar Roll Forming Machine 41x41mm 41x21mm

Roll Forming Machine 41x41mm

Strut Bar Roll Forming Machine

Roll Forming Machine 41x21mm

Miejsce pochodzenia:

CHINY

Nazwa handlowa:

FMS

Orzecznictwo:

CE,ISO

Skontaktuj się z nami

Poproś o wycenę

Szczegóły produktu

Nazwa produktu:

Maszyna do formowania rolek ramy panelu słonecznego 41x41mm 41x21mm

Kluczowe punkty sprzedaży:

Automatyczny

Zdolność produkcyjna:

8-9m/min

Woltaż:

380 V 50 Hz 3 fazy

Wymiar (L*W*H):

około 9500*1000*1200Mm

Stacja hydrauliczna:

5,5 kW

Waga:

10000 KG

Materiał rolkowy:

45# kuta stal

Typ cięcia:

Cięcie hydrauliczne

Grubość rolki:

1,5-2,5 mm

Materiał Cięcia:

CR12MOV

Podkreślić:

Roll Forming Machine 41x41mm

Strut Bar Roll Forming Machine

Roll Forming Machine 41x21mm

Warunki płatności i wysyłki

Minimalne zamówienie

1 zestaw

Cena

negotiable

Szczegóły pakowania

Główna maszyna jest naga, skrzynka sterownicza komputera jest zapakowana w plastik.

Czas dostawy

30 dni

Zasady płatności

T/T, Western Union, L/C

Możliwość Supply

20 zestawów miesięcznie

Powiązane produkty

Wideo

High Efficiency CZ Purlin Roll Forming Machine with 45# Steel Rollers and High Straightness for Construction

Uzyskaj najlepszą cenę

Wideo

Full Automatic CZ Purlin Roll Forming Machine with High Straight Level Crush Resistance and 1.5-3MM Thickness for Industrial Buildings

Uzyskaj najlepszą cenę

Wideo

CZ Purlin Roll Forming Machine with 18 Station Rollers, 380V/50HZ/3Phase Voltage and Cr12Mov Cutting Blade for High Efficiency

Uzyskaj najlepszą cenę

Wideo

CZ Purlin Roll Forming Machine with 700014001500mm Size 8-12m/min Forming Speed and 1.5-3.0mm Thickness for Galvanized Steel

Uzyskaj najlepszą cenę

Skontaktuj się z nami

86-317-2016816

Skontaktuj się teraz

Opis produktu

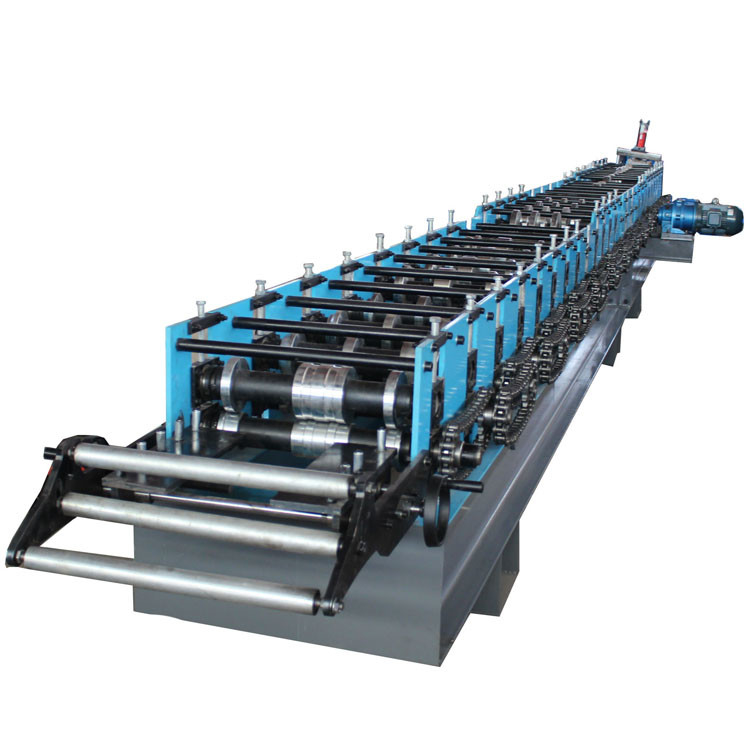

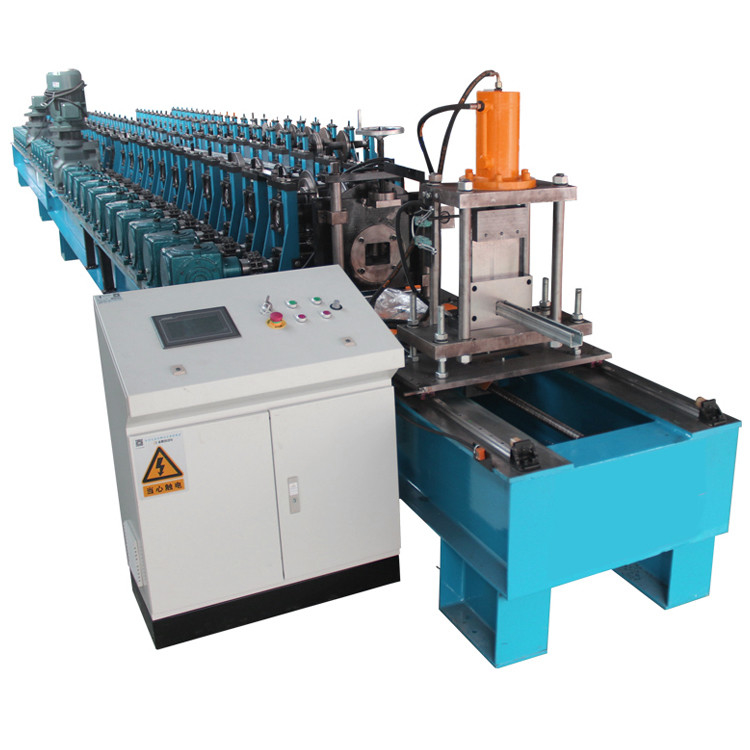

Solar Panel Frame Strut Bar Roll Forming Machine 41x41mm 41x21mm

CANGZHOU FAMOUS INTERNATIONAL TRADING CO., LTD is a professional manufacturer designing and producing roll forming machines established in June 1995.

Products mainly include trapezoidal steel roof/wall panel machine, C&Z shape purline machine, high-way guardrail machine, sandwich panel production line, deck forming machine, C U L light keel machine, shutter slat door forming machine, cutting machine, downpipe machine, gutter machine,Solar Panel Frame Strut Bar Roll Forming Machine etc.

specifications

Forming stations	About 20-22 stations or according to you profile drawings
Machine structure	Optional 1: wall panel structure Optional 2: cast iron strcture
Rollers material	GCr15,quenching treatment:HRC58-62; Cr12, SKD11(optional)
Way of drive	Chain drive or Gearbox drive(optional)
Raw material request	Cold rolled or hot rolled steel,galvanized steel,SS316L, Mild Steel
Whole line working speed	0-25m/min
Length precision	6+-1.0mm
Punching system	Hydraulic punching or punching press machine(option)
Cutting system	Non stop cutting or servo Tracking cutting
Inverter	Siemens,Mitsubishi, panasonic (option Brand)
PLC	Siemens,Mitsubishi, panasonic (option Brand)
Main Power with reducer	18.5KW WH Chinese Famous
Cutting holder	Servo following cutting
Motor power of hydraulic station	5.5KW
Cutting type	Hydraulic drive, cut after forming
Material of cutting blade	Cr12Mov , quenching process

2. Repairs will not be performed even during the guarantee period in the follow circumstances
1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.Guarantee

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation

Payment terms

40% in advance as down payment

60% is paid before the shipment is processed

Delivery

FOB: Tianjin Xingang Port

The Delivery Time: 30 days after the down payment is received.
