Name: Full Automatic Downspout Pipe Roll Forming Machine Down Pipe Making
Brand: Cangzhou Famous International Trading Co., Ltd
SKU: maszyna do formowania rolki rurowej
Price: 16,500.00 USD
Availability: InStock

Do domu > produkty > maszyna do formowania rolki rurowej >

Full Automatic Downspout Pipe Roll Forming Machine Down Pipe Making

Full Auto Downspout Pipe Forming Machine

10m/min Downspout Pipe Roll Forming Machine

5.5kw Downspout Pipe Roll Forming Machine

Miejsce pochodzenia:

CHINY

Nazwa handlowa:

CANGZHOU FMS

Orzecznictwo:

ISO CE

Numer modelu:

maszyna do formowania rolki rurowej

Skontaktuj się z nami

Poproś o wycenę

Szczegóły produktu

Nazwa produktu:

W pełni automatyczna maszyna do formowania rolek rur spustowych Maszyna do produkcji rur spustowych

Zdolność produkcyjna:

8-10m/min

Materiał z ostrza:

Kr 12 Mov

Średnica wału:

50 mm, w zależności od grubości materiału

Wymiar (L*W*H):

8,5*1,65*1,5 m

Główna moc maszyny:

5,5 kW

Woltaż:

3 fazy 380 V 50 Hz lub zgodnie z wymaganiami

Automatyzacja:

Pełny automatyczny

Typ noża:

Cięcie hydrauliczne

Podkreślić:

Full Auto Downspout Pipe Forming Machine

10m/min Downspout Pipe Roll Forming Machine

5.5kw Downspout Pipe Roll Forming Machine

Warunki płatności i wysyłki

Minimalne zamówienie

1 zestaw

Cena

negotiable

Szczegóły pakowania

20' FLC

Czas dostawy

30 dni roboczych

Zasady płatności

L/C, T/T, D/A, D/P

Możliwość Supply

20 zestawów miesięcznie

Powiązane produkty

Mobile Vegetable Planting Trough Forming Machine with Hydraulic Motor 5.5KW and 8-15m/min Production Capacity for Greenhouse Vegetable Cultivation

Uzyskaj najlepszą cenę

Portable Gutter Roll Forming Machine with 500mm Feeding Width and 8-15m/min Production Capacity for Various Growing Methods

Uzyskaj najlepszą cenę

Mobile Greenhouse Vegetable Planting Trough Forming Machine With Quickly And Efficiently 5.5KW Hydraulic Motor

Uzyskaj najlepszą cenę

Portable Greenhouse Planting Trough Forming Machine with Hydraulic Motor 5.5KW 380V/50Hz/3Phase and 45# Steel Shaft

Uzyskaj najlepszą cenę

Skontaktuj się z nami

86-317-2016816

Skontaktuj się teraz

Opis produktu

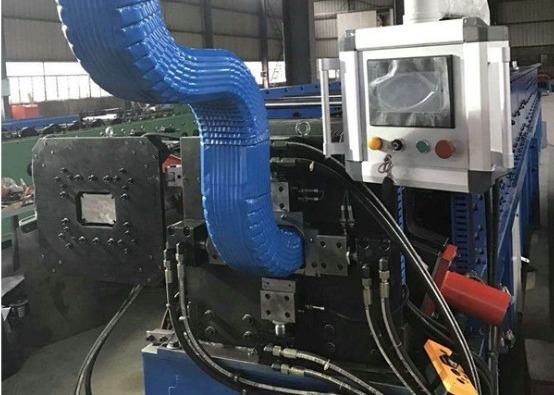

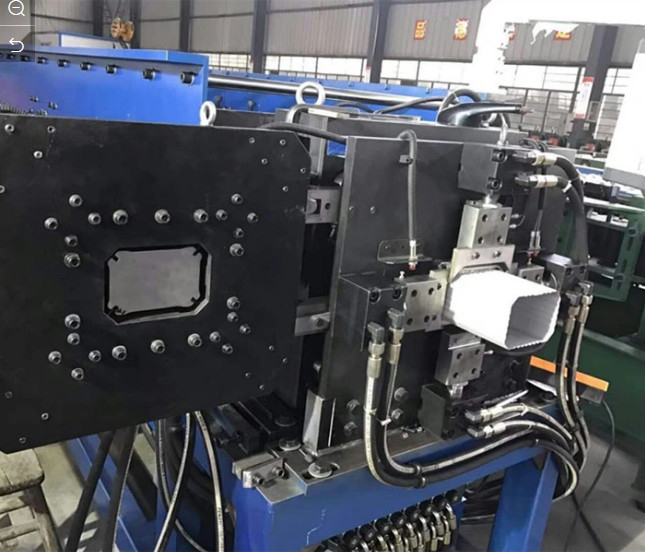

Full Automatic Downspout Pipe Roll Forming Machine Down Pipe Making Machine

Cangzhou FMS Roll Forming Machinery Co., Ltd. is a professional manufacturer engaged in research, development, production, sale and service of roll forming machine. Down Pipe Roll Forming Machine For High Qualitynew Design Square Pipe Making Machine downspout roll forming machine/ Water down pipe,whole line consist manual decoiler,main forming machine,control box,hydraulic pump and run out table.

Specification

Full Automatic Downspout Pipe Roll Forming Machine Down Pipe Making Machine
3	Thickness of the plate	0.5-0.8mm
4	De-coiler	Manual one, can load 3 tons raw material
5	Rollers for forming	19 rows
6	Diameter of the roller	Φ60mm
7	Rolling material	Carbon Steel no. 45
8	Main motor power	5.5kw
9	Productivity	8-10m/min
10	Cutting method	mold cutting
11	Material of the cutting blade	Cr12
12	Hydraulic cutting power	3kw
13	Processing precision	Within 2.00mm
14	Control system	Panasonic PLC control
15	Main structure of the machine	300 H steel
16	Weight	About 7.5T
17	Dimensions	171.21.4m
18	Voltage	380V 50Hz 3phases(changeable as needs)

Installation

During the installation and adjustment of the equipment, our engineers shall provide the training to the buyer’s personal request to operate and maintain the equipment. Including foundation construction, electrical works, hydraulic oil, safe operation, and non-standard safety items, testing material and etc.

Guarantee

The warranty will be maintenance, maintain in the guarantee period of 18 months starting from delivery. Because of the quality of equipment during the guarantee period, we will provide the parts free of charge, which is in the conditions of correct operation. (Natural disasters or factors which can’t be forced by human are excluded).

Payment terms

40% in advance

60% is paid before shipping
