Name: Metal Square Downpipe Roll Forming Machinery For Rainspout Full Automatic
Brand: Cangzhou Famous International Trading Co., Ltd
SKU: maszyna do formowania rolki rurowej
Price: 16,500.00 USD
Availability: InStock

Do domu > produkty > maszyna do formowania rolki rurowej >

Metal Square Downpipe Roll Forming Machinery For Rainspout Full Automatic

Metal Square Downpipe Roll Forming Machine

PCL Square Downpipe Roll Forming Machine

Miejsce pochodzenia:

CHINY

Nazwa handlowa:

CANGZHOU FMS

Orzecznictwo:

ISO CE

Numer modelu:

maszyna do formowania rolki rurowej

Skontaktuj się z nami

Poproś o wycenę

Szczegóły produktu

Nazwa produktu:

Maszyny do formowania rolek metalowych kwadratowych rur spustowych do rynn deszczowych w pełni autom

Zdolność produkcyjna:

8-10m/min

Materiał z ostrza:

Kr 12 Mov

Grubość:

2,0-3,0 mm

Ekran dotykowy:

Marka Siemens lub jako wymagania klienta

Metoda transmisji:

Napęd

Woltaż:

3 fazy 380 V 50 Hz lub zgodnie z wymaganiami

System sterowania:

PCL

Stojak na produkty:

bez zasilania, długość 4 metry

Podkreślić:

Metal Square Downpipe Roll Forming Machine

PCL Square Downpipe Roll Forming Machine

Warunki płatności i wysyłki

Minimalne zamówienie

1 zestaw

Cena

negotiable

Szczegóły pakowania

20' FLC

Czas dostawy

30 dni roboczych

Zasady płatności

L/C, T/T, D/A, D/P

Możliwość Supply

20 zestawów miesięcznie

Powiązane produkty

Mobile Vegetable Planting Trough Forming Machine with Hydraulic Motor 5.5KW and 8-15m/min Production Capacity for Greenhouse Vegetable Cultivation

Uzyskaj najlepszą cenę

Portable Gutter Roll Forming Machine with 500mm Feeding Width and 8-15m/min Production Capacity for Various Growing Methods

Uzyskaj najlepszą cenę

Mobile Greenhouse Vegetable Planting Trough Forming Machine With Quickly And Efficiently 5.5KW Hydraulic Motor

Uzyskaj najlepszą cenę

Portable Greenhouse Planting Trough Forming Machine with Hydraulic Motor 5.5KW 380V/50Hz/3Phase and 45# Steel Shaft

Uzyskaj najlepszą cenę

Skontaktuj się z nami

86-317-2016816

Skontaktuj się teraz

Opis produktu

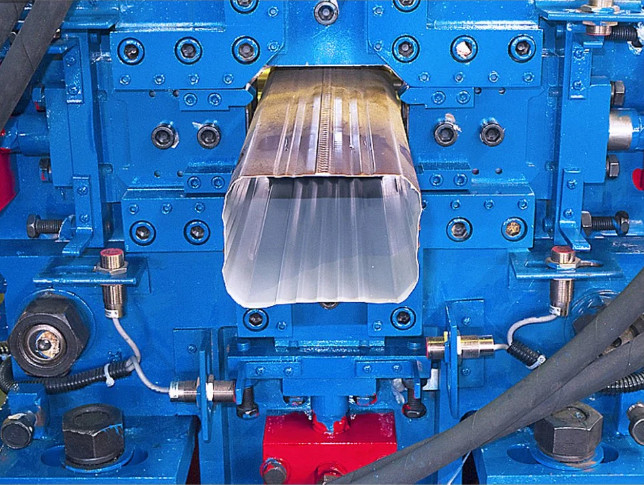

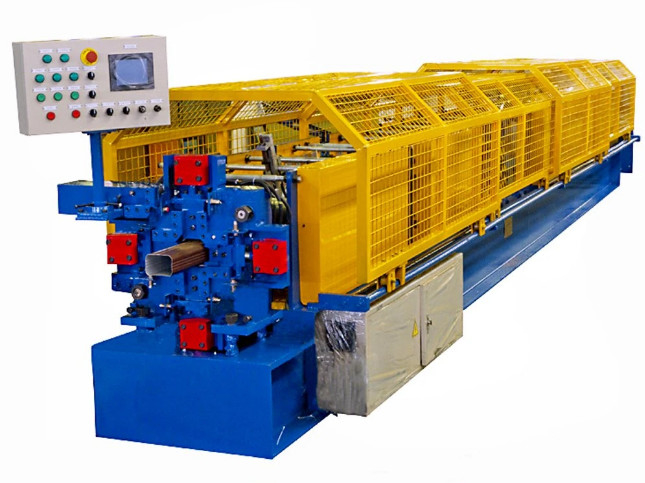

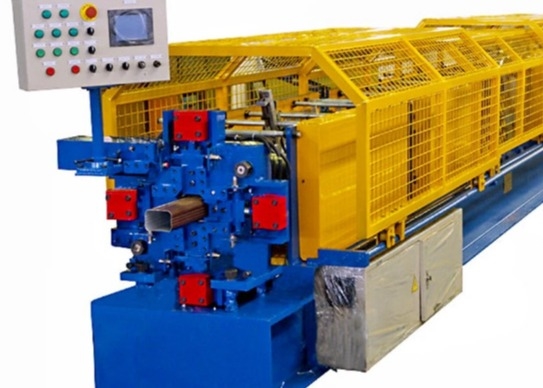

Metal Square Downpipe Roll Forming Machinery For Rainspout Full Automatic

Cangzhou FMS Roll Forming Machinery Co., Ltd. is a professional manufacturer engaged in research, development, production, sale and service of roll forming machine. Down Pipe Roll Forming Machine For High Qualitynew Design Square Pipe Making Machine downspout roll forming machine/ Water down pipe,whole line consist manual decoiler,main forming machine,control box,hydraulic pump and run out table.

Specification

Metal Square Downpipe Roll Forming Machinery For Rainspout Full Automatic parameter
Suitable roll forming material	Color steel sheet or galvanized steel sheet
Thickness	2.0-3.0mm
Frame design	Wall-plate-frame-design /Strong-stand-frame-design
Roll stages	17stages
Material of forming roller	1. 45# steel, CNC lathes, Hard Chrome Coated 2. 40Cr, heat treatment, nitrided treatment
Shafts Diameter	Φ75/95mm
Main motor power	18.5KWwith reducer
Max. Line speed of roll former	8-10m/min (Higher speed is available, depends on the specification required by the buyer)
Hydraulic group power	22KW
Material of cutting blade	Cr12, hear treatment
Electric Standard	380V /50Hz/3PH or as the customer's requirements
Machine Dimensions	9840mm×2030mm×1130mm
Major Color of Machine Painted	RAL 5015 (Blue) or as per customer's requirements

Installation

During the installation and adjustment of the equipment, our engineers shall provide the training to the buyer’s personal request to operate and maintain the equipment. Including foundation construction, electrical works, hydraulic oil, safe operation, and non-standard safety items, testing material and etc.

Guarantee

The warranty will be maintenance, maintain in the guarantee period of 18 months starting from delivery. Because of the quality of equipment during the guarantee period, we will provide the parts free of charge, which is in the conditions of correct operation. (Natural disasters or factors which can’t be forced by human are excluded).

Payment terms

40% in advance

60% is paid before shipping
