Self Lock Standing Seam Roll Forming Machine Portable Snap Clip Lock

15m/min Standing Seam Roll Forming Machine

Portable Standing Seam Roll Forming Machine

Self Lock Standing Seam Roll Former

Miejsce pochodzenia:

CHINY

Nazwa handlowa:

cangzhou fms

Orzecznictwo:

CE,ISO

Skontaktuj się z nami

Poproś o wycenę

Szczegóły produktu

Nazwa produktu:

Samoblokująca maszyna do formowania rolek na rąbek stojący Przenośna blokada zatrzaskowa

Zdolność produkcyjna:

10-15m/min

Woltaż:

380 V 50 Hz 3 fazy

Waga:

1,5 tony

Ściana boczna:

45# Płyty stalowe

Wymiar (L*W*H):

5800*1000*1200mm

Materiał rolkowy:

45 # Kucie stali z płytką chromowaną

Moc silnika:

4KW

Surowiec:

GI, PPGI, PPGL

Podkreślić:

15m/min Standing Seam Roll Forming Machine

Portable Standing Seam Roll Forming Machine

Self Lock Standing Seam Roll Former

Warunki płatności i wysyłki

Minimalne zamówienie

1 zestaw

Cena

negotiable

Szczegóły pakowania

Główna maszyna jest naga, skrzynka sterownicza komputera jest zapakowana w plastik.

Czas dostawy

30 dni

Zasady płatności

T/T, Western Union

Możliwość Supply

30 zestawów miesięcznie

Powiązane produkty

6m Automatic Stacker for Roof Sheet Roll Forming Machine

Uzyskaj najlepszą cenę

Wideo

the factory price for 0.3-0.8mm thickness Glazed Roof sheet forming machine

Uzyskaj najlepszą cenę

Wideo

2025 New Design for Glazed Roof Tile Roof Sheet Roll Forming Machine With 18 Rows

Uzyskaj najlepszą cenę

Wideo

4meter/Min Glazed Tile Roll Forming Machine With 18 Rows

Uzyskaj najlepszą cenę

Skontaktuj się z nami

Skontaktuj się teraz

Opis produktu

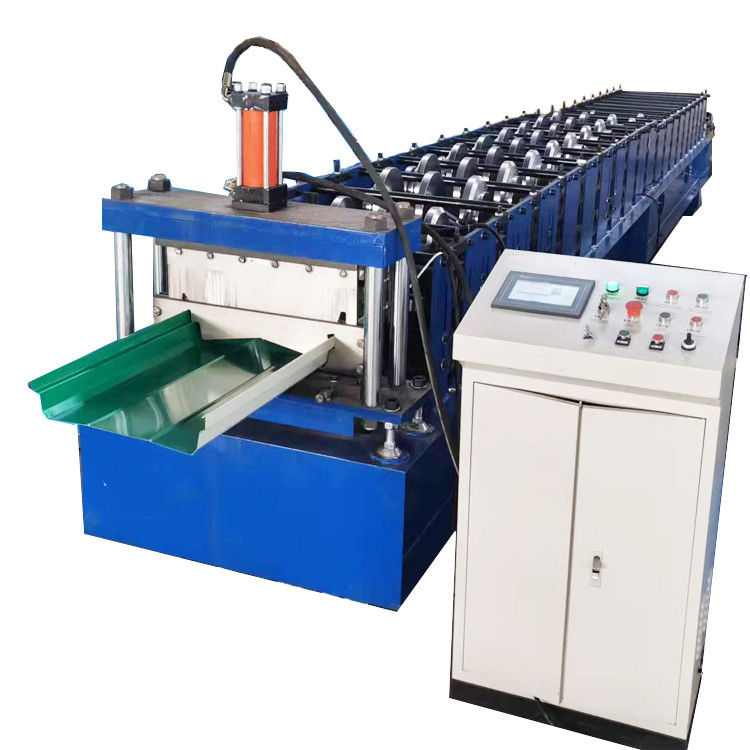

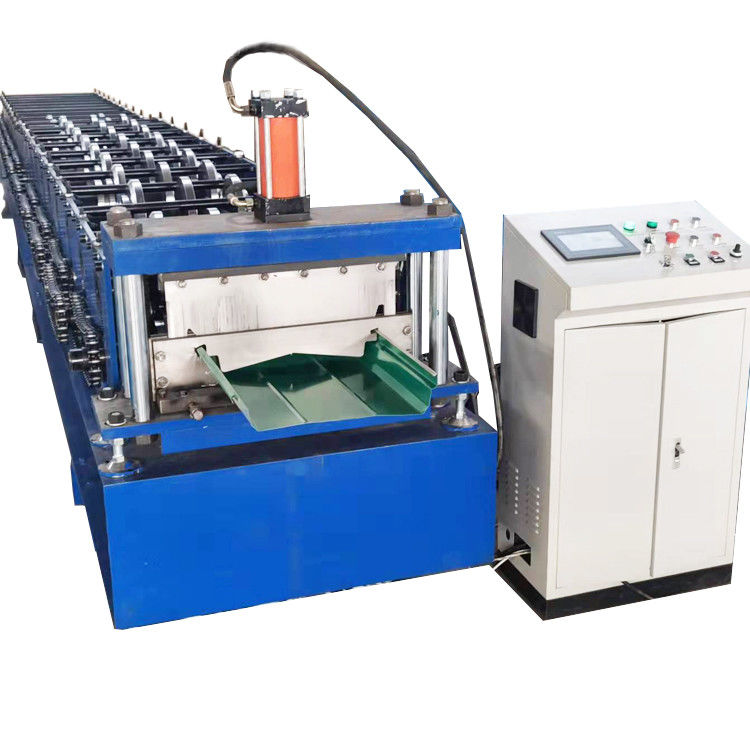

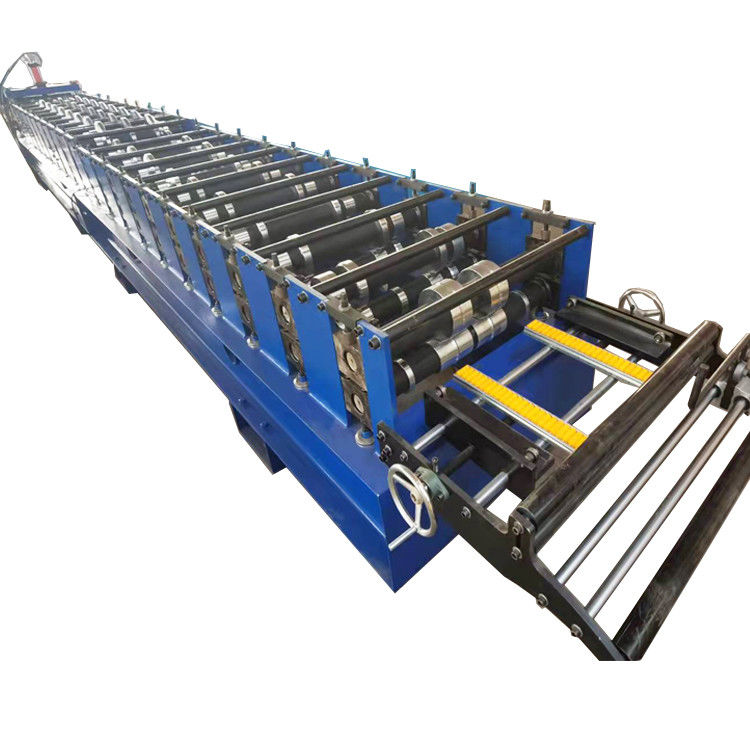

Self Lock Standing Seam Roll Forming Machine Portable Snap Clip Lock

Self Lock Standing Seam Roll Forming Machine Portable Snap Clip Lock is widely used, because it’s impossible for the water to get under the connected roofing panels, thanks to lock’s special shape.

After installation on the roof the panels are closed using special double standing seam closing tools (manual tool for closing seam lock or electric seaming machine for closing double standing seams).

standing seam machine can be easily adjusted for various width of metal roofing panels.

Operator can change the width of the panels with just a single turning handle at one side of the machine. This is a proven technical convenience that allows operator to use his working time more effectively.

Specification

1.Processing material	aluzinc/galvanized steel/colored steel coil
2.Material thickness	0.3-0.8mm
3.Feeding width:	As drawing
4.Effective width	As drawing
5.Main motor power	4kw
6.hydraulic pump power	4kw
7. Shaft diameter	65mm
8.Forming steps	13steps
9.Main frame	300H Steel frame
10. Side plate thickness	16mm
11.Roller material	45# forged steel, with hard chrome plating
12.Control systerm	Delta PLC control system with touch screen
13.Cutting blade material	Cr12.
14.Working speed	About 10-15m/min
15. Transmission way	1 inch chain drive
16. Machine size (mm)	About 580010001400mm
17. Machine weight	About 1.5ton
18.Power supply	220v,3phase,50hz or accodring to customer request

Guarantee

1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.

2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation

Payment terms

40% in advance as down payment

60% is paid before the shipment is processed

Delivery

FOB: Tianjin Xingang Port

The Delivery Time: 30 days after the down payment is received.
