Name: Metal Galvanized Gutter Downspout Roll Forming Machine PCL Control
Brand: Cangzhou Famous International Trading Co., Ltd
SKU: maszyna do formowania rolki rurowej
Price: 16,500.00 USD
Availability: InStock

Do domu > produkty > maszyna do formowania rolki rurowej >

Metal Galvanized Gutter Downspout Roll Forming Machine PCL Control

Metal Downspout Roll Forming Machine

Galvanized Downspout Roll Forming Machine

PCL Downspout Roll Forming Machine

Miejsce pochodzenia:

CHINY

Nazwa handlowa:

CANGZHOU FMS

Orzecznictwo:

ISO CE

Numer modelu:

maszyna do formowania rolki rurowej

Skontaktuj się z nami

Poproś o wycenę

Szczegóły produktu

Nazwa produktu:

Maszyna do formowania rynien ocynkowanych Maszyna do formowania rolek metalowych rynien spustowych

Zdolność produkcyjna:

8-12m/min

Materiał z ostrza:

Kr 12 Mov

Grubość rolki:

0,3-0,8 mm

Wymiar (L*W*H):

7800*1200*1400MM

Waga brutto na jednostkę produktu:

6500 kg

Woltaż:

3 fazy 380 V 50 Hz lub zgodnie z wymaganiami

System sterowania:

PCL

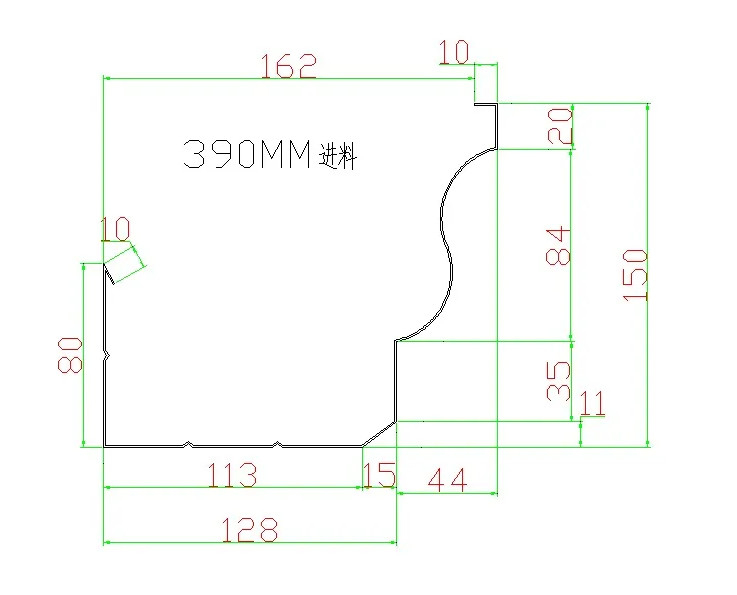

Szerokość karmienia:

390 mm

Podkreślić:

Metal Downspout Roll Forming Machine

Galvanized Downspout Roll Forming Machine

PCL Downspout Roll Forming Machine

Warunki płatności i wysyłki

Minimalne zamówienie

1 zestaw

Cena

negotiable

Szczegóły pakowania

20' FLC

Czas dostawy

30 dni roboczych

Zasady płatności

L/C, T/T, D/A, D/P

Możliwość Supply

20 zestawów miesięcznie

Powiązane produkty

Mobile Vegetable Planting Trough Forming Machine with Hydraulic Motor 5.5KW and 8-15m/min Production Capacity for Greenhouse Vegetable Cultivation

Uzyskaj najlepszą cenę

Portable Gutter Roll Forming Machine with 500mm Feeding Width and 8-15m/min Production Capacity for Various Growing Methods

Uzyskaj najlepszą cenę

Mobile Greenhouse Vegetable Planting Trough Forming Machine With Quickly And Efficiently 5.5KW Hydraulic Motor

Uzyskaj najlepszą cenę

Portable Greenhouse Planting Trough Forming Machine with Hydraulic Motor 5.5KW 380V/50Hz/3Phase and 45# Steel Shaft

Uzyskaj najlepszą cenę

Skontaktuj się z nami

86-317-2016816

Skontaktuj się teraz

Opis produktu

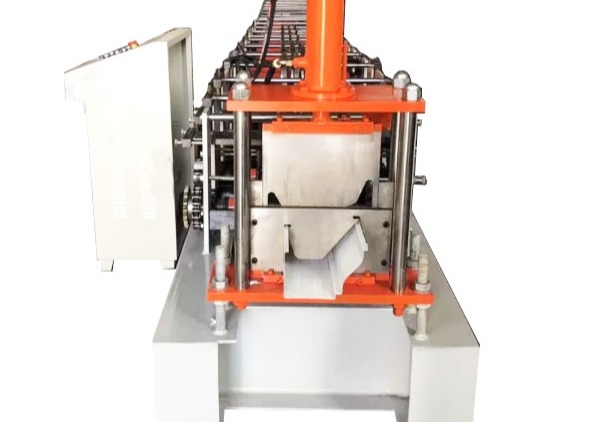

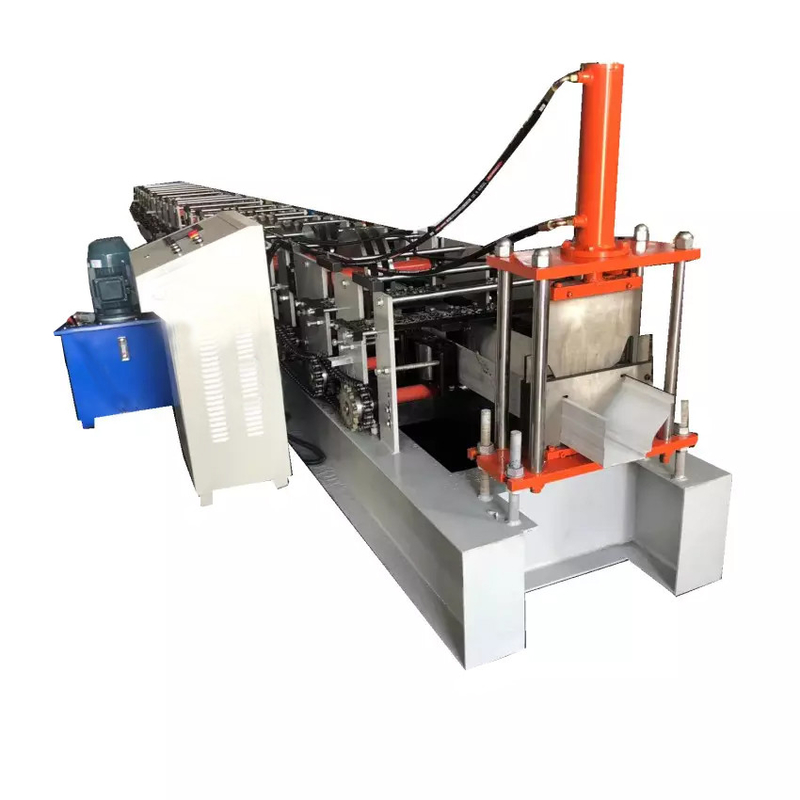

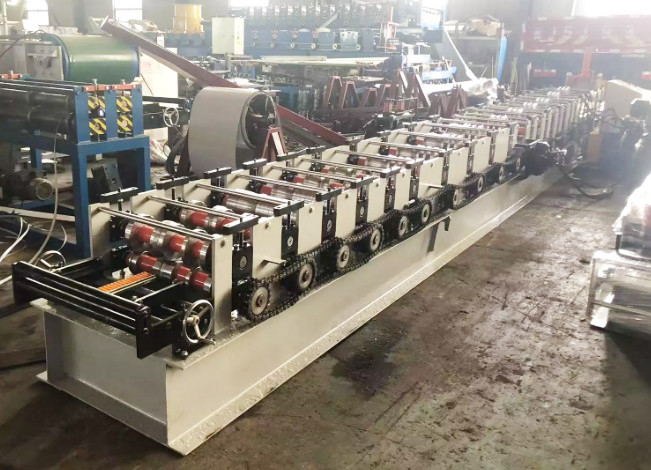

Galvanized Gutter Making Machine Downspout Metal Gutter Roll Forming Machine

Galvanized Gutter Making Machine Downspout Metal Gutter Roll Forming Machine can bend the roll formed pipe, and let the drainpipe and the bending connect to be the whole.The product after roll forming has long working time than the tranditional ppc pipe, and not aging. It can make the project more integrate, and help to enhance the image of the all project.The equipment adopts PLC control, AC frequency and adjusting the speed technology, and it realizes the continuous automatically production, therefore, it is really a new type of energy-saving and high-effective producing equipment for steel structure.

Specification

Galvanized Gutter Making Machine Downspout Metal Gutter Roll Forming Machine
Processing material	aluzinc/galvanized steel/colored steel coil
Material thickness	0.3-0.8mm
Frame design	460mm According to customer’s request
Main motor power	4 kw
Material of forming roller	45# steel, CNC lathes, Hard Chrome Coated
Shafts Diameter	Φ75mm
Main motor power	7.5KW
Max. Line speed of roll former	15m/min (Higher speed is available, depends on the specification required by the buyer)
Hydraulic group power	4KW
Material of cutting blade	Cr12, hear treatment
Electric Standard	380V /50Hz/3PH or as per customer's requirements
Main frame	300H steel

Installation

During the installation and adjustment of the equipment, our engineers shall provide the training to the buyer’s personal request to operate and maintain the equipment. Including foundation construction, electrical works, hydraulic oil, safe operation, and non-standard safety items, testing material and etc.

Guarantee

The warranty will be maintenance, maintain in the guarantee period of 18 months starting from delivery. Because of the quality of equipment during the guarantee period, we will provide the parts free of charge, which is in the conditions of correct operation. (Natural disasters or factors which can’t be forced by human are excluded).

Payment terms

40% in advance

60% is paid before shipping
