Name: Steel Tile Roofing Sheet Double Layer Roll Forming Machine 840 900
Brand: Cangzhou Famous International Trading Co., Ltd
SKU: Podwójna warstwa
Price: 16,000.00 USD
Availability: InStock

Do domu > produkty > Maszyna do formowania rolek dachówek >

Steel Tile Roofing Sheet Double Layer Roll Forming Machine 840 900

ISO Double Layer Roll Forming Machine

Double Layer Roll Forming Machine 15m/min

Miejsce pochodzenia:

Chiny kontynentalne

Nazwa handlowa:

FMS

Orzecznictwo:

ISO CE

Numer modelu:

Podwójna warstwa

Skontaktuj się z nami

Poproś o wycenę

Szczegóły produktu

Nazwa produktu:

Maszyna do formowania rolek z blachy stalowej dwuwarstwowej 840 900 Wysoka jakość

Wymiar (L*W*H):

7,5 m*1,6 m*1,4 m

Waga:

6300 kg

Woltaż:

380/50 Hz/3PH lub dostosowane

Szerokość karmienia:

1200 mm

Zdolność produkcyjna:

30 m/min

Surowiec:

PPGI PPGL GI GL

Materiał tnący:

Cr12/Cr12 Mow

Podkreślić:

ISO Double Layer Roll Forming Machine

Double Layer Roll Forming Machine 15m/min

Warunki płatności i wysyłki

Minimalne zamówienie

1 zestaw

Cena

negotiable

Szczegóły pakowania

40' FLC

Czas dostawy

30 dni roboczych

Zasady płatności

L/C, T/T, D/A, D/P

Możliwość Supply

20 zestawów miesięcznie

Powiązane produkty

6m Automatic Stacker for Roof Sheet Roll Forming Machine

Uzyskaj najlepszą cenę

Wideo

the factory price for 0.3-0.8mm thickness Glazed Roof sheet forming machine

Uzyskaj najlepszą cenę

Wideo

2025 New Design for Glazed Roof Tile Roof Sheet Roll Forming Machine With 18 Rows

Uzyskaj najlepszą cenę

Wideo

4meter/Min Glazed Tile Roll Forming Machine With 18 Rows

Uzyskaj najlepszą cenę

Skontaktuj się z nami

86-317-2016816

Skontaktuj się teraz

Opis produktu

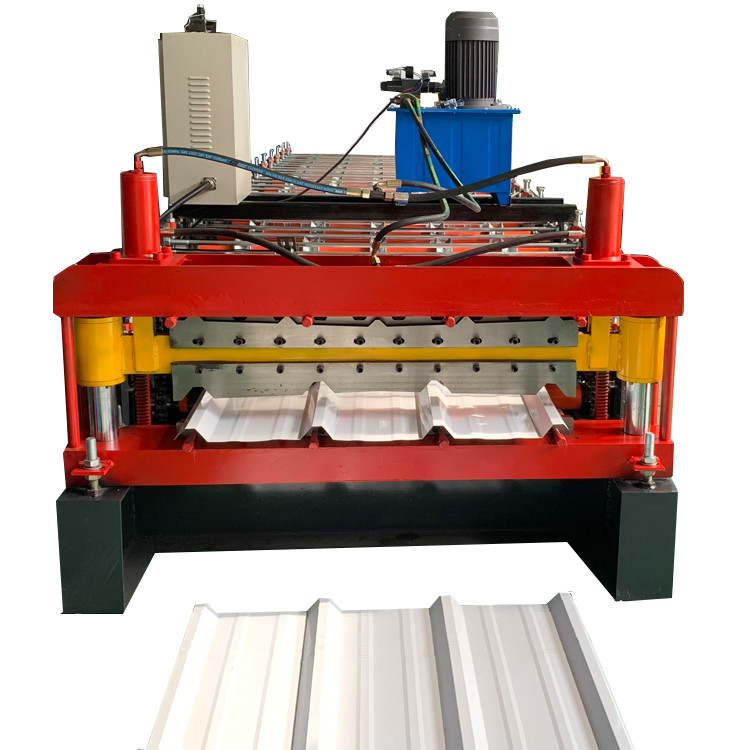

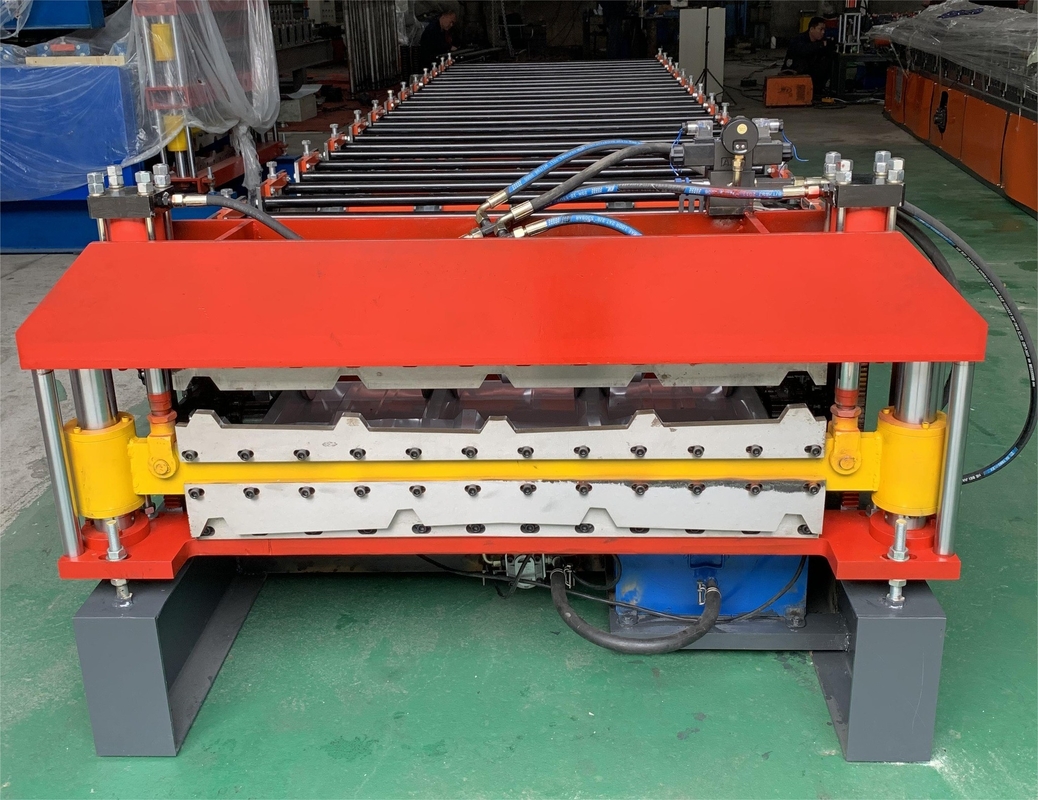

Steel Tile Roofing Sheet Double Layer Roll Forming Machine 840 900 High Quality

Automatic Color Steel Roll Forming Machine IBR Profile Roof Sheet Tile Making Machinery Price is a machine composed of unwinding, forming, and post-forming cutting. Its color plate has a flat and beautiful appearance, uniform paint patterns, high strength, and durability. It is widely used in industrial civil buildings, such as factory buildings, warehouses, stadiums, exhibition pavilions, theaters and other rooms and walls.

Tile making machine finished panel

When you make order, we will as the design for we confirmed before, measure all for you, once the machine finished.
This roll forming machine can roll form metal roofing sheet. After roll formed by this roll forming machine, the surface will be very smooth and beautiful without any scratch on surface.

Roll forming process: uncoiler, roll forming, forming step effect, cut to length.

Fully Automatic Control System with PLC.

Easy operation: Key in the length and quantity on the control panel.

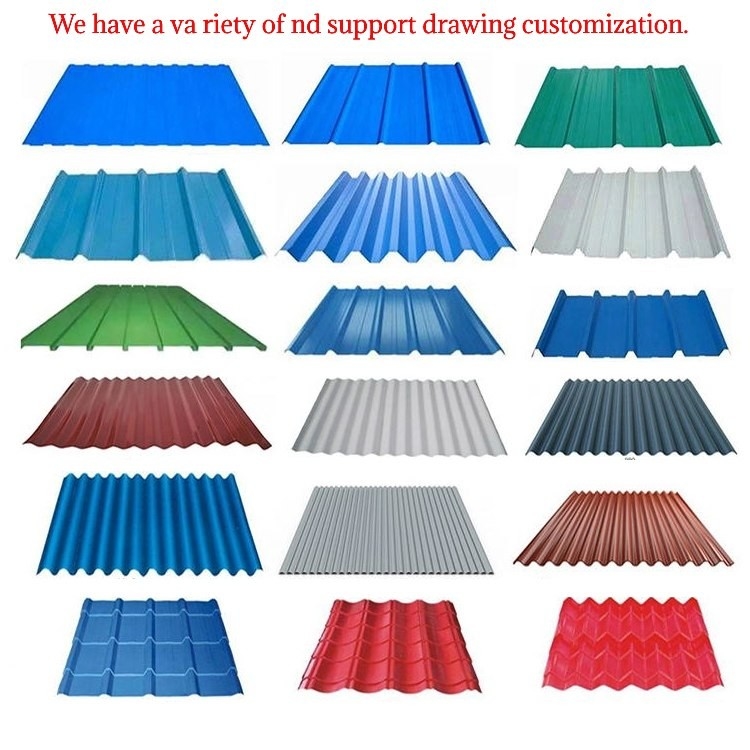

We also can do a custom roll forming machine, We can design the machine according to your specification and profile drawing.

Specification

Dimensions	7.5m1.6m1.4m
hydraulic transmission	15 m/min
Main frame material	300H Steel
Thickness of plate in equipment	14mm
Roll forming row number	high layer:9 row (900), under layer: 11 row (840)
Forming shaft material	45# steel quenching treatment
Molding shaft dimension	Diameter of 70
Roll shape material	45# steel with hard chrome plating
Number of rollers	11rollers
Power	6kw
Main motor power	4kw
Forming speed	8-10 m/min
Material thickness	0.3-0.8mm

Installation

During the installation and adjustment of the equipment, our engineers shall provide the training to the buyer’s personal request to operate and maintain the equipment. Including foundation construction, electrical works, hydraulic oil, safe operation, and non-standard safety items, testing material and etc.

Guarantee

The warranty will be maintenance, maintain in the guarantee period of 18 months starting from delivery. Because of the quality of equipment during the guarantee period, we will provide the parts free of charge, which is in the conditions of correct operation. (Natural disasters or factors which can’t be forced by human are excluded).

Payment terms

40% in advance

60% is paid before shipping
