Steel Roofing Tile Glazed Tile Roll Forming Machine Long Span

Long Span Glazed Tile Forming Machine

4kw Glazed Tile Roll Forming Machine

8m/min Glazed Tile Forming Machine

Miejsce pochodzenia:

CHINY

Nazwa handlowa:

FMS

Orzecznictwo:

CE,ISO

Skontaktuj się z nami

Poproś o wycenę

Szczegóły produktu

Nazwa produktu:

Maszyna do formowania rolek stalowych dachówek glazurowanych Maszyna o dużej rozpiętości

Stosowanie:

Dach, ściana

Odpowiedni materiał:

Ppgi gi

Waga:

5000 kg

Prędkość:

3-8M/min

Materiał rolkowy:

380 V 50 Hz 3 fazy

Silnik:

4KW

Grubość:

0,3-0,8 mm

Specyfikacja:

3000*1300*600mm

Rolki:

45 # Stal zgodnie z wymaganiami klienta

Podkreślić:

Long Span Glazed Tile Forming Machine

4kw Glazed Tile Roll Forming Machine

8m/min Glazed Tile Forming Machine

Warunki płatności i wysyłki

Minimalne zamówienie

1 zestaw

Cena

negotiable

Szczegóły pakowania

Główna maszyna jest naga, skrzynka sterownicza komputera jest zapakowana w plastik.

Czas dostawy

30 dni

Zasady płatności

T/T, Western Union

Możliwość Supply

30 zestawów miesięcznie

Powiązane produkty

6m Automatic Stacker for Roof Sheet Roll Forming Machine

Uzyskaj najlepszą cenę

Wideo

the factory price for 0.3-0.8mm thickness Glazed Roof sheet forming machine

Uzyskaj najlepszą cenę

Wideo

2025 New Design for Glazed Roof Tile Roof Sheet Roll Forming Machine With 18 Rows

Uzyskaj najlepszą cenę

Wideo

4meter/Min Glazed Tile Roll Forming Machine With 18 Rows

Uzyskaj najlepszą cenę

Skontaktuj się z nami

86-317-2016816

Skontaktuj się teraz

Opis produktu

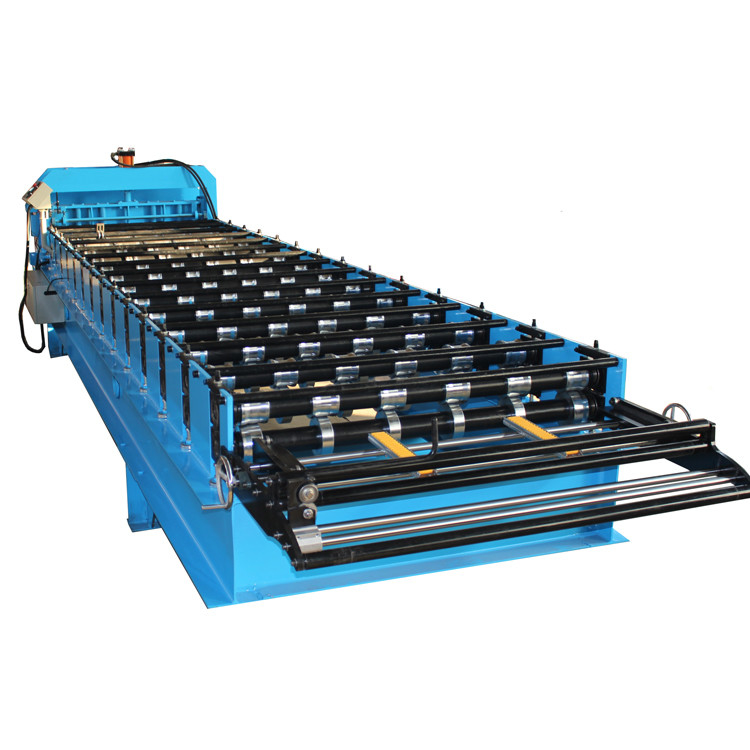

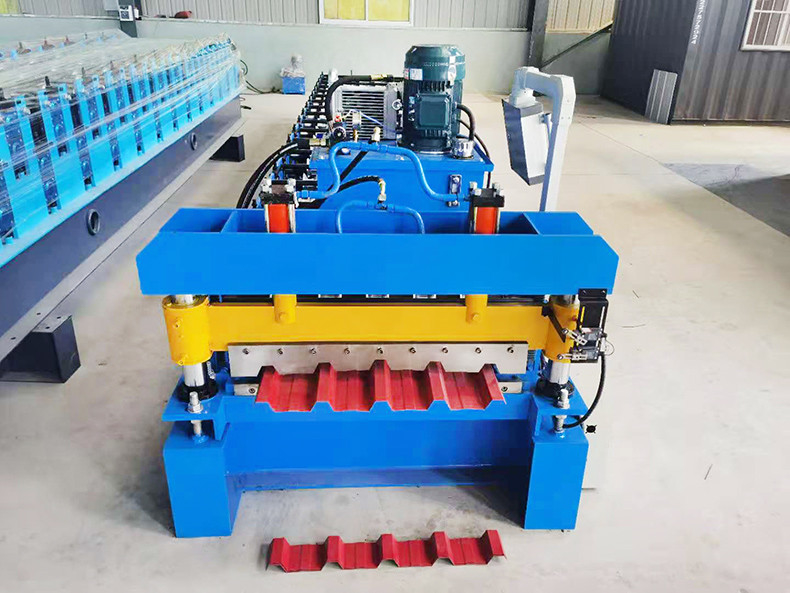

Steel Roofing Tile Glazed Tile Roll Forming Machine Long Span Machine

Different Good quality glazed steel roof tile making machine with different rolls can produce different shapes of steel roof, wall sheets according to the clients' profile drawings and requirement. Steel roof, wall sheets are new building materials with various thickness and colors. They have many advantages, such as low cost, easy installation, short building period, recycle use, beautiful appearance, and are light weight but high strength. They are used as the roof and walls of gymnasiums, airports, theatres, factories, warehouses, garages, exhibition centers, etc.

Specification

Steel roofing tile glazed tile roll forming machine Step tile sheet machine
1	Main frame	250mm H-sections
2	Side board thickness	14mm
3	Main motor power	4kw
4	Power supply	380V 50Hz 3phases
5	Shaft number	3 rows
6	Shaft material	Carbon steel 45#
7	Shaft diameter	70mm
8	Rolling wheel material	Carbon steel 45# with chrome plated
9	Hydraulic pump motor power	4kw
10	Chain size	33mm
11	Control system	PLC Delta inverter
12	Production rate	4-8m/min
13	Feeding tiles	Formed tiles
14	Finished specification	According to the formed tiles
15	Overall size	30001300600mm
16	Total weight	About 0.5 Ton
Parameters above is the standard configuration Parameters can be designed as per your special requests.

Guarantee

1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.

2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation

Payment terms

40% in advance as down payment

60% is paid before the shipment is processed

Delivery

FOB: Tianjin Xingang Port

The Delivery Time: 30 days after the down payment is received.
