Name: Downpipe Aluminium Gutter Profile Roll Forming Machine Automatic
Brand: Cangzhou Famous International Trading Co., Ltd
SKU: maszyna do formowania rolki rurowej
Price: 16,500.00 USD
Availability: InStock

Do domu > produkty > maszyna do formowania rolki rurowej >

Downpipe Aluminium Gutter Profile Roll Forming Machine Automatic

Downspout Roll Forming Machine Automatic

Downpipe Profile Roll Forming Machine

10m/min Downspout Roll Forming Machine

Miejsce pochodzenia:

CHINY

Nazwa handlowa:

CANGZHOU FMS

Orzecznictwo:

ISO CE

Numer modelu:

maszyna do formowania rolki rurowej

Skontaktuj się z nami

Poproś o wycenę

Szczegóły produktu

Nazwa produktu:

Automatyczna maszyna do formowania rolek aluminiowych rur spustowych

Wydajność produkcyjna:

8-10m/min

Moc:

5,5 kW

Wymiar (L*W*H):

8,5 m*1,7 m*1. 2 m

Grubość stali:

0,35-0,7 mm

Woltaż:

380 V 50 Hz 3 fazy lub zgodnie z wymaganiami

Automatyzacja:

Pełny automatyczny

Moc silnika:

5,5 kW

Podkreślić:

Downspout Roll Forming Machine Automatic

Downpipe Profile Roll Forming Machine

10m/min Downspout Roll Forming Machine

Warunki płatności i wysyłki

Minimalne zamówienie

1 zestaw

Cena

negotiable

Szczegóły pakowania

20' FLC

Czas dostawy

30 dni roboczych

Zasady płatności

L/C, T/T, D/A, D/P

Możliwość Supply

20 zestawów miesięcznie

Powiązane produkty

Mobile Vegetable Planting Trough Forming Machine with Hydraulic Motor 5.5KW and 8-15m/min Production Capacity for Greenhouse Vegetable Cultivation

Uzyskaj najlepszą cenę

Portable Gutter Roll Forming Machine with 500mm Feeding Width and 8-15m/min Production Capacity for Various Growing Methods

Uzyskaj najlepszą cenę

Mobile Greenhouse Vegetable Planting Trough Forming Machine With Quickly And Efficiently 5.5KW Hydraulic Motor

Uzyskaj najlepszą cenę

Portable Greenhouse Planting Trough Forming Machine with Hydraulic Motor 5.5KW 380V/50Hz/3Phase and 45# Steel Shaft

Uzyskaj najlepszą cenę

Skontaktuj się z nami

86-317-2016816

Skontaktuj się teraz

Opis produktu

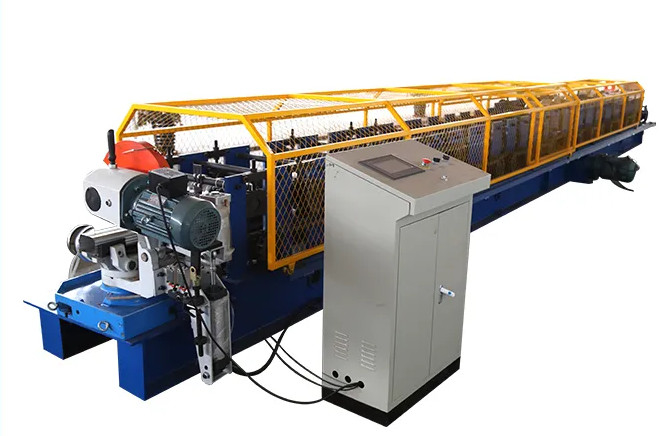

Downpipe Aluminium Gutter Profile Roll Forming Machine Automatic

Downpipe Aluminium Gutter Profile Roll Forming Machine Automatic Process Flow:
Un - coiler roll forming M/C - PCLcontrol System - hydraulic Cutting - Discharge table

Square Down Pipe Roll Forming Machine Downspout Forming Machine is one type of interlock pipe making machine. A downspout is a pipe taht runs vertically along the side of the home,it is connected at the top to a hole in the gutter channel,the other end bends outward and usually sits several inches above the ground.This allows the water to flow away from the homes it exits the pipe.A gutter is a channel installed at or just below the roof line at the edges of the home where the roof slopes downward.

Specification

Description	Explaination
Working speed	8-10m/min(Including shear time)
Pressed plate thickness	0.3-0.8mm
Control mode	Panasonic PLC
Decoiler	5 t manual decoiler
Number of molding passes	16 lanes
Roll material	After finishing, the surface of 45# steel is chrome plated.
Shaft material and diameter	45# Steel finishing,Shaft diameter is￠70mm
Main engine power	5.5kw
Power of hydraulic station	5.5kw
Hydraulic pressure	12Mpa
Scissors material	Cr12Mov, quench HRC 58-62℃
Length tolerance	3m±1.5mm
Voltage	380V, 50HZ,3 phase(According to customer requirements can be adjusted)
Transmission mode	1.0 inch single row chain
Equipment size	LWH—8.5m1.7m1. 2m

Installation

During the installation and adjustment of the equipment, our engineers shall provide the training to the buyer’s personal request to operate and maintain the equipment. Including foundation construction, electrical works, hydraulic oil, safe operation, and non-standard safety items, testing material and etc.

Guarantee

The warranty will be maintenance, maintain in the guarantee period of 18 months starting from delivery. Because of the quality of equipment during the guarantee period, we will provide the parts free of charge, which is in the conditions of correct operation. (Natural disasters or factors which can’t be forced by human are excluded).

Payment terms

40% in advance

60% is paid before shipping
