Metal Roof Tile Roll Forming Machines Double Layer 10 - 18 M/Min

Metal Roof Tile Roll Forming Machines

Double Layer Roof Tile Roll Former

18m/Min Roof Tile Roll Former

Miejsce pochodzenia:

CHINY

Nazwa handlowa:

FMS

Orzecznictwo:

CE,ISO

Skontaktuj się z nami

Poproś o wycenę

Szczegóły produktu

Opis produktu:

Maszyny do formowania rolek metalowych dachówek Maszyna do produkcji dwuwarstwowej

Typ płytek:

Kolorowa stal

Prędkość produkcji:

10--18 m/min

Wymiar (L*W*H):

7300 mm * 1500 mm * 1200 mm

Woltaż:

380 V 50 HZ 3 fazy lub na życzenie klienta

Waga:

6000 kg

Materiał z ostrza:

Stal wysokiej jakości Cr 12

Grubość rolki:

0,3-0,8 mm

Podkreślić:

Metal Roof Tile Roll Forming Machines

Double Layer Roof Tile Roll Former

18m/Min Roof Tile Roll Former

Warunki płatności i wysyłki

Minimalne zamówienie

1 zestaw

Szczegóły pakowania

Główna maszyna jest naga, skrzynka sterownicza komputera jest zapakowana w plastik.

Czas dostawy

30 dni

Zasady płatności

T/T, Western Union

Możliwość Supply

35 zestawów miesięcznie

Powiązane produkty

Wideo

High Speed Trapezoidal and glazed Double Layer Roof sheet roofing tile Forming Machine

Uzyskaj najlepszą cenę

Wideo

New Style Trapezoidal and glazed Double Layer Roof sheet roofing tile Forming Machine

Uzyskaj najlepszą cenę

Wideo

2025 factory price hot sale Trapezoidal and glazed Double Layer Roof sheet roofing tile Forming Machine

Uzyskaj najlepszą cenę

Wideo

2025 New Trapezoidal and glazed Double Layer Roof sheet roofing tile Roll Forming Machine

Uzyskaj najlepszą cenę

Skontaktuj się z nami

Skontaktuj się teraz

Opis produktu

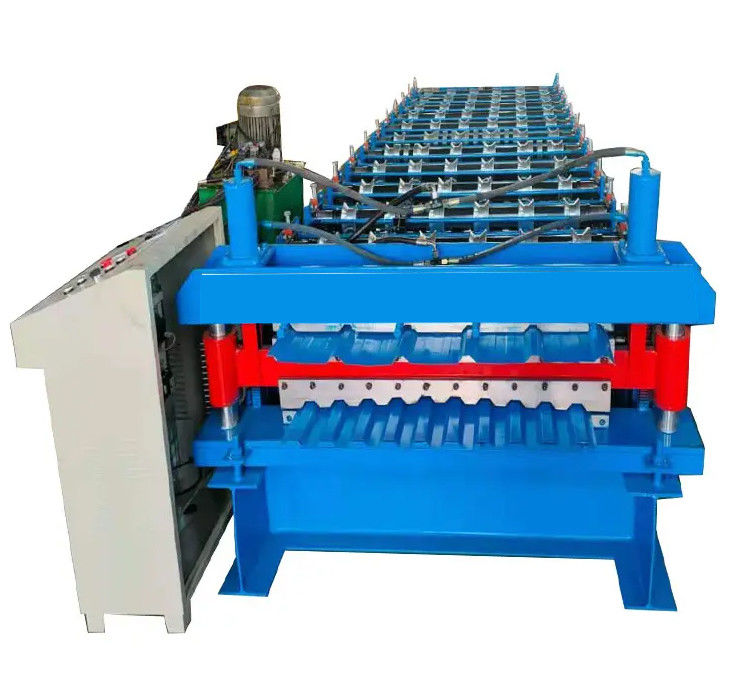

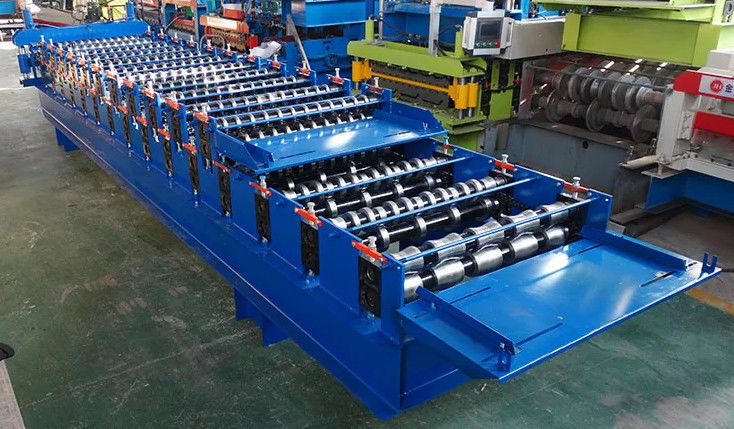

Metal Roof Tile Roll Forming Machines Double Layer Making Machine

Metal Roof Tile Roll Forming Machines Double Layer Making Machine, sharing the same decoiler, drive trains and motors, but using different rolls and different cut offs.The double layer machine is particularly useful where operating or storage space is a problem.For roof sheet, it include many type according to its different shape, popular type include corrugated tile roll forming machine, trapezoidal tile roll forming machine,glazed tile roll forming machine,

Detailed Parameters:

The total length of the equipment	Length 7300mm width 1500mm height 1200mm
Equipment weight	53 tons
The motor power	Motor 5.5Kw pump station 5.5Kw working voltage 380V or customized
Production speed	10--18 m/min
The transmission way	1 inch chain drive
rack	Large frame: 350H section steel
shaft	1064:14 row axis 1100:16row axis diameter 70 mm solid shaft
The thickness of the plate	14 mm
Set of	Galvanized pipe finishing, electrostatic spraying
Wheel material	45# steel hard chrome plating
The molding part	Divided into precision wheel rotation forming, forming effect is good, reduce the friction between wheels and raw materials, debugging convenient, fast.
Numerical control system	Easy control king, letter letter press button screen, counter,
shear	Iron plate welding frame, hydraulic cylinder automatic shear, hydraulic cylinder automatic pressure
In the thickness of the plate	0.3 mm - 0.8 mm
Into the plate width	1250 mm
accessories	Two sets of feeding rack, vulnerable parts
Warranty period	12 months

Guarantee

1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.

2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation

Payment terms

40% in advance as down payment

60% is paid before the shipment is processed

Delivery

FOB: Tianjin Xingang Port

The Delivery Time: 30 days after the down payment is received.
