Name: Standing Seam Roofing Panel Roll Forming Machine With Hydraulic Cutting
Brand: Cangzhou Famous International Trading Co., Ltd
SKU: Stojący szew
Price: 28,000.00 USD
Availability: InStock

Do domu > produkty > Maszyna do formowania rolek dachowych >

Standing Seam Roofing Panel Roll Forming Machine With Hydraulic Cutting

Hydraulic Cutting Standing Seam Roll Former

ISO Roofing Panel Roll Forming Machine

Hydraulic Roofing Panel Roll Forming Machine

Miejsce pochodzenia:

Chiny kontynentalne

Nazwa handlowa:

FMS

Orzecznictwo:

ISO

Numer modelu:

Stojący szew

Skontaktuj się z nami

Poproś o wycenę

Szczegóły produktu

Nazwa produktu:

Maszyna do formowania rolek paneli dachowych na rąbek stojący z cięciem hydraulicznym

Używać:

Stojący szew

Wymiar (L*W*H):

8.5m x 1.5m x 1.2m

Grubość rolki:

0,5-0,8

Waga:

5000 kg

Stan:

Nowy

Woltaż:

380 V/415 V/220 V, 50/60 Hz, 3 fazy

Zdolność produkcyjna:

18-20

Podkreślić:

Hydraulic Cutting Standing Seam Roll Former

ISO Roofing Panel Roll Forming Machine

Hydraulic Roofing Panel Roll Forming Machine

Warunki płatności i wysyłki

Minimalne zamówienie

1 zestaw

Cena

negotiable

Szczegóły pakowania

40' FLC

Czas dostawy

30 dni roboczych

Zasady płatności

L/C, T/T, D/A, D/P

Możliwość Supply

20 zestawów miesięcznie

Powiązane produkty

Wideo

Standard Corrugated Galvanized Sheets Machine Standard Corrugated Galvanized Sheets Line

Uzyskaj najlepszą cenę

Wideo

Corrugated Sheet Machine Corrugated Roofing Tile Roll Forming Machine

Uzyskaj najlepszą cenę

Wideo

Metal Roof Tile Trapezoidal Roll Forming Machine 5.5kw

Uzyskaj najlepszą cenę

Wideo

High Material Quality C89 Light Gauge Steel Framing Building Roll Forming Machine

Uzyskaj najlepszą cenę

Skontaktuj się z nami

86-317-2016816

Skontaktuj się teraz

Opis produktu

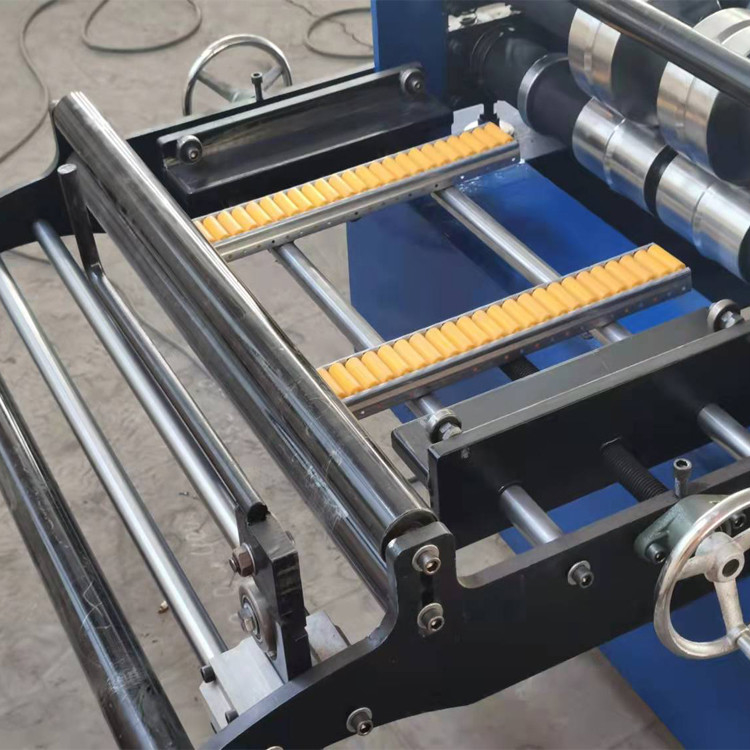

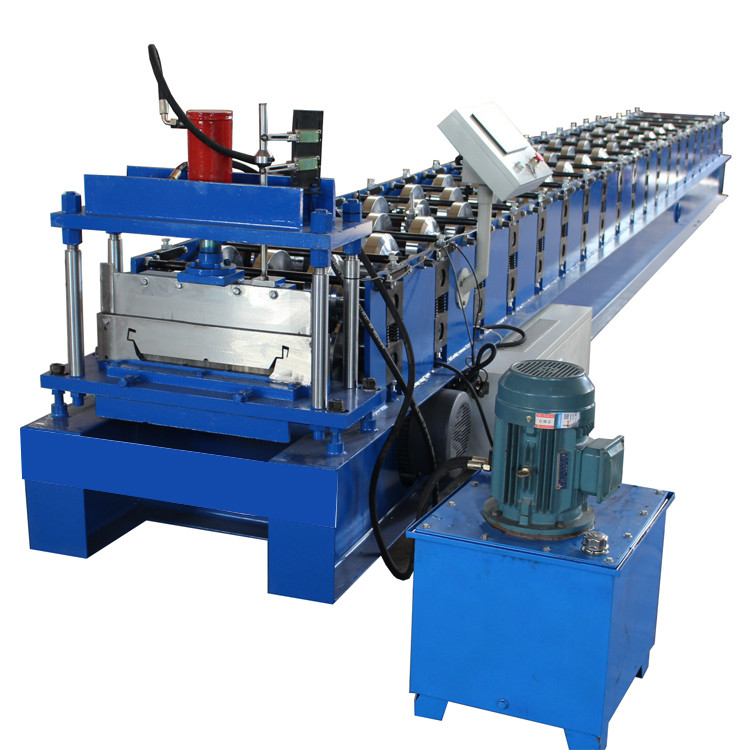

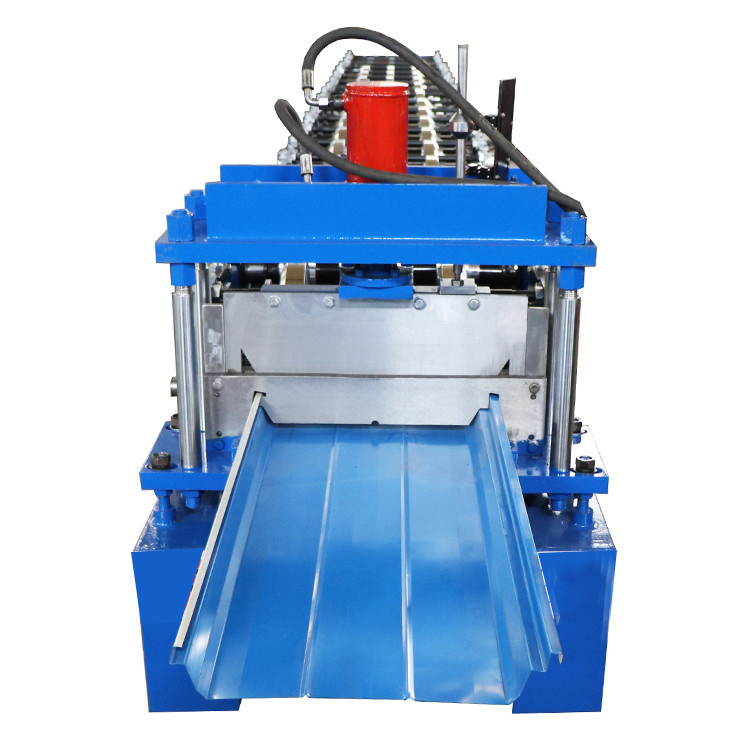

Standing Seam Roofing Panel Roll Forming Machine With Hydraulic Cutting

The advantages of Standing Seam Roofing Panel Roll Forming Machine Portable Full Automatic are as follows: 1.Low cost, light weight but high strength, short building period, and re-cycle use. 2.Easy operation, low maintenance cost. Rollers manufactured from high quality 40Cr steel, CNC lathes, Heat Treatment.with black treatment or Hard-Chrome Coating for options. Body frame made from 350# H type steel by welding. Made by high quality mold steel Cr12 with heat treatment.Cutter frame made from high quality 20mm steel plate by welding.hydraulic motor: 4KW, Hydraulic pressure range: 0-16Mpa

Specification

No.	Item	Description
1	Coil	Galvalume, Galvanized, PPGI, Aluminum
2	Main motor	5.5KW*2
3	Forming speed	15-18m/min
4	Cut-to-length tolerance	≤±2 mm
5	Dimension (LWH)	5.5M x 1.5M x 1.2M
6	Machine Weight	8310 kg
7	Electrical Control System	Panasonic PLC (can be customized)
8	Drive Motor Power	5 KW
9	Hydraulic Station Power	4 KW
10	Cutting Accuracy	±2 mm

Guarantee

1. We guarantee that there will be no failure due to manufacturing defects within one year from the date of purchase, except for electrical parts.

2. Under the following circumstances, maintenance will not be carried out even within the warranty period

-Damage caused by natural disasters

-Failure due to user error

-Failure due to modification

-Failure due to further movement or transportation after installation

Payment terms

40% in advance as down payment

60% is paid before the shipment is processed

Delivery

FOB: Tianjin Xingang Port

The Delivery Time: 30 days after the down payment is received.
