Name: 4kw Metal Galvanized Downspout Roll Forming Machine 8-12m/Min
Brand: Cangzhou Famous International Trading Co., Ltd
SKU: maszyna do formowania rolek spustowych
Price: 16,500.00 USD
Availability: InStock

Do domu > produkty > maszyna do formowania rolki rurowej >

4kw Metal Galvanized Downspout Roll Forming Machine 8-12m/Min

Downspout Roll Forming Machine 12m/Min

downspout making machine 12m/Min

4kw Downspout Roll Forming Machine

Miejsce pochodzenia:

CHINY

Nazwa handlowa:

CANGZHOU FMS

Orzecznictwo:

ISO CE

Numer modelu:

maszyna do formowania rolek spustowych

Skontaktuj się z nami

Poproś o wycenę

Szczegóły produktu

Nazwa produktu:

Maszyna do formowania rynien ocynkowanych Maszyna do formowania rolek metalowych rynien spustowych

Zdolność produkcyjna:

8-12m/min

Materiał z ostrza:

Kr 12 Mov

Grubość rolki:

0,3-0,8 mm

Wymiar (L*W*H):

7800*1200*1400MM

Waga brutto na jednostkę produktu:

6500 kg

Woltaż:

3 fazy 380 V 50 Hz lub zgodnie z wymaganiami

System sterowania:

PCL

Szerokość karmienia:

Stosownie do życzenia

Podkreślić:

Downspout Roll Forming Machine 12m/Min

downspout making machine 12m/Min

4kw Downspout Roll Forming Machine

Warunki płatności i wysyłki

Minimalne zamówienie

1 zestaw

Cena

negotiable

Szczegóły pakowania

20' FLC

Czas dostawy

30 dni roboczych

Zasady płatności

L/C, T/T, D/A, D/P

Możliwość Supply

35 zestawów miesięcznie

Powiązane produkty

Mobile Vegetable Planting Trough Forming Machine with Hydraulic Motor 5.5KW and 8-15m/min Production Capacity for Greenhouse Vegetable Cultivation

Uzyskaj najlepszą cenę

Portable Gutter Roll Forming Machine with 500mm Feeding Width and 8-15m/min Production Capacity for Various Growing Methods

Uzyskaj najlepszą cenę

Mobile Greenhouse Vegetable Planting Trough Forming Machine With Quickly And Efficiently 5.5KW Hydraulic Motor

Uzyskaj najlepszą cenę

Portable Greenhouse Planting Trough Forming Machine with Hydraulic Motor 5.5KW 380V/50Hz/3Phase and 45# Steel Shaft

Uzyskaj najlepszą cenę

Skontaktuj się z nami

86-317-2016816

Skontaktuj się teraz

Opis produktu

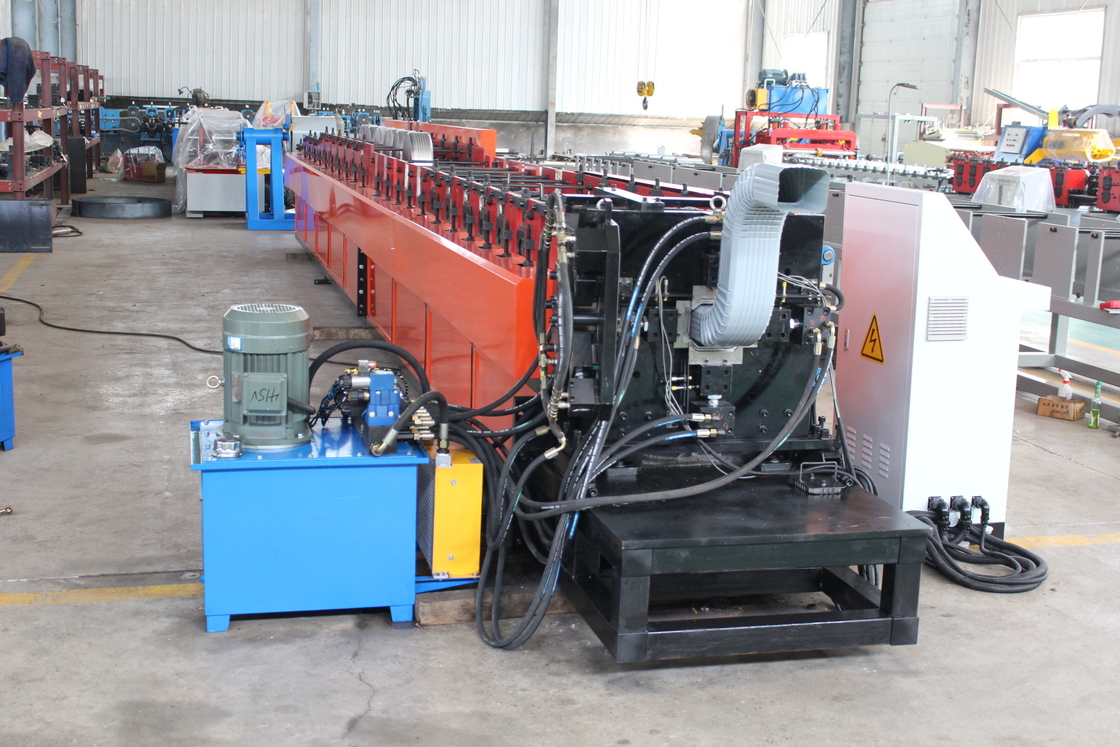

Metal Galvanized Downspout Roll Forming Machine Downspout Bending Machine

The galvanized drop -type metal drainage ditch molding machine can bend the rolling pipe and allow the drain pipe to connect to the whole. The working hours of rolling products are longer than plastic tubes, not aging. It can make the project more integrated and help enhance the image of all projects. The device is controlled by PLC, the frequency of AC and adjusting speed technology, and aware of the continuous production of continuous production. Therefore, it is indeed a new type of energy saving and efficient production equipment for steel structures.

Specification

Galvanized Gutter Making Machine Downspout Metal Gutter Roll Forming Machine
Processing material	aluzinc/galvanized steel/colored steel coil
Material thickness	0.3-0.8mm
Frame design	According to customer requested
Main motor power	4 kw
Material of forming roller	45# steel, CNC lathes, Hard Chrome Coated
Shafts Diameter	Φ75mm
Main motor power	7.5KW
Max. Line speed of roll former	15m/min (Higher speed is available, depends on the specification required by the buyer)
Hydraulic group power	4KW
Material of cutting blade	Cr12, hear treatment
Electric Standard	380V /50Hz/3PH or as per customer's requirements
Main frame	300H steel

Installation

During the installation and debugging of the device, our engineers should provide the buyer's personal request to provide training and maintenance of the equipment. Including basic buildings, electrical engineering, hydraulic oil, safety operations and non -standard safety items, test materials, etc.

Guarantee

The warranty will be maintained and during the delivery period during the delivery period. Due to the quality of the equipment during the guarantee period, we will provide parts for free, which is the correct operating condition. (Natural disasters or factors that humans cannot force are excluded).

Payment terms

40% in advance, 60% is paid before shipping after pass the inspection
