Name: 3phases Rain Water Downspout Roll Forming Machine Suitable Materials Thickness 0.4-0.8mm
Brand: Cangzhou Famous International Trading Co., Ltd
SKU: Downspout Plus Łokieć
Price: 16,500.00 USD
Availability: InStock

Do domu > produkty > maszyna do formowania rolki rurowej >

3phases Rain Water Downspout Roll Forming Machine Suitable Materials Thickness 0.4-0.8mm

0.8mm Downspout Roll Forming Machine

0.8mm downspout making machine

3phases Downspout Roll Forming Machine

Miejsce pochodzenia:

Chiny kontynentalne

Nazwa handlowa:

CANGZHOU WILLING

Orzecznictwo:

ISO CE

Numer modelu:

Downspout Plus Łokieć

Skontaktuj się z nami

Poproś o wycenę

Szczegóły produktu

Nazwa produktu:

Aluminiowe kolanka Prostokątne / okrągłe kolanka Maszyna do formowania rolek spustowych

Surowiec:

PPGI, AL, GI

Woltaż:

380 V 50 Hz 3 fazy

System sterowania:

PLC

Zapewniona obsługa posprzedażna:

wsparcie techniczne przez cały okres użytkowania

Gwarancja:

1 rok

Podkreślić:

0.8mm Downspout Roll Forming Machine

0.8mm downspout making machine

3phases Downspout Roll Forming Machine

Warunki płatności i wysyłki

Minimalne zamówienie

1 zestaw

Cena

negotiable

Szczegóły pakowania

20' FLC

Czas dostawy

30 dni roboczych

Zasady płatności

L/C, T/T, D/A, D/P

Możliwość Supply

20 zestawów miesięcznie

Powiązane produkty

Mobile Vegetable Planting Trough Forming Machine with Hydraulic Motor 5.5KW and 8-15m/min Production Capacity for Greenhouse Vegetable Cultivation

Uzyskaj najlepszą cenę

Portable Gutter Roll Forming Machine with 500mm Feeding Width and 8-15m/min Production Capacity for Various Growing Methods

Uzyskaj najlepszą cenę

Mobile Greenhouse Vegetable Planting Trough Forming Machine With Quickly And Efficiently 5.5KW Hydraulic Motor

Uzyskaj najlepszą cenę

Portable Greenhouse Planting Trough Forming Machine with Hydraulic Motor 5.5KW 380V/50Hz/3Phase and 45# Steel Shaft

Uzyskaj najlepszą cenę

Skontaktuj się z nami

86-317-2016816

Skontaktuj się teraz

Opis produktu

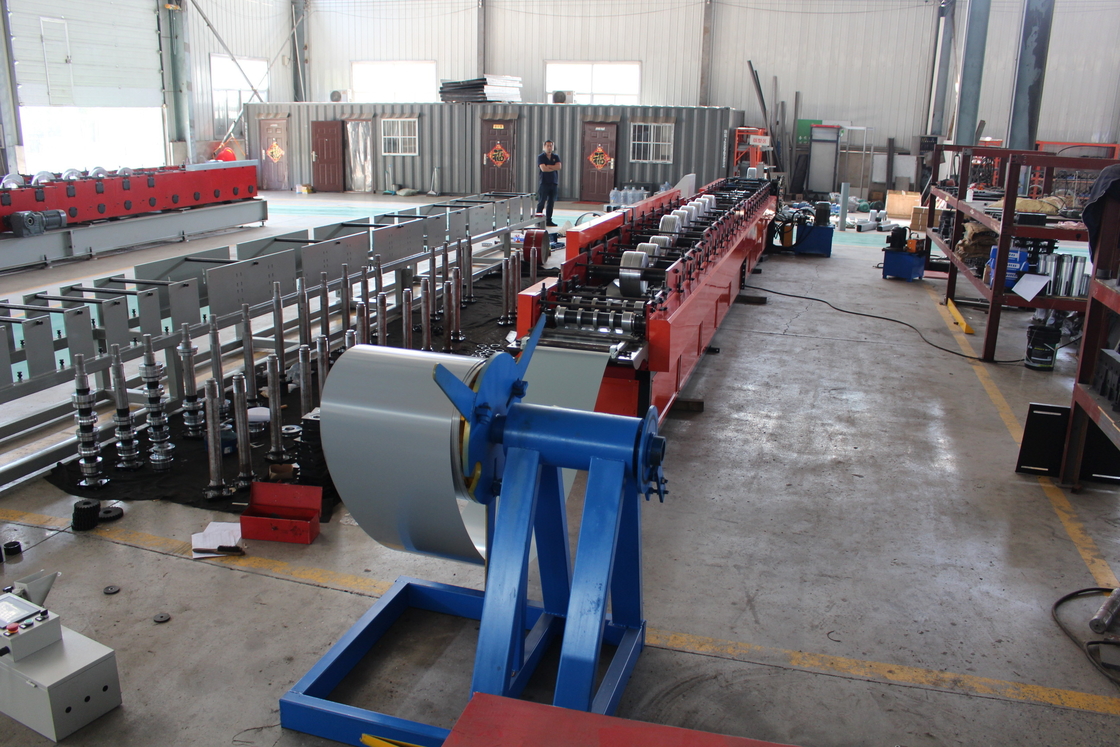

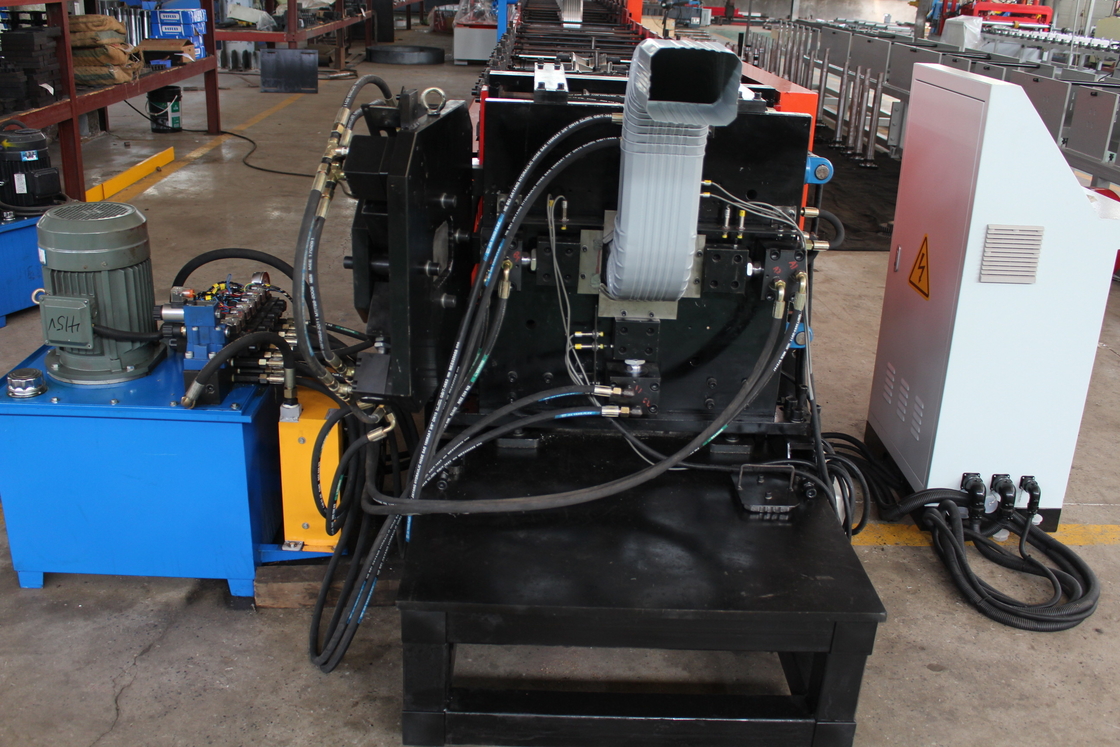

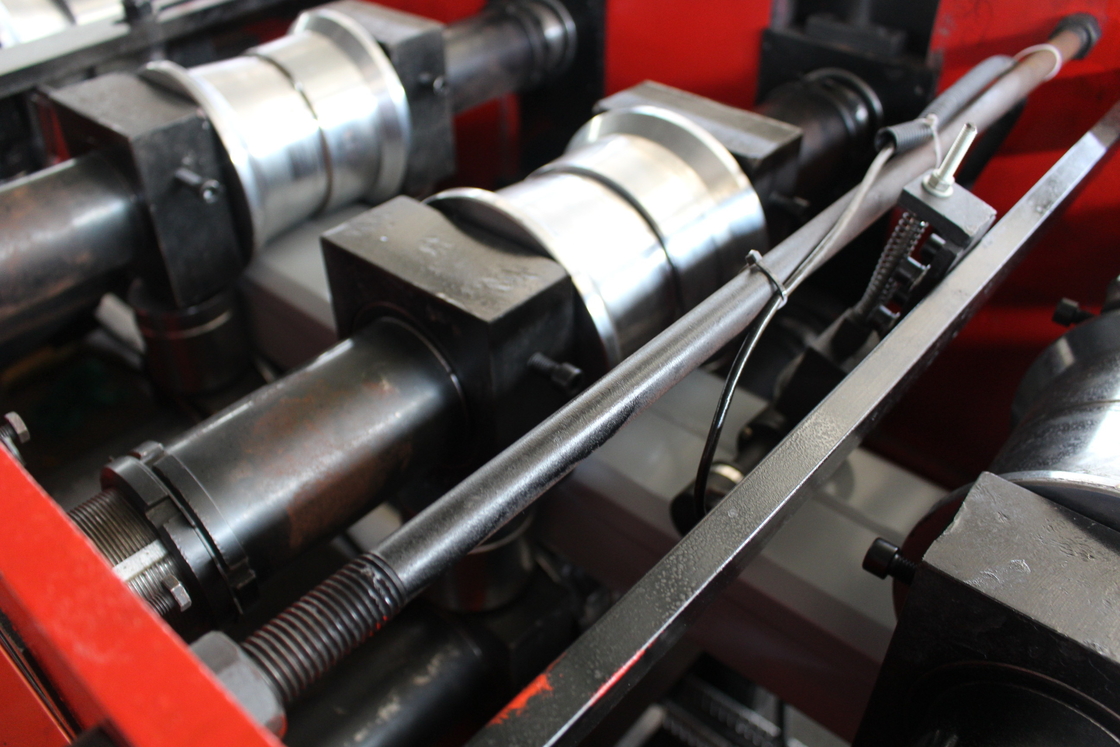

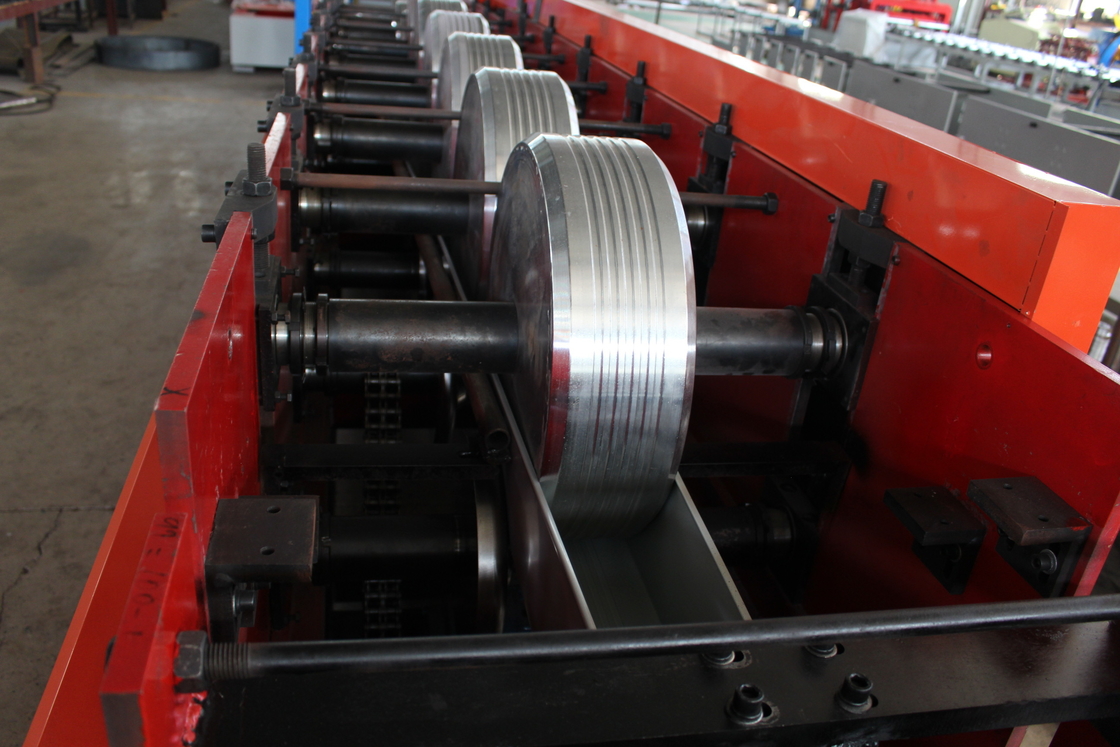

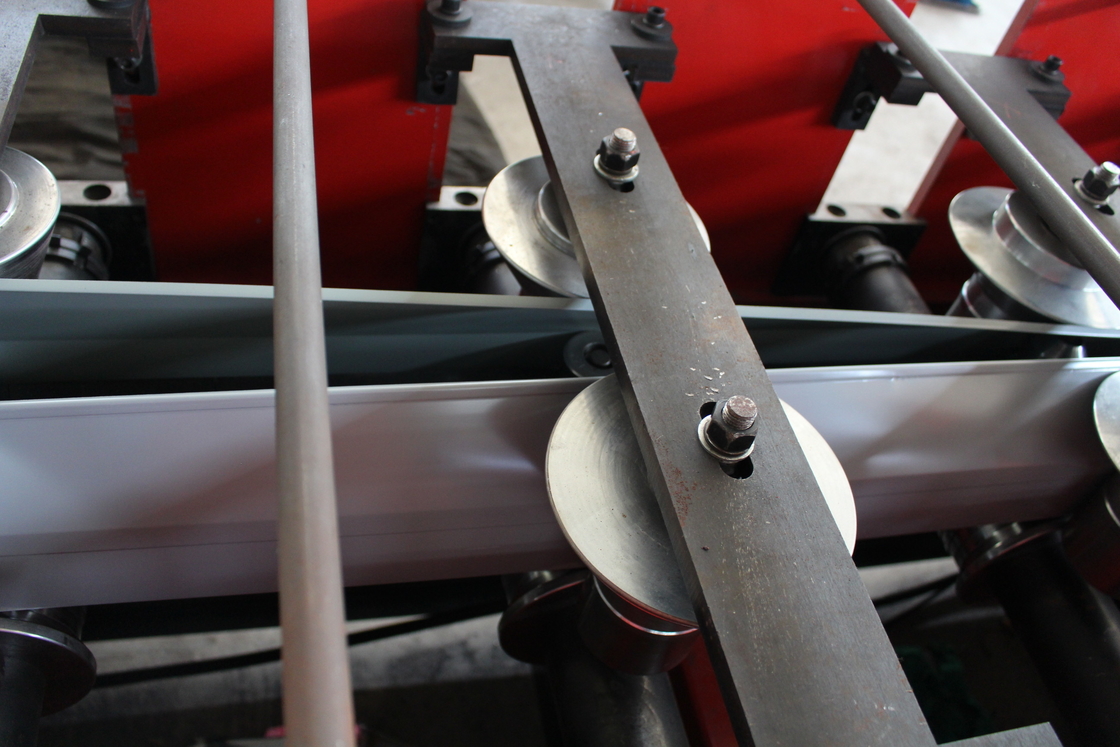

Rain Water Downspout Roll Forming Machine Elbow Bending Suitable Materials Thickness 0.4 - 0.8mm

Downspout elbows connect to downspouts. In order to fit inside another elbow or downspout, one end of the gutter elbow is crimped. To direct drainage in a particular direction, downspouts are equipped with elbows at ground level.

Profile

Specification

No.	Item	Description
1	Coil	Galvalume, Galvanized, PPGI
2	Raw Material Thickness	0.3 mm - 0.8 mm
3	Working Speed	8-15 m/min
4	Roller Station	20 Stations
5	Dimension (LWH)	9200 mm800 mm1200 mm
6	Machine Weight	9000 KG
7	Electrical Control System	PLC (can be customized)
8	Drive Motor Power	5.5 KW
9	Hydraulic Station Power	4 KW
10	Power Supply	380V, 60HZ, 3 PHASES(can be customized)
11	Cutting Accuracy	± 2 mm
12	Driving Mode	Single Chain 1 inch
13	Material of Shaft	60 mm 45#steel forged
14	Material of Roller	45# Steel Finish Machining, Plated Hard

Application

Guarantee

1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.

2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation

Payment terms

40% in advance as down payment

60% is paid before the shipment is processed

Delivery

FOB: Tianjin Xingang Port

The Delivery Time: 30 days after the down payment is received.
