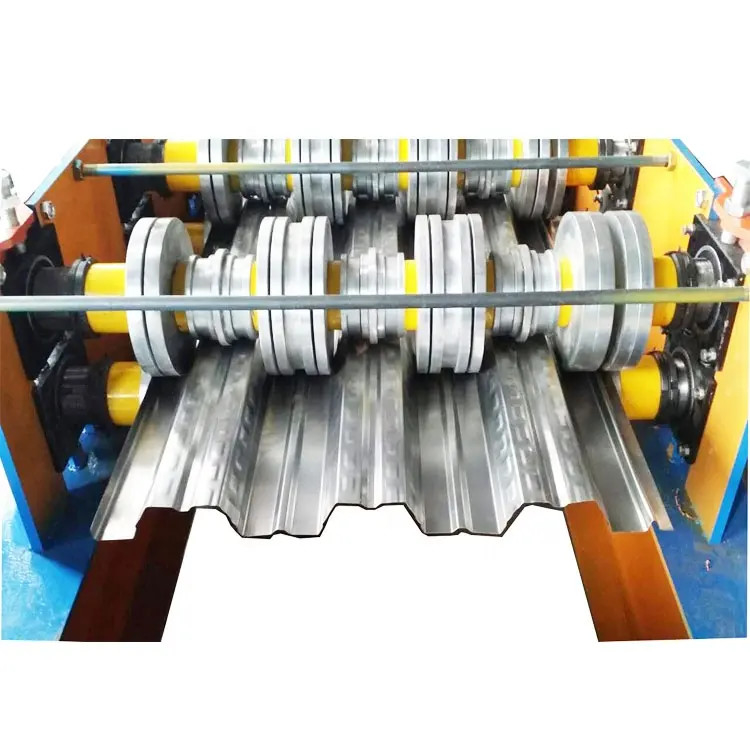

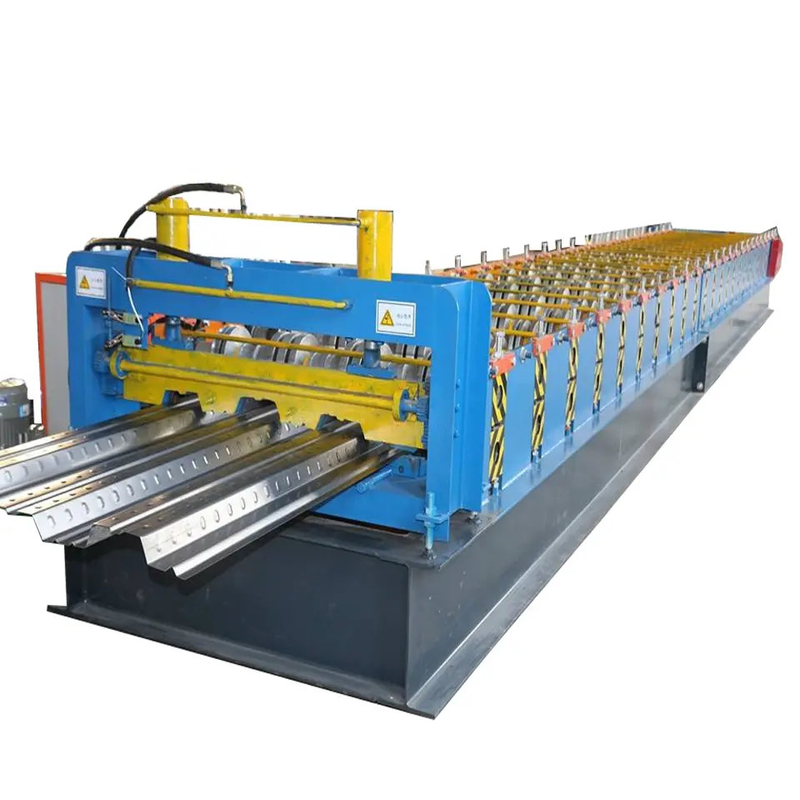

Name: 22KW Motor Power Steel Decking Floor Roll Forming Machine 10-12m/Min
Brand: Cangzhou Famous International Trading Co., Ltd
SKU: pokład podłogi
Price: 26,500.00 USD
Availability: InStock

Do domu > produkty > Maszyna do formowania rolki podłogowej >

22KW Motor Power Steel Decking Floor Roll Forming Machine 10-12m/Min

22KW steel deck roll forming machine

22KW floor deck roll forming machine

floor deck roll forming machine 12m/Min

Miejsce pochodzenia:

Chiny kontynentalne

Nazwa handlowa:

FMS

Orzecznictwo:

ISO CE

Numer modelu:

pokład podłogi

Skontaktuj się z nami

Poproś o wycenę

Szczegóły produktu

Nazwa produktu:

Maszyna do formowania rolek z metalowym pokładem o mocy 22 kW, prędkość formowania 10-12 m / min

Materiał z ostrza:

CR12 wygaszone

Rama maszyny:

Stal 400H lub 450H

Materiał wału:

Wysokiej jakości kute nr 45

Waga:

6.0t

Woltaż:

380 V 50 Hz 3 fazy

Zdolność produkcyjna:

10-12m/min

Grubość rolki:

0,8-1,5 mm

Wymiar (L*W*H):

11500*1500*1500mm

Moc silnika hydraulicznego:

3kw-7,5kw

Podkreślić:

22KW steel deck roll forming machine

22KW floor deck roll forming machine

floor deck roll forming machine 12m/Min

Warunki płatności i wysyłki

Minimalne zamówienie

1 zestaw

Cena

negotiable

Szczegóły pakowania

40' FLC

Czas dostawy

30 dni roboczych

Zasady płatności

L/C, T/T, D/A, D/P

Możliwość Supply

20 zestawów miesięcznie

Powiązane produkty

Wideo

Cellular Composite Roofing Sheet Making Machine 3.0" Width 0.8-2.0MM Thickness

Uzyskaj najlepszą cenę

Wideo

13 Rows Roof Tile Roll Forming Machine For Tipo Teja Americana Normal Tile

Uzyskaj najlepszą cenę

Wideo

Decking Flooring Board 1.2mm Floor Tile Making Machine

Uzyskaj najlepszą cenę

Wideo

45 Steel Deck Roll Forming Machine Cold ±2mm Cutting Tolerance Excellent Performance

Uzyskaj najlepszą cenę

Skontaktuj się z nami

86-317-2016816

Skontaktuj się teraz

Opis produktu

22KW Motor Power Metal Floor Deck Roll Forming Machine 10-12m/Min Forming Speed

Working flow

Decoiler----feeding----roll forming----pressing----cut to length----output table

Features of Deck Floor Roll Forming Machine:

The metal deck produced by floor decking roll forming line has high strength with big wave length. It adheres well to concrete. Used on high building, it not only saves steel mold plate, but also reduces the weight of storey. With the same bearing capacity, it economized steel and cuts down investment accordingly. We can also supply the customized machines.

Applications of Deck Floor Roll Forming Machine:

The finished products are widely used in floor flat, after make embossing of the sheet, it will increase the strength between the steel and concrete, thereby increasing the floor of the fastness.

Specification

Cutting & Hydraulic type	Cut slide/Double guide pillar
Feeding Thickness	0.8mm -1.5mm
Hydraulic motor power	7.5kw
Effective width	Better as your drawing or from our designer
Cutting drive	Decelerating motor Chain drive gear all by high frequency
Productivity	10-12m/min
Length measurement	Encoder
Roll material	45#steel
Control System	Panasonic/Siemens/Schneider/Delta PLC Colored Touch Screen
Cutter material	Cr12 mould steel heat-treated hardness of HRC=60-62 degrees
Chain Size	1 inch/2 inch
Overall Size	Size of our designer
Backboard Thickness	17mm-200mm
Total Weight	5t-12t
Feeding Material	Better as your drawing or from our designer

Guarantee

1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.

2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation

Payment terms

40% in advance as down payment

60% is paid before the shipment is processed

Delivery

FOB: Tianjin Xingang Port

The Delivery Time: 30 days after the down payment is received.
