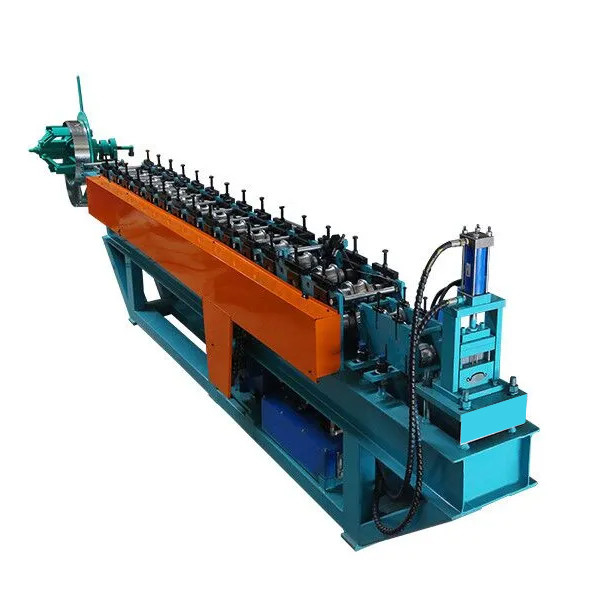

Name: Fast Speed Roller Shutter Door Forming Machine 14-16m/Min Power Saving
Brand: Cangzhou Famous International Trading Co., Ltd
SKU: drzwi żaluzjowe
Price: 12000.00 USD
Availability: InStock

Do domu > produkty > Maszyna do formowania rolek drzwi żaluzjowych >

Fast Speed Roller Shutter Door Forming Machine 14-16m/Min Power Saving

Fast Speed Roller Shutter Door Forming Machine

Roller Shutter Door Forming Machine 16m/Min

shutter door roll forming machine Power Saving

Miejsce pochodzenia:

Chiny kontynentalne

Nazwa handlowa:

CANGZHOU FMS

Orzecznictwo:

ISO CE

Numer modelu:

drzwi żaluzjowe

Skontaktuj się z nami

Poproś o wycenę

Szczegóły produktu

Nazwa produktu:

Wysokiej jakości maszyna do formowania rolek do drzwi roletowych Maszyna do drzwi roletowych

Materiał roboczy:

Blacha ocynkowana (GI), stal walcowana na zimno (CRC)

Prędkość pracy:

14-16m/min

Grubość:

0,3-0,8 mm

Woltaż:

380 V 50 Hz, 380 V. 50 Hz. 3 fazy

Waga:

7000 kg

Materiał tnący:

Stal narzędziowa Cr12Mov

WAŁ:

50 mm

Moc:

22 kW

Materiał rolka:

45 # stal wysokiej jakości

Podkreślić:

Fast Speed Roller Shutter Door Forming Machine

Roller Shutter Door Forming Machine 16m/Min

shutter door roll forming machine Power Saving

Warunki płatności i wysyłki

Minimalne zamówienie

1 zestaw

Cena

negotiable

Szczegóły pakowania

20' FLC

Czas dostawy

30 dni roboczych

Zasady płatności

L/C, T/T, D/A, D/P

Możliwość Supply

20 zestawów miesięcznie

Powiązane produkty

Wideo

Metal Chain Driving Shutter Door Roll Forming Machine Speed 20-30m/Min

Uzyskaj najlepszą cenę

Wideo

Customized High Speed PU Door Roller Shutter Roll Forming Machine

Uzyskaj najlepszą cenę

Wideo

3T Shutter Door Roll Forming Machine For 0.8-1.2mm Thickness And 6.5m0.95m1.2m Size

Uzyskaj najlepszą cenę

Wideo

45 Steel Roller Material Shutter Door Roll Forming Machine with 7.5KW PLC Control System

Uzyskaj najlepszą cenę

Skontaktuj się z nami

86-317-2016816

Skontaktuj się teraz

Opis produktu

High Quality Roller Shutter Door Roll Forming Machine Roller Shutter Door Machine

High Quality Roller Shutter Door Roll Forming Machine Roller Shutter Door MachineWork Follow:

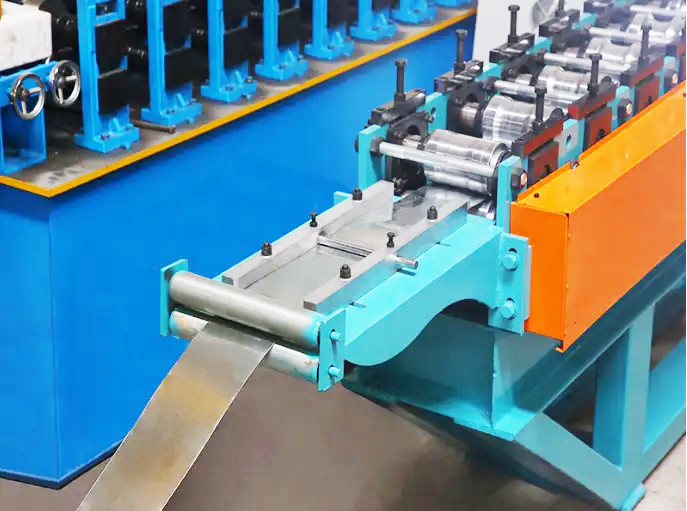

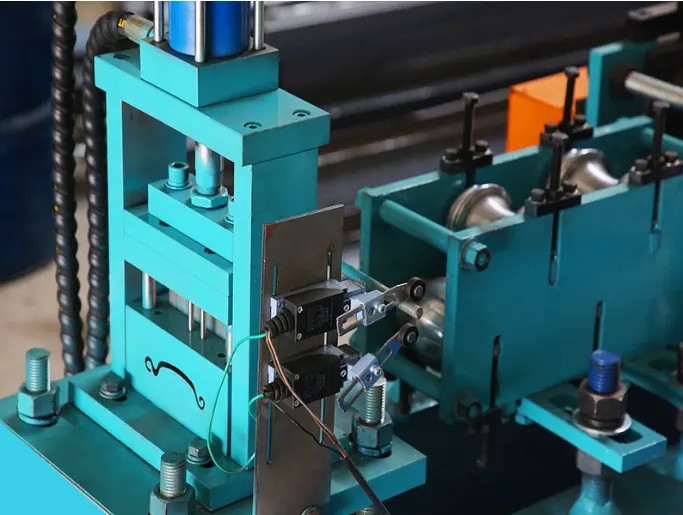

Decoiler→Feed Guide Device→Rolling Forming System→Leveling Device →Hydraulic Post Cutting Device→Exit Rack

Roll forming machines have a variety of applications, like steel doors industry. FMS is experienced in the designing and building for various steel door components roll forming machines.

During years of experience in roll forming developing and researching, FMS supplies optimal roll forming machines for the manufacturing of steel doors; the most common door products roll formers that can be found in the markets are like steel rolling shutter panel roll forming machine, rolling shutter slat roll forming machine, door track or guide rail roll forming machine and steel safety door frame roll forming machine etc.

Specification

Body frame made	400#H type steel by welding
Voltage	380V 50Hz
Weight	7000kg
Real forming speed	14-16m/min
Power	22Kw
Side wall thickness	Q235 t18mm
Shaft Diameter	φ50mm, precision machined
Main motor	5.5KW,frequency speed control
Chain size	one inch with 18 teeth
Roll material	45# high grade steel
Cutting blade material	Cr 12 high grade steel
Hydraulic motor	3KW
Core Components	Motor, PLC
Cutting pressure	0-16Mpa,
Material Thickness	0.5-0.8mm;0.8-1.2mm
Dimension(LWH)	20112m

Guarantee

1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.

2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation

Payment terms

40% in advance as down payment

60% is paid before the shipment is processed

Delivery

FOB: Tianjin Xingang Port

The Delivery Time: 30 days after the down payment is received.
