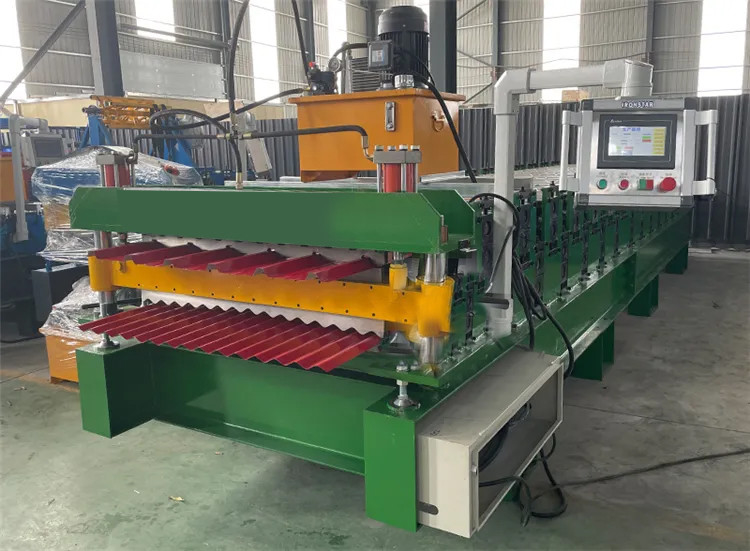

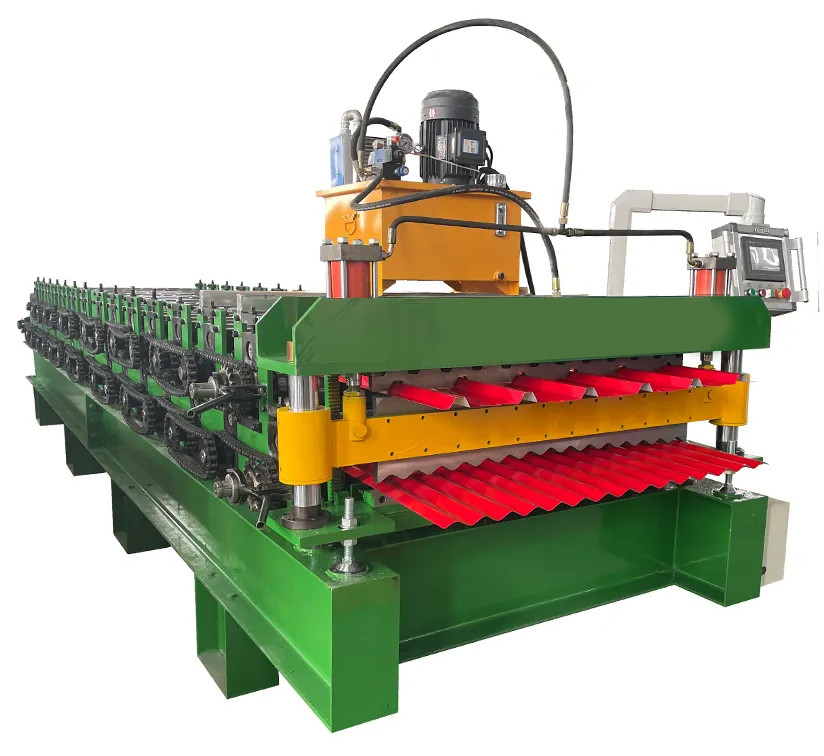

Name: Ibr And Corrugated Double Layer Roll Forming Machine Fully Automated Plc Control
Brand: Cangzhou Famous International Trading Co., Ltd
SKU: Podwójna warstwa
Price: 15000.00 USD
Availability: InStock

Do domu > produkty > dwuwarstwowa maszyna do formowania rolek >

Ibr And Corrugated Double Layer Roll Forming Machine Fully Automated Plc Control

Double Layer Forming Machine Fully Automated

ibr roll forming machine Fully Automated

ibr roll forming machine Plc Control

Miejsce pochodzenia:

Chiny kontynentalne

Nazwa handlowa:

FMS

Orzecznictwo:

ISO CE

Numer modelu:

Podwójna warstwa

Skontaktuj się z nami

Poproś o wycenę

Szczegóły produktu

Nazwa produktu:

Maszyna do formowania rolek dwuwarstwowych Ibr i tektury falistej Pełna automatyczna kontrola PLC

Wymiar (L*W*H):

5000*1500*1800mm

Surowiec:

Galvalume, ocynkowane

Zdolność produkcyjna:

10-20 m/min

Waga:

5000 kg

Materiał wałka:

45# Pokryte powłoką Cr

Moc hydrauliczna:

4 KW (w zależności od typu)

Zasilanie:

380 V 50 Hz 3 fazy (konfigurowalne)

Materiał do cięcia maszynowego:

CR12

Szerokość karmienia:

914 mm / 1000 mm / 1200 mm / 1220 mm / 1250 mm

Podkreślić:

Double Layer Forming Machine Fully Automated

ibr roll forming machine Fully Automated

ibr roll forming machine Plc Control

Warunki płatności i wysyłki

Minimalne zamówienie

1 zestaw

Cena

negotiable

Szczegóły pakowania

20' FLC

Czas dostawy

30 dni roboczych

Zasady płatności

L/C, T/T, D/A, D/P

Możliwość Supply

20 zestawów miesięcznie

Powiązane produkty

Wideo

2025 factory best price Trapezoidal and glazed Double Layer Roof sheet Forming Machine

Uzyskaj najlepszą cenę

Wideo

2025 factory price Trapezoidal and glazed Double Layer Roof sheetForming Machine

Uzyskaj najlepszą cenę

Wideo

2025 factory priceDouble Layer Roof sheetForming Machine

Uzyskaj najlepszą cenę

Wideo

2025 factory price Trapezoidal and glazed Double Layer Roof sheet roofing tile Roll Forming Machine

Uzyskaj najlepszą cenę

Skontaktuj się z nami

86-317-2016816

Skontaktuj się teraz

Opis produktu

Ibr And Corrugated Double Layer Roll Forming Machine Full Automatic Plc Control

Ibr And Corrugated Double Layer Roll Forming Machine Full Automatic Plc Control Main Features

This roll forming machine can roll form metal roofing sheet. After roll formed by this roll forming machine, the surface will be very smooth and beautiful without any scratch on surface.

Roll forming process: uncoiler, roll forming, cut to length, receive the finished product.

Fully Automatic Control System with PLC.

Easy operation: Key in the length and quantity on the control panel.

Two years warranty.

We also can do a customized roll forming machine, We can design the machine according to your specification and profile drawing.

The production size we can design the machine all as customize,customer just show us the profile drawing material thickness width,Different roof panel forming machines can produce different shapes of steel roof wall sheets according to the client’s profile drawings and requirements. The steel roof, wall sheets are new building materials with various thickness and colors.

Specification

Part Details	Item Name	Specification
Material	Raw Material	PPGI material
Material	Thickness	0.3-0.6 mm
Machine	Roller Station	12-18
	Shaft Material	70 mm
	Shaft Material	45# steel with 0.05mm chrome
	Roller Material	45# steel with 0.05mm chrome
	Machine Size	About 5.51.51.8m
	Machine Weight	About 5 ton
	Machine Color	As customer request
	Working Speed	10-20 m/min
Cutter	Hardness	50-65 HRC
	Cutting Tolerance	± 1mm
	Material	CR12
	Operate	Hydraulic cutting
Power	Driving Way	Chain 1 inch
	Main Power	5.5 KW
	Pump Power	4 KW
	Voltage	380v 50hz 3P, or Customize as Customer' request
Control System	PLC Brand	Delta made in Taiwan
	Screen	Touchable Screen
	Language	Chinese, English or Add customer' need
Decoiler	Operation	Manual
	Weight Capacity	3 ton
	Price	Free as gift
Receiving Table	Operation	Manual
	Length	3m

Guarantee

1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.

2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation

.

Payment terms

30% in advance as down payment
70% is paid before the shipment is processed

Delivery

FOB: Tianjin Xingang Port
The Delivery Time: 30 days after the down payment is received. Ibr And Corrugated Double Layer Roll Forming Machine Fully Automated Plc Control 0
