Name: 840 900 Double Layer IBR Type Roof Cold Roll Forming Machine PLC Control
Brand: Cangzhou Famous International Trading Co., Ltd
SKU: Podwójna warstwa
Price: 15000.00 USD
Availability: InStock

Do domu > produkty > dwuwarstwowa maszyna do formowania rolek >

840 900 Double Layer IBR Type Roof Cold Roll Forming Machine PLC Control

IBR Type Roof Cold Roll Forming Machine

Roof Cold Roll Forming Machine PLC Control

IBR Type Double Layer Forming Machine

Miejsce pochodzenia:

Chiny kontynentalne

Nazwa handlowa:

FMS

Orzecznictwo:

ISO CE

Numer modelu:

Podwójna warstwa

Skontaktuj się z nami

Poproś o wycenę

Szczegóły produktu

Nazwa produktu:

Nowa konstrukcja 840 900 Dwuwarstwowa maszyna do formowania dachowego na zimno typu IBR

Wymiar (L*W*H):

7,5 m*1,6 m*1,4 m

Surowiec:

Galvalume, ocynkowane

Zdolność produkcyjna:

8-15 m/min

Waga:

6300 kg

Materiał wałka:

45# Pokryte powłoką Cr

Zasilanie:

380 V 50 Hz 3 fazy (konfigurowalne)

Materiał do cięcia maszynowego:

CR12

Szerokość karmienia:

1200 mm

System sterowania:

Sterowanie PLC

Podkreślić:

IBR Type Roof Cold Roll Forming Machine

Roof Cold Roll Forming Machine PLC Control

IBR Type Double Layer Forming Machine

Warunki płatności i wysyłki

Minimalne zamówienie

1 zestaw

Cena

negotiable

Szczegóły pakowania

20' FLC

Czas dostawy

30 dni roboczych

Zasady płatności

L/C, T/T, D/A, D/P

Możliwość Supply

20 zestawów miesięcznie

Powiązane produkty

Wideo

High Speed Trapezoidal and glazed Double Layer Roof sheet roofing tile Forming Machine

Uzyskaj najlepszą cenę

Wideo

New Style Trapezoidal and glazed Double Layer Roof sheet roofing tile Forming Machine

Uzyskaj najlepszą cenę

Wideo

2025 factory price hot sale Trapezoidal and glazed Double Layer Roof sheet roofing tile Forming Machine

Uzyskaj najlepszą cenę

Wideo

2025 New Trapezoidal and glazed Double Layer Roof sheet roofing tile Roll Forming Machine

Uzyskaj najlepszą cenę

Skontaktuj się z nami

Skontaktuj się teraz

Opis produktu

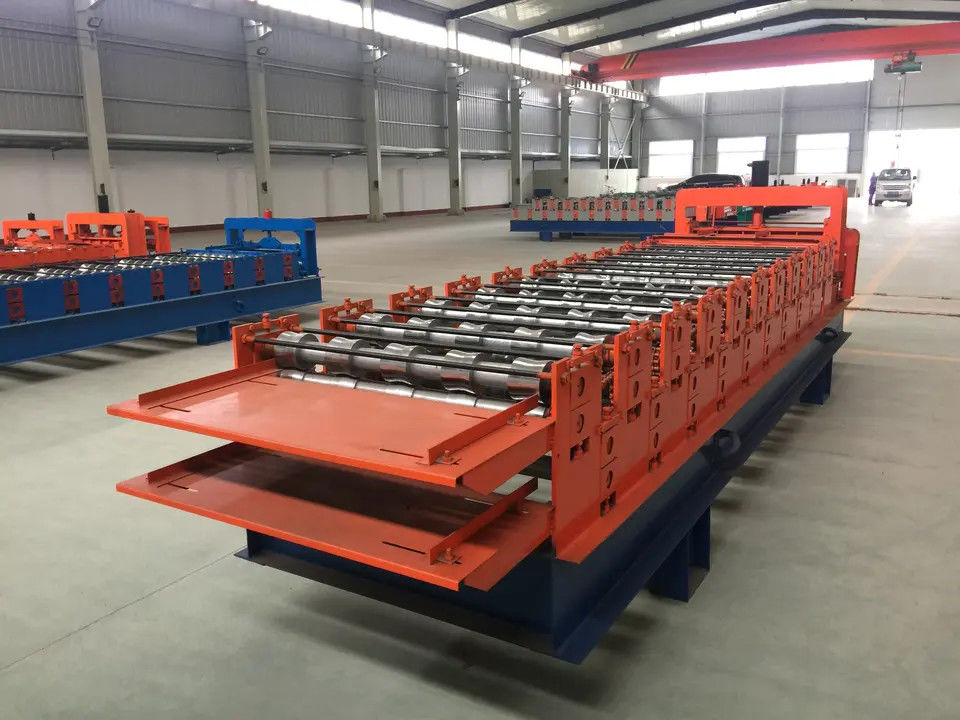

New Design 840 900 Double Layer IBR Type Roof Cold Roll Forming Machine

The picture shows the whole process of cold roll forming machine : MOTORIZED UNWINDING --- Feeding guide --- Roll forming --- Leveling --- Cutting --- Run out product stacker

The double deck corrugator was a solution to the problem of limited space in the customers production facility. Two sections produced in a two level over and under configuration gives the opportunity to produce different sections from a single machine.

New Design 840 900 Double Layer IBR Type Roof Cold Roll Forming Machine

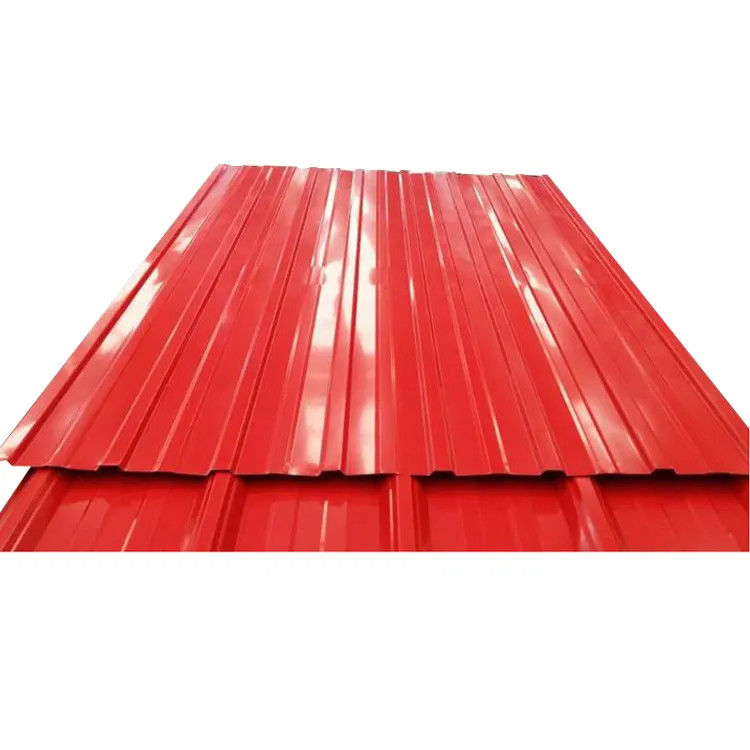

This roll forming machine can form smooth and beautiful metal roofing sheet without any scratch on surface 2.Roll forming process: uncoiler, roll forming, forming step effect, cut to length.
Fully Automatic Control System with PLC.
Easy operation: Set length and quantity on the control panel,machine will auto working
Customized your own roll forming machine, We can design the machine according to your specification and profile drawing.

Specification

Dimensions	5600mm1300mm1500mm
Weight	6300 kg
Main frame material	300H Steel
Thickness of plate in equipment	14mm
Roll forming row number	high layer:9 row (900), under layer: 11 row (840)
Forming shaft material	45# steel quenching treatment
Molding shaft dimension	Diameter of 70
Roll shape material	45# steel with hard chrome plating
Kind of drive	Chain wheel chain drive/hydraulic motor drive
Shaft Dia	inch 0.6
Power	6kw
Main motor power	4kw
Forming speed	8-10 m/min/hydraulic transmission 15 m/min
Material thickness	0.3-0.8mm

Guarantee

1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.

2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation

.

Payment terms

30% in advance as down payment
70% is paid before the shipment is processed

Delivery

FOB: Tianjin Xingang Port
The Delivery Time: 30 days after the down payment is received. 840 900 Double Layer IBR Type Roof Cold Roll Forming Machine PLC Control 0
