Name: Galvanized PPGI Double Layer Roll Forming Machine With Hydraulic Cutting 8-15m/Min
Brand: Cangzhou Famous International Trading Co., Ltd
SKU: Podwójna warstwa
Price: 15000.00 USD
Availability: InStock

Do domu > produkty > dwuwarstwowa maszyna do formowania rolek >

Galvanized PPGI Double Layer Roll Forming Machine With Hydraulic Cutting 8-15m/Min

Double Layer Roll Forming Machine Hydraulic Cutting

galvanized roll forming machine Hydraulic Cutting

Double Layer Roll Forming Machine 15m/Min

Miejsce pochodzenia:

Chiny kontynentalne

Nazwa handlowa:

FMS

Orzecznictwo:

ISO CE

Numer modelu:

Podwójna warstwa

Skontaktuj się z nami

Poproś o wycenę

Szczegóły produktu

Nazwa produktu:

Maszyna do formowania rolek dwuwarstwowych PPGI z cięciem hydraulicznym

Wymiar (L*W*H):

560*150*160cm

Surowiec:

Galvalume, ocynkowane

Zdolność produkcyjna:

8-15 m/min

Grubość rolki:

0,3-0,8 mm

Materiał wału:

45 # Obróbka kucia stali

Woltaż:

380 V 50 Hz

Szerokość karmienia:

1250 mm, 1250 mm

Materiał z ostrza:

Stal wysokiej jakości Cr 12

Waga:

2500 kg

Podkreślić:

Double Layer Roll Forming Machine Hydraulic Cutting

galvanized roll forming machine Hydraulic Cutting

Double Layer Roll Forming Machine 15m/Min

Warunki płatności i wysyłki

Minimalne zamówienie

1 zestaw

Cena

negotiable

Szczegóły pakowania

20' FLC

Czas dostawy

30 dni roboczych

Zasady płatności

L/C, T/T, D/A, D/P

Możliwość Supply

20 zestawów miesięcznie

Powiązane produkty

Wideo

High Speed Trapezoidal and glazed Double Layer Roof sheet roofing tile Forming Machine

Uzyskaj najlepszą cenę

Wideo

New Style Trapezoidal and glazed Double Layer Roof sheet roofing tile Forming Machine

Uzyskaj najlepszą cenę

Wideo

2025 factory price hot sale Trapezoidal and glazed Double Layer Roof sheet roofing tile Forming Machine

Uzyskaj najlepszą cenę

Wideo

2025 New Trapezoidal and glazed Double Layer Roof sheet roofing tile Roll Forming Machine

Uzyskaj najlepszą cenę

Skontaktuj się z nami

Skontaktuj się teraz

Opis produktu

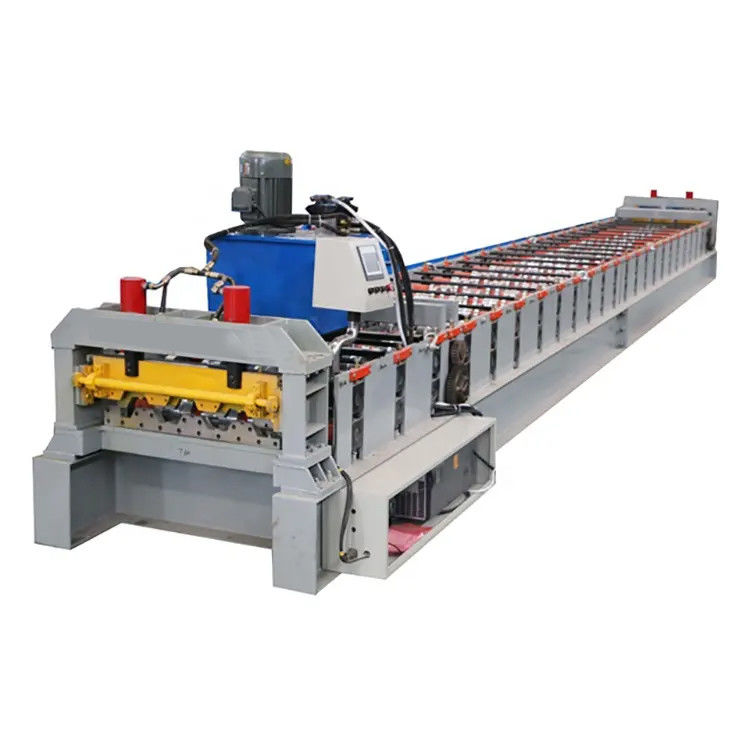

PPGI Double Layer Roll Forming Machine With Hydraulic Cutting

PPGI Double Layer Roll Forming Machine With Hydraulic Cutting popular sell in many countries, common roofing sheet rolling thickness from 0.3-0.6 mm, material use PPGI (Pre-Painted Galvanized Steel ) material

We sell lots of double layer roll forming machine to Peru, Brazil, Colombia, Chile etc. We can assure finished products overlap accuracy control in ±1 mm. Size can customize can your need size

Work flow of double layer roll forming machine

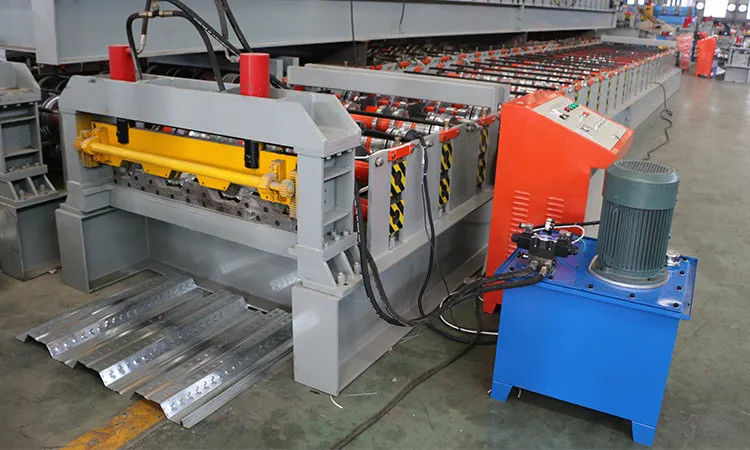

Decoiler-roll forming machine-PLC control box-hydraulic cutter-Run out table

1) This double layer oof sheet roll forming machine adopts coil production material to form 2 different roofing profiles through 5 Ton manual decoiler, pinch feeding, main roll forming part, Hydraulic cutting, hydraulic station, PLC control system, and Non-power type support table.

2) The whole machine adopt PLC control, AC speed control by frequency inverter technology, to realize continuous auto production, which is the best desired machinery in steel structure and metal cold roll forming machinery industry.

Specification

1	Suitable to process	Color steel plate
2	Width of the plate	914mm/1000mm/1200mm/1220mm/1250mm
3	Thickness of the plate	0.3-0.8mm
4	De-coiler	Manual one, can load 5 tons raw material

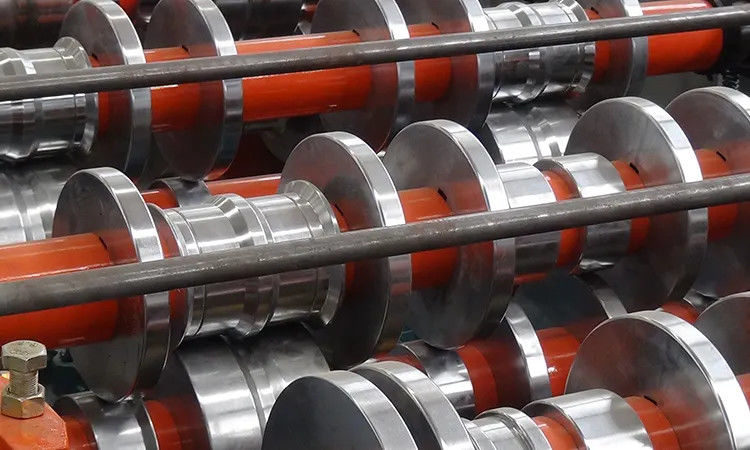

5	Rollers for forming	16 rows
6	Diameter of the roller	80mm
7	Rolling material	Carbon Steel 45#
8	Main motor power	5.5kw
9	Material of the cutting blade	Cr12 mov
10	Hydraulic cutting power	4kw
11	Processing precision	Within 1.00mm
12	Control system	Delta PLC control
13	Side panel of machine	16mm
14	Main structure of the machine	350 H steel
15	Weight	About 3T
16	Dimensions	5.61.21.5m
17	Voltage	380V 50Hz 3phases(changeable as needs)
18	Certificate	CE/ISO
19	Custom	According to customer's requirements

Advantage

The metal system is accurate and solid, and will not move over time or with changes in temperature.
There is a wide range of stud widths from 50mm to 146mm to meet varying requirements.
It is a fast and clean system to erect that allows services to pass through easily.
All sections fit together easily and door frames are formed very simply.

Payment terms

30% in advance as down payment

70% is paid before the shipment is processed

Delivery

FOB: Tianjin Xingang Port

The Delivery Time: 30 days after the down payment is received.
