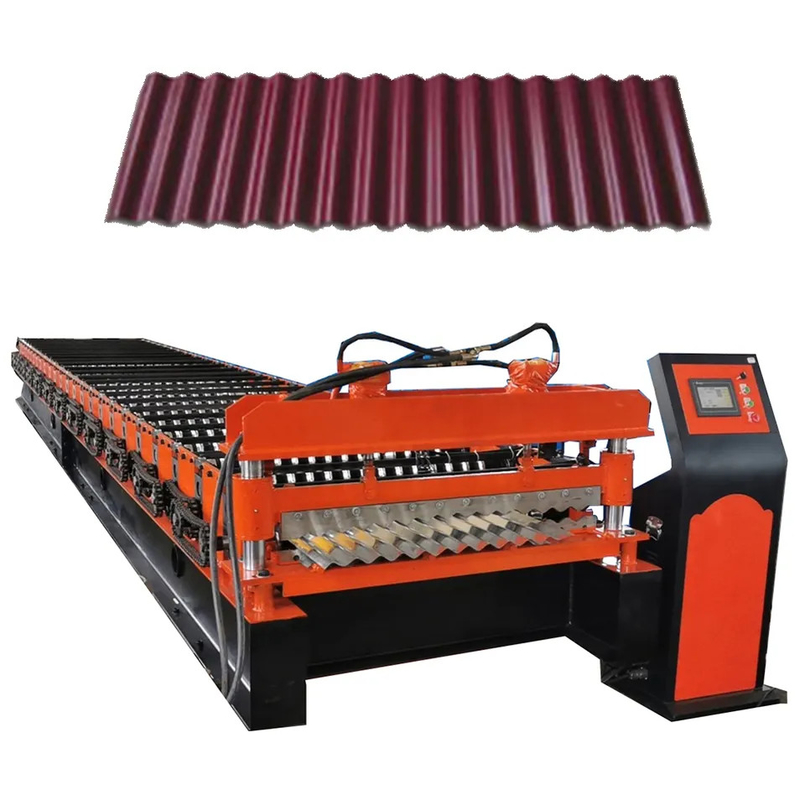

Name: 8-20m/Min Color Steel Corrugated Roll Forming Machine Roofing Iron Sheet Making Machine
Brand: Cangzhou Famous International Trading Co., Ltd
SKU: Wyroby z włókien
Price: 16,000.00 USD
Availability: InStock

Do domu > produkty > Maszyna do formowania rolek dachówek >

8-20m/Min Color Steel Corrugated Roll Forming Machine Roofing Iron Sheet Making Machine

20m/Min Corrugated Roll Forming Machine

Color Steel Corrugated Roll Forming Machine

20m/Min Iron Sheet Making Machine

Miejsce pochodzenia:

CHINY

Nazwa handlowa:

cangzhou fms

Orzecznictwo:

CE,ISO

Numer modelu:

Wyroby z włókien

Skontaktuj się z nami

Poproś o wycenę

8-20m/Min Color Steel Corrugated Roll Forming Machine Roofing Iron Sheet Making Machine

Szczegóły produktu

Nazwa produktu:

Maszyna do formowania rolek ze stali kolorowej. Maszyna do produkcji blachy falistej

Typ płytek:

Stal ocynkowana lub PPGI

Zdolność produkcyjna:

8-20 m/min

Waga:

4500 kg

Materiał rolkowy:

380 V 3 fazy 50 Hz

Szerokość karmienia:

0,3-0,8 mm

Szerokość zwoju przed walcowaniem:

1200 mm, 1220 mm, 1250 mm

Rozmiar wyglądu:

6*1,5*1,3 m

Materiał rolkowy:

Stal 45# z chromem o grubości 0,05 mm

Cięcie:

Cięcie hydrauliczne

Podkreślić:

20m/Min Corrugated Roll Forming Machine

Color Steel Corrugated Roll Forming Machine

20m/Min Iron Sheet Making Machine

Warunki płatności i wysyłki

Minimalne zamówienie

1 zestaw

Cena

negotiable

Szczegóły pakowania

Główna maszyna jest naga, skrzynka sterownicza komputera jest zapakowana w plastik.

Czas dostawy

30 dni

Zasady płatności

T/T, Western Union

Możliwość Supply

30 zestawów miesięcznie

Powiązane produkty

6m Automatic Stacker for Roof Sheet Roll Forming Machine

Uzyskaj najlepszą cenę

Wideo

the factory price for 0.3-0.8mm thickness Glazed Roof sheet forming machine

Uzyskaj najlepszą cenę

Wideo

2025 New Design for Glazed Roof Tile Roof Sheet Roll Forming Machine With 18 Rows

Uzyskaj najlepszą cenę

Wideo

4meter/Min Glazed Tile Roll Forming Machine With 18 Rows

Uzyskaj najlepszą cenę

Skontaktuj się z nami

86-317-2016816

Skontaktuj się teraz

Opis produktu

Color Steel Corrugated Roll Forming Machine Roofing Iron Sheet Corrugated Making Machine

1064 Corrugated roll forming machine | corrugated roofing sheet machine | corrugated machine | 1064 corrugated roofing sheet machine

Corrugated roofing sheet roll forming machine popular sell in many countries

When use 1250mm width coil, after rolling product width is 1064mm

When use 1200mm width coil, after rolling product width is 988mm

When use 1000mm width coil, after rolling product width is 836mm

4 types make in one machine

Material common is PPGI material, material thickness common between 0.3-0.8 mm.

Specification

NO.	Item	Specification
Material	Raw material	Galvanized steel or PPGI
Material	Thickness	0.3-0.8 mm
Machine	Roller station	13 or depend on customer' drawing
	Shaft diameter	75 mm
	Solid shaft material	High grade 45# steel with Cr12 mov coated, quenching & tempering & treatment
	Roller material hardness 30-40 HRC	Cr12
	Machine size	About 61.51.3 m
	Machine weight	About 5 tons
	Machine color	As customer need
	Working speed	8-20 m/min
Cutter	Hardness	50-65 HRC
	Cutting tolerance	± 1mm
	Material	Cr12
	Operate	Hydraulic cutting
Power	Driving way	Chain 1 inch
	Main motor	4 KW
	Pump motor for cutter	3 KW
	Voltage	380V/50HZ, 3P or Customized as customer' request
Control system	PLC brand	Delta made in Taiwan
	Screen	Touchable screen
	Language	Chinese and English or add customer need language
Decoiler	Operation	Manual
	Weight capacity	5 Tons
	Price	Free as gift
Receive table	Operation	Manual
Receive table	Length	3 m

Guarantee

1. Guaranteed against malfunctions due to manufacturing defects for 12 months after date of purchase except Electrical parts.

2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation

Payment terms

40% TT in advance

60% TT before the shipment and after inspection

Delivery

FOB: Tianjin Xingang Port

The Delivery Time: 20 days after the down payment is received.
