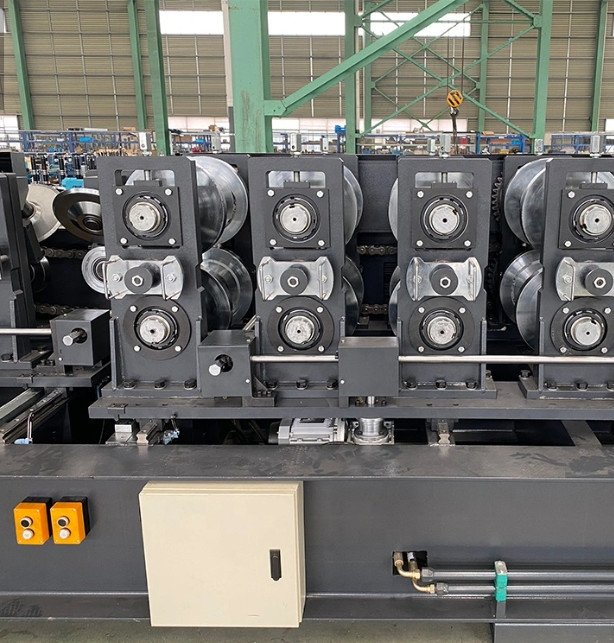

Automated CZ Purlin Roll Forming Machine Stud And Track Cold Roll Former 5.5kw

CZ Purlin Roll Forming Machine 5.5kw

Cold Roll Former 5.5kw

Automated CZ Purlin Roll Forming Machine

Miejsce pochodzenia:

CHINY

Nazwa handlowa:

FMS

Orzecznictwo:

CE,ISO

Skontaktuj się z nami

Poproś o wycenę

Szczegóły produktu

Nazwa produktu:

Aotomatic CZ Płatew Maszyna do formowania rolek Stud i gąsienica Walec na zimno Była dobra cena Peb

Typ kontroli Higzh:

Dokładność systemu sterowania PLC

Zdolność produkcyjna:

8-12m/min

Grubość materiału:

1-3 mm

Ostrze:

na życzenie kupującego

System sterowania:

Sterowanie komputerem PLC z falownikiem

Moc pompy:

5,5 kW

Rama:

Stal 400H

Specyfikacja:

10*1,35*1,75 m

Materiał głównego wału:

40 cr

Podkreślić:

CZ Purlin Roll Forming Machine 5.5kw

Cold Roll Former 5.5kw

Automated CZ Purlin Roll Forming Machine

Warunki płatności i wysyłki

Minimalne zamówienie

1 zestaw

Cena

negotiable

Szczegóły pakowania

Główna maszyna jest naga, skrzynka sterownicza komputera jest zapakowana w plastik.

Czas dostawy

30 dni

Zasady płatności

T/T, Western Union, L/C

Możliwość Supply

20 zestawów miesięcznie

Powiązane produkty

Wideo

High Efficiency CZ Purlin Roll Forming Machine with 45# Steel Rollers and High Straightness for Construction

Uzyskaj najlepszą cenę

Wideo

Full Automatic CZ Purlin Roll Forming Machine with High Straight Level Crush Resistance and 1.5-3MM Thickness for Industrial Buildings

Uzyskaj najlepszą cenę

Wideo

CZ Purlin Roll Forming Machine with 18 Station Rollers, 380V/50HZ/3Phase Voltage and Cr12Mov Cutting Blade for High Efficiency

Uzyskaj najlepszą cenę

Wideo

CZ Purlin Roll Forming Machine with 700014001500mm Size 8-12m/min Forming Speed and 1.5-3.0mm Thickness for Galvanized Steel

Uzyskaj najlepszą cenę

Skontaktuj się z nami

86-317-2016816

Skontaktuj się teraz

Opis produktu

Aotomatic CZ Purlin Roll Forming Machine Stud And Track Cold Roller Former Good Price Peb

Product name: Aotomatic CZ Purlin Roll Forming Machine Stud And Track Cold Roller Former Good Price Peb

Production Process: Decoiling - Feeding - Flattening - Lip forming - Flange forming - Angle forming - Straightening - Punching - Cutting - Stacking

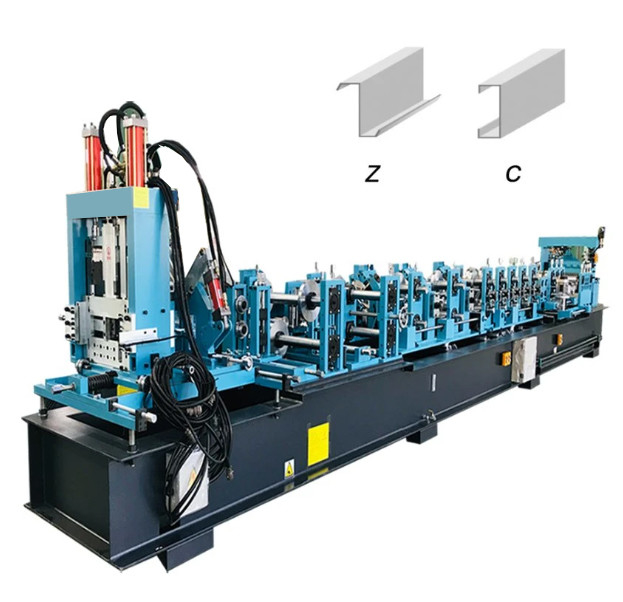

This automatic CZ purlin roll forming machine can produce both C and Z shape purlin, C Z shape change by computer automatically in 1 minute, which highly improve the efficiency and save space&time&cost.

It can be used in the main body stress structure of the large and medium-size enterprises civil construction, like the plant, warehouse, locomotive shed, hangar, exhibition building, theatre, stadiums, roofing load-bearing load and wall surface support of the arbour.

specifications

1	Processing material:	Aluminum plating zinc/galvanized steel
2	Material thickness:	1.5 mm-3.0 mm
3	Capacity:	8-12m/Min
4	The weight:	13-15 ton
5	Roll Forming Machine Shaft Material	Cr12, Heat Treatment
6	Hydraulic Station	5.5kw
7	Specification	101.351.75m
8	Cutting Blade	Cr12MOV After Heat Treatment
9	Forming Stations	18
11	Main frame:	400H steel
12	Control system:	PLC computer control with inverter
13	Power supply:	380V, 3 Phase, 60Hz(as requirement)

Payment terms

40% in advance as down payment

60% is paid before the shipment is processed

Delivery

FOB: Tianjin Xingang Port

The Delivery Time: 20 days after the down payment is received.
