Double Out Light Gauge Roll Forming Machine V Angle Bar Steel And Omega

25m/min Light Gauge Roll Forming Machine

PLC Light Gauge Roll Forming Machine

20m/min Light Gauge Roll Forming Machine

Miejsce pochodzenia:

Chiny kontynentalne

Nazwa handlowa:

FMS

Orzecznictwo:

ISO CE

Skontaktuj się z nami

Poproś o wycenę

Szczegóły produktu

Nazwa produktu:

Podwójna lekka maszyna do formowania rolek V Kątownik ze stali i Omega

Woltaż:

380 V 50 Hz 3 fazy

Kluczowe punkty sprzedaży:

Długie życie

Prędkość:

20--25 m/min

System sterowania:

PLC

Nóż:

Gcr12

olej hydrauliczny:

46#

Materiał wału:

Stal 40Cr

Grubość materiału:

0,3-0,8 mm

Wymiar (L*W*H):

5,0 * 1,0 * 1,7 m

Podkreślić:

25m/min Light Gauge Roll Forming Machine

PLC Light Gauge Roll Forming Machine

20m/min Light Gauge Roll Forming Machine

Warunki płatności i wysyłki

Minimalne zamówienie

1 zestaw

Cena

negotiable

Szczegóły pakowania

20' FLC

Czas dostawy

30 dni roboczych

Zasady płatności

L/C, T/T, D/A, D/P

Możliwość Supply

20 zestawów miesięcznie

Powiązane produkty

Wideo

Omega Profile Light Keel Steel Framing Top Hat Channel Roll Forming Machine

Uzyskaj najlepszą cenę

C89 Lgs Light Gauge Steel Roll Forming Machine For Villa House

Uzyskaj najlepszą cenę

Roller Fixer Guide Column CU stud for Long-lasting Roofing

Uzyskaj najlepszą cenę

Guide Column Roller Fixer Stud And Track Roll Forming Machine with 7.5KW Hydraulic Station Power and Plc S7-200 Control

Uzyskaj najlepszą cenę

Skontaktuj się z nami

Skontaktuj się teraz

Opis produktu

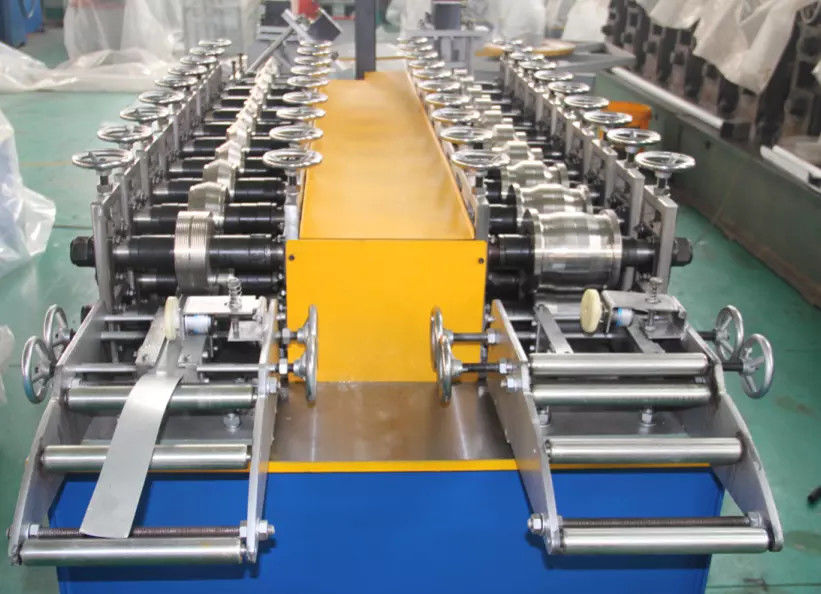

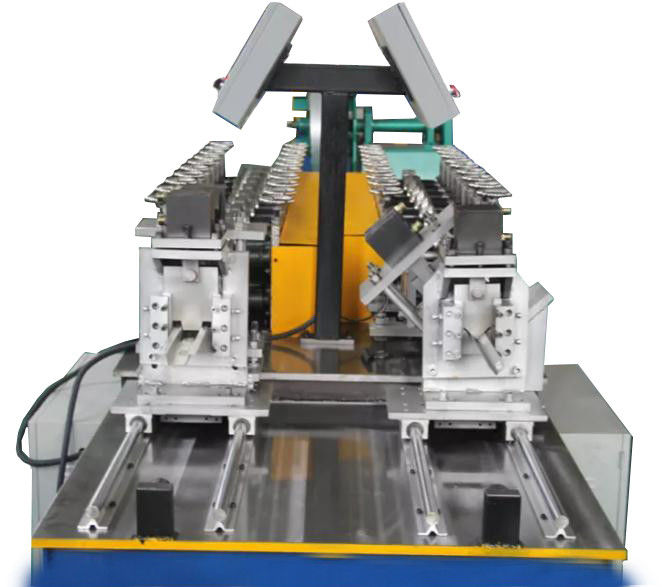

Double Out Light Gauge Roll Forming Machine V Angle Bar Steel And Omega

Double Out Light Gauge Roll Forming Machine V Angle Bar Steel And Omega.Light gauge roll forming machine, the light steel keel is made of high-quality continuous hot-dip galvanized sheet and strip as raw materials, and is rolled into a metal frame for construction through a cold bending process. It is suitable for the decoration of the roof of various buildings, the inner and outer walls of the building and the scaffold The base material of the suspended ceiling. The light steel keel includes ceiling keel and partition keel according to the purpose, and V-shaped, C-shaped, T-shaped, L-shaped and U-shaped keels according to the cross-sectional form.

Specification

Material sheet:G.I. steel strip
Equipment operation	Automatically
Voltage	380V,50/60Hz or at buyer's request
Thickness of material sheet	0.3----0.8mm(normally)
Width of material sheet	As drawing
Control system	By PLC(imported brand)
Cutting method	Hydraulic cutting
Material of roller station	Gcr12 with hard treatment
Formed width	As drawing
Working speed	20---25m/min
Length of finished product	set in computer, machine will cut automatically
Transmission type	gears

Guarantee

1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.

2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation

Payment terms

40% in advance as down payment

60% is paid before the shipment is processed

Delivery

FOB: Tianjin Xingang Port

The Delivery Time: 60 working days after the down payment is received.
