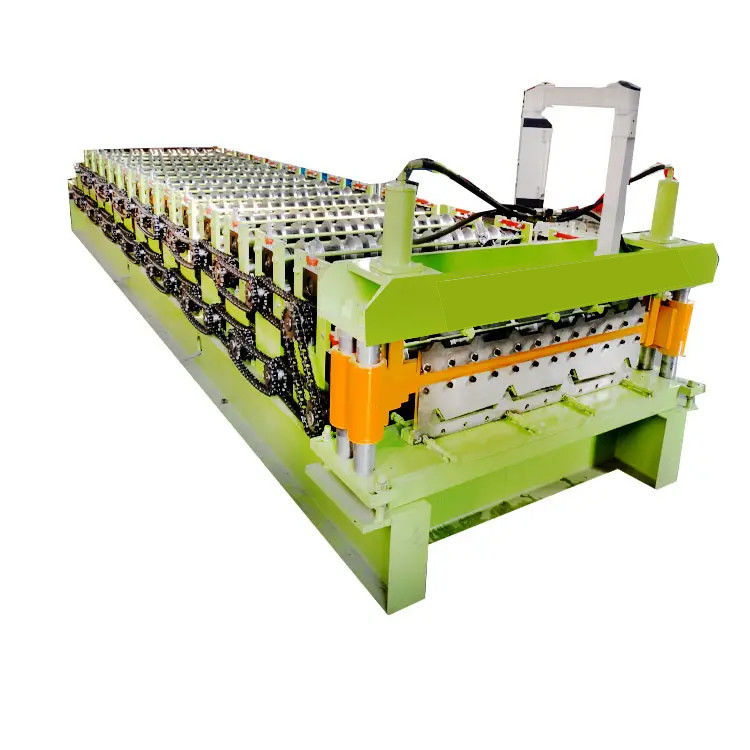

Name: Roof Panel Double Layer Roll Forming Machine 0.3 - 0.8mm 18 Stations
Brand: Cangzhou Famous International Trading Co., Ltd
SKU: Podwójna warstwa
Price: 15000.00 USD
Availability: InStock

Do domu > produkty > dwuwarstwowa maszyna do formowania rolek >

Roof Panel Double Layer Roll Forming Machine 0.3 - 0.8mm 18 Stations

Double Layer Roll Forming Machine 0.8mm

double layer forming machine 0.3mm

12m/min double layer forming machine

Miejsce pochodzenia:

CHINY

Nazwa handlowa:

FMS

Orzecznictwo:

CE,ISO

Numer modelu:

Podwójna warstwa

Skontaktuj się z nami

Poproś o wycenę

Szczegóły produktu

Opis produktu:

Maszyna do formowania rolek dwuwarstwowych paneli dachowych 0,3-0,8 mm 18 stacji

Zdolność produkcyjna:

8-25 m/min

Wymiar (L*W*H):

6500 mm*1300 mm*1200 mm

Materiał rolkowy:

45# stal

System sterowania:

PLC

Grubość rolki:

0,3-0,8 mm

Woltaż:

380 V 50 Hz 3 fazy

zdolności produkcyjne:

0-12 m/min

Materiał z ostrza:

Stal wysokiej jakości Cr 12

Rama główna:

Stal 350H

Podkreślić:

Double Layer Roll Forming Machine 0.8mm

double layer forming machine 0.3mm

12m/min double layer forming machine

Warunki płatności i wysyłki

Minimalne zamówienie

1 zestaw

Cena

negotiable

Szczegóły pakowania

Główna maszyna jest naga, skrzynka sterownicza komputera jest zapakowana w plastik.

Czas dostawy

30 dni

Zasady płatności

T/T, Western Union

Możliwość Supply

35 zestawów miesięcznie

Powiązane produkty

Wideo

New Style Trapezoidal and glazed Double Layer Roof sheet roofing tile Forming Machine

Uzyskaj najlepszą cenę

Wideo

High Speed Trapezoidal and glazed Double Layer Roof sheet roofing tile Forming Machine

Uzyskaj najlepszą cenę

Wideo

2025 factory price hot sale Trapezoidal and glazed Double Layer Roof sheet roofing tile Forming Machine

Uzyskaj najlepszą cenę

Wideo

2025 New Trapezoidal and glazed Double Layer Roof sheet roofing tile Roll Forming Machine

Uzyskaj najlepszą cenę

Skontaktuj się z nami

Skontaktuj się teraz

Opis produktu

Roof Panel Double Layer Roll Forming Machine 0.3-0.8mm 18 Stations

Roof Panel Double Layer Roll Forming Machine 0.3-0.8mm 18 Stations .Compared to a single layer roof panel roll forming machine, a double layer roll forming machine is desgined to produce two different kinds of metal sheets which can be one trapezoidal roofing and one roof/wall cladding sheet.
Industrial manufacturing, villages, warehouses, supermarkets, hotels, exhibition halls, home buildings, etc. It has a three-dimensional and smooth shape, colorful and colorful colors, and can also be customized according to customer requirements for different corrugated board patterns, colors, shapes and corrugated boards of different thicknesses.Building metallic materials have excellent performance of decoration, corrosion resistance etc,easy to operate, energy saving,flexible manufacturing,high productivity, eco-friendly.

Detailed Parameters:

The total length of the equipment	Length 6.5m, width 1.2m and height 1.2m
The motor power	Motor actuating motor pump station 4Kw working voltage 380V
Production speed	8-25 m/min
The transmission way	1 .2inch chain drive
rack	Large frame: 350H section steel
shaft	11 row axis diameter phi 70 axis
The thickness of the plate	14 mm
Set of	Galvanized pipe finishing, electrostatic spraying
Wheel material	45# steel hard chrome plating
The molding part	Divided into precision wheel rotation forming, forming effect is good, reduce the friction between wheels and raw materials, debugging convenient, fast.
Numerical control system	Easy control king, letter letter press button screen, counter,
shear	Welded iron frame, hydraulic cylinder automatic shear
The thickness of the plate	0.3- 0.8 mm
Feed width	1000 mm
accessories	One feeding rack and two sets
Warranty period	12 months

Guarantee

1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.

2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation

Payment terms

40% in advance as down payment

60% is paid before the shipment is processed

Delivery

FOB: Tianjin Xingang Port

The Delivery Time: 30 days after the down payment is received.
