Name: Metal Decking Floor Deck Roll Forming Machine Low Noise Level
Brand: Cangzhou Famous International Trading Co., Ltd
SKU: pokład podłogi
Price: 26,500.00 USD
Availability: InStock

Do domu > produkty > Maszyna do formowania rolki podłogowej >

Metal Decking Floor Deck Roll Forming Machine Low Noise Level

floor deck forming machine 15m/min

Low Noise metal deck forming machine

floor deck forming machine 10m/min

Miejsce pochodzenia:

Chiny kontynentalne

Nazwa handlowa:

FMS

Orzecznictwo:

ISO CE

Numer modelu:

pokład podłogi

Skontaktuj się z nami

Poproś o wycenę

Szczegóły produktu

Nazwa produktu:

Maszyna do formowania rolek metalowych tarasów podłogowych Stabilna wydajność

Wymiar (L*W*H):

12,5*1,8*2,0

Skuteczna szerokość:

1000 mm

Typ kontroli:

System PLC

Woltaż:

380 V 50 Hz 3 faza

wydajność:

10-15m/min

Grubość rolki:

0,5-1,2 mm

Waga:

10500Kg

Główna konstrukcja maszyny:

Belka 450 H

Kluczowe punkty sprzedaży:

Niski poziom hałasu

Podkreślić:

floor deck forming machine 15m/min

Low Noise metal deck forming machine

floor deck forming machine 10m/min

Warunki płatności i wysyłki

Minimalne zamówienie

1 zestaw

Cena

negotiable

Szczegóły pakowania

40' FLC

Czas dostawy

45 dni roboczych

Zasady płatności

L/C, T/T, D/A, D/P

Możliwość Supply

20 zestawów miesięcznie

Powiązane produkty

Wideo

Cellular Composite Roofing Sheet Making Machine 3.0" Width 0.8-2.0MM Thickness

Uzyskaj najlepszą cenę

Wideo

13 Rows Roof Tile Roll Forming Machine For Tipo Teja Americana Normal Tile

Uzyskaj najlepszą cenę

Wideo

Decking Flooring Board 1.2mm Floor Tile Making Machine

Uzyskaj najlepszą cenę

Wideo

45 Steel Deck Roll Forming Machine Cold ±2mm Cutting Tolerance Excellent Performance

Uzyskaj najlepszą cenę

Skontaktuj się z nami

86-317-2016816

Skontaktuj się teraz

Opis produktu

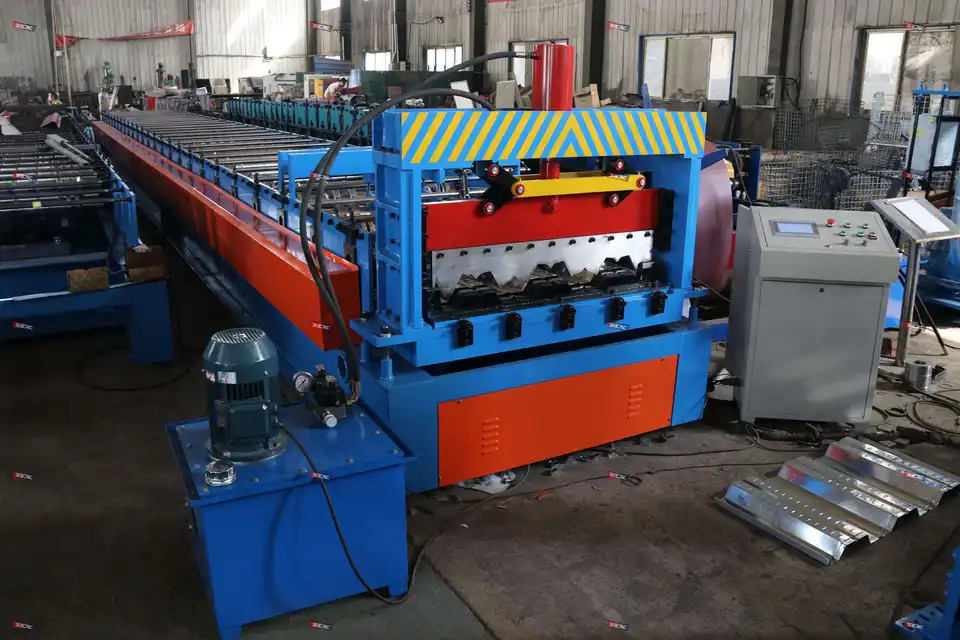

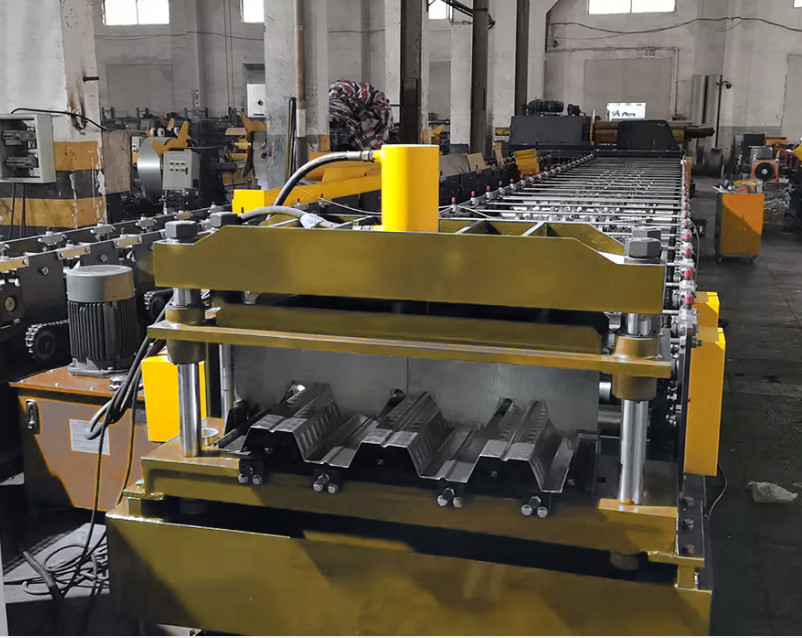

Metal Decking Floor Deck Roll Forming Machine Stable Performance

Metal Decking Floor Deck Roll Forming Machine Stable Performance

metal decking floor deck roll forming machine is mainly used to produce press-formed steel plate to support floor concrete,the floordeck which is widely used in power plants, power equipment companies, automobile exhibition halls, steel structure plants, cement warehouses, steel structure offices, airport terminals, railway stations, stadiums, concert halls, grand theaters, large supermarkets, logistics centers, Olympic venues, sports Steel structure buildings such as stadiums.This product has strong durability, is not easy to be damaged, and the speed of rolling the steel plate is fast, which greatly saves time and labor costs. The finished steel plate after rolling is light in weight, good in shape, and not easily deformed.

Working Flow:

Decoiler-------Feeding-------Roll forming-------Cutting------Finished product

Specification

Metal Decking Floor Deck Roll Forming Machine Stable Performance
Dimensions	12.51.82.0m
Weight	About 10500kgs
Roller	26 Rows
Material of the Cutting Blade	Cr12, Quenched treatment 58℃-60℃
Rolling Materials	45# forging steel with chromium plate
Diameter of the Roller	Φ90mm
Main Structure of the Machine	450H beams
Side Panel of Machine	20mm
Chain	1 Inch
Motor Power	15Kw*2
Pump Station Motor	4Kw Lichao Brand
Productivity	10-15m/min
Thickness of the Plate	0.5-1.2mm
Length Tolerance	±2mm
Touch Screen	Delta
Voltage	380V 50Hz 3 phases or as customer's need
Drive Mode	Motor driver
Suitable to Process	GI/GL/PPGI/PPGL/Aluminum coils

Guarantee

1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.

2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation

Payment terms

40% in advance as down payment

60% is paid before the shipment is processed

Delivery

FOB: Tianjin Xingang Port

The Delivery Time: 30 days after the down payment is received.
