Name: High Speed Automatic Rain Gutter Downspout Roll Forming Machine PCL Control
Brand: Cangzhou Famous International Trading Co., Ltd
SKU: rynna
Price: 16,500.00 USD
Availability: InStock

Do domu > produkty > maszyna do formowania rolki rurowej >

High Speed Automatic Rain Gutter Downspout Roll Forming Machine PCL Control

Downspout Roll Forming Machine High Speed

PCL Controlled Gutter Downspout Machine

Downspout Roll Forming Machine PCL Controlled

Miejsce pochodzenia:

CHINY

Nazwa handlowa:

FMS

Orzecznictwo:

ISO CE

Numer modelu:

rynna

Skontaktuj się z nami

Poproś o wycenę

Szczegóły produktu

Nazwa produktu:

Automatyczna maszyna do formowania rolek spustowych o dużej prędkości, sterowanie PCL

Zdolność produkcyjna:

12-15m/min

Materiał z ostrza:

Kr 12 Mov

Grubość rolki:

0,3-0,8 mm

Wymiar (L*W*H):

7800*1200*1400MM

Waga brutto na jednostkę produktu:

3000 kg

Woltaż:

3 fazy 380 V 50 Hz lub zgodnie z wymaganiami

Podkreślić:

Downspout Roll Forming Machine High Speed

PCL Controlled Gutter Downspout Machine

Downspout Roll Forming Machine PCL Controlled

Warunki płatności i wysyłki

Minimalne zamówienie

1 zestaw

Cena

negotiable

Szczegóły pakowania

20' FLC

Czas dostawy

30 dni roboczych

Zasady płatności

L/C, T/T, D/A, D/P

Możliwość Supply

20 zestawów miesięcznie

Powiązane produkty

Mobile Vegetable Planting Trough Forming Machine with Hydraulic Motor 5.5KW and 8-15m/min Production Capacity for Greenhouse Vegetable Cultivation

Uzyskaj najlepszą cenę

Portable Gutter Roll Forming Machine with 500mm Feeding Width and 8-15m/min Production Capacity for Various Growing Methods

Uzyskaj najlepszą cenę

Mobile Greenhouse Vegetable Planting Trough Forming Machine With Quickly And Efficiently 5.5KW Hydraulic Motor

Uzyskaj najlepszą cenę

Portable Greenhouse Planting Trough Forming Machine with Hydraulic Motor 5.5KW 380V/50Hz/3Phase and 45# Steel Shaft

Uzyskaj najlepszą cenę

Skontaktuj się z nami

86-317-2016816

Skontaktuj się teraz

Opis produktu

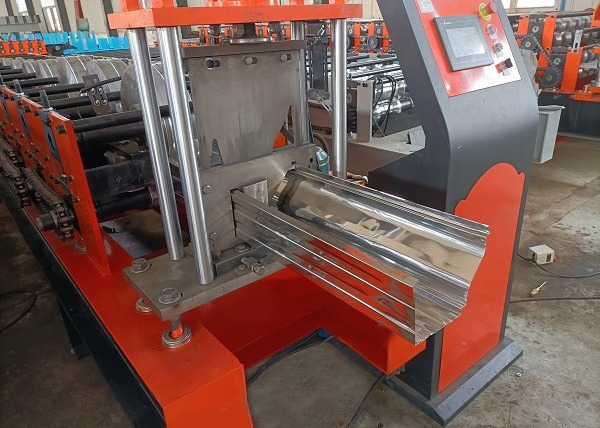

High Speed Automatic Rain Gutter Downspout Roll Forming Machine PCL Control

Rain Gutter refers to the lower part of the two spans between the roof of the building. The roof drainage is divided into tissue drainage. Generally, the rainwater is collected in the Rain Gutter and then discharged by the rainwater pipe. The gap of the rainwater is called Rain Gutter. Rain Gutter is mostly made of steel plate.

Specification

Galvanized Gutter Making Machine Downspout Metal Gutter Roll Forming Machine
Processing material	colored steel coil
Material thickness	0.4-0.8mm
Frame design	according to design drawing
Main motor power	4 kw
Material of forming roller	45# steel, CNC lathes, Hard Chrome Coated
Shafts Diameter	Φ70mm
Max. Line speed of roll former	15m/min
Hydraulic group power	3 KW
Material of cutting blade	Cr12, hear treatment
Electric Standard	380V /50Hz/3PH or as per customer's requirements
Main frame	300H steel

Installation

During the installation and adjustment of the equipment, our engineers should provide the buyer's personal request to provide training and maintenance for the equipment. Including basic buildings, electrical engineering, hydraulic oil, safe operation and non-standard safety items, testing materials, etc.

Guarantee

The warranty will be maintained during the delivery period and within the delivery period. Due to the quality of the equipment during the warranty period, we will provide parts free of charge, which is the correct operating condition. Natural disasters or factors that cannot be imposed by humans are excluded.

Payment terms

40% in advance

60% is paid before shipping and pass the inspection

High Speed Automatic Rain Gutter Downspout Roll Forming Machine PCL Control 0
