Name: Light Keel Stud And Track Roll Forming Machine Double Head
Brand: Cangzhou Famous International Trading Co., Ltd
SKU: Lekka stal
Price: 40,500.00 USD
Availability: InStock

Do domu > produkty > Maszyna do tworzenia rolki z kołkami i ścieżkami >

Light Keel Stud And Track Roll Forming Machine Double Head

Stud And Track Roll Forming Machine 7.5kw

Double Head Light Keel Forming Machine

7.5kw stud and track forming machine

Miejsce pochodzenia:

Chiny kontynentalne

Nazwa handlowa:

FMS

Orzecznictwo:

ISO CE

Numer modelu:

Lekka stal

Skontaktuj się z nami

Poproś o wycenę

Szczegóły produktu

Nazwa produktu:

Podwójny miernik światła 0,3-0,8 Maszyna do formowania rolek stalowych Wykonuje profile płyt kartono

Surowiec:

PL, GL, PPGL, PPGI

Prędkość pracy:

10-25 m/min

Grubość materiału:

0,4 mm - 0,8 mm

Waga:

4 tony

Dostawa:

30 dni roboczych

Materiał wału:

Kuta stal 80 mm 45#

Główna moc silnika:

7,5 kW

Podkreślić:

Stud And Track Roll Forming Machine 7.5kw

Double Head Light Keel Forming Machine

7.5kw stud and track forming machine

Warunki płatności i wysyłki

Minimalne zamówienie

1 zestaw

Cena

negotiable

Szczegóły pakowania

20' FLC

Czas dostawy

30 dni roboczych

Zasady płatności

L/C, T/T, D/A, D/P

Możliwość Supply

25 zestawów miesięcznie

Powiązane produkty

Wideo

Omega Profile Light Keel Steel Framing Top Hat Channel Roll Forming Machine

Uzyskaj najlepszą cenę

C89 Lgs Light Gauge Steel Roll Forming Machine For Villa House

Uzyskaj najlepszą cenę

Roller Fixer Guide Column CU stud for Long-lasting Roofing

Uzyskaj najlepszą cenę

Guide Column Roller Fixer Stud And Track Roll Forming Machine with 7.5KW Hydraulic Station Power and Plc S7-200 Control

Uzyskaj najlepszą cenę

Skontaktuj się z nami

86-317-2016816

Skontaktuj się teraz

Opis produktu

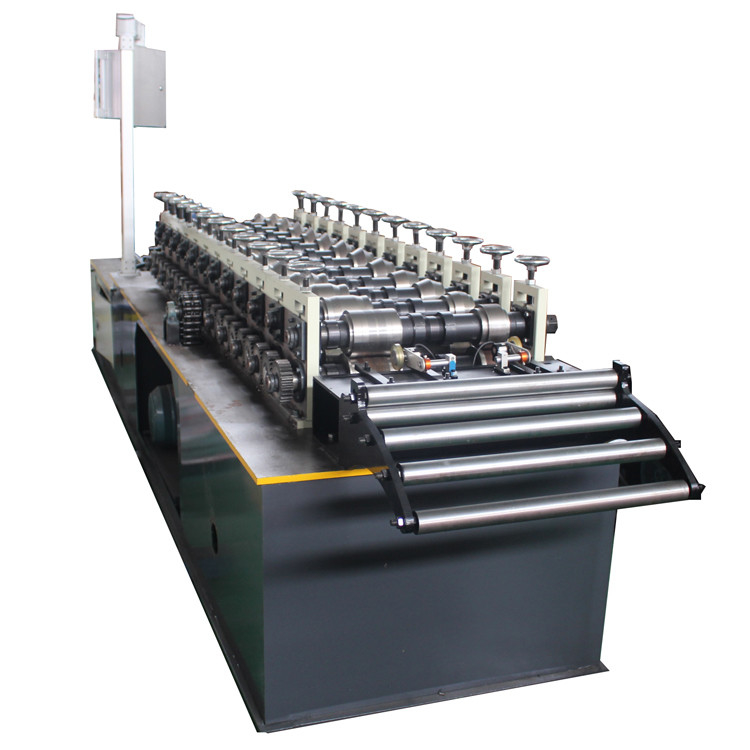

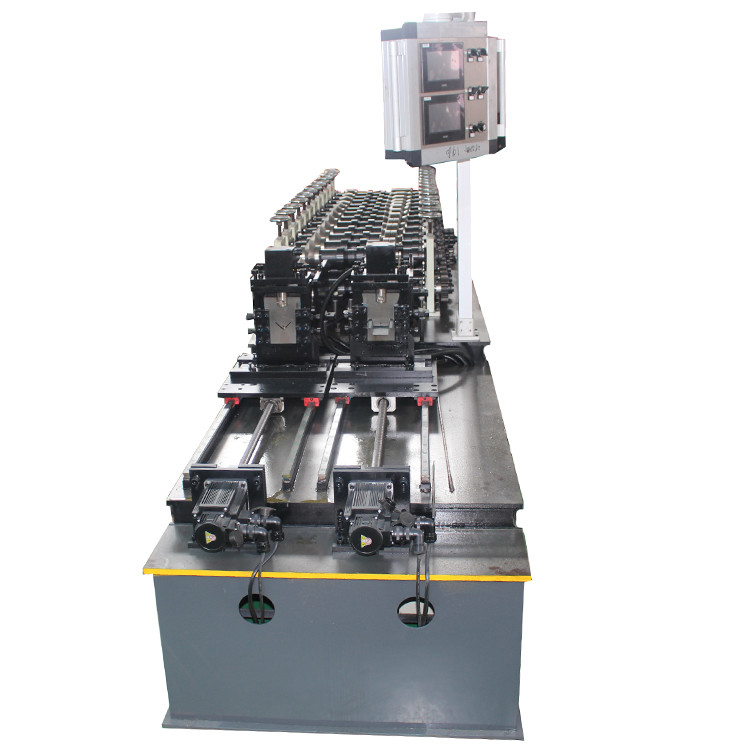

Double Head Stud And Track Roll Forming Machine Light Keel Forming Machine

Double Head Stud And Track Roll Forming Machine Light Keel Forming Machine,which is combined with the V angle roll forming machine and the Omega roll forming machine. It can work separately Due to it has independent control system so two lines working at the same time.

Due to the characteristics of fast disassembly, time-saving and labor-saving, light weight, long service life, good stability, convenient transportation, multiple disassembly and assembly, beautiful appearance, and sturdy structure, light steel structures are widely used in daily life

Advantage

Cangzhou FMS has a long history in producing rolling machines. Decades ago, their technical experience was consolidated through a flexible hydraulic punch system called 'soft punching'. Since then, Cangzhou FMS has produced several systems to meet the constantly changing industry needs. We have a team of professionals with many years of experience and a good track record, which can bring you some advanced and innovative energy, and this is also the case.

Specification

No.	Item	Description
1	Coil	PL,GL,PPGL,PPGI
2	Raw Material Thickness	0.4-0.8mm
3	Working Speed	10-25m/min
4	Roller Station	13 /16Raws
7	Electrical Control System	PLC (can be customized)
8	Drive Motor Power	7.5 KW
9	Hydraulic Station Power	5 KW
10	Power Supply	380V, 60HZ, 3 PHASES
11	Cutting Accuracy	±2 mm
12	Driving Mode	Single Chain 1 inch
13	Material of Shaft	60 mm 45#steel forged
14	Material of Roller	45# Steel Finish Machining, Plated Hard

Guarantee

1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.
2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation

Payment terms

40% in advance as down payment
60% is paid before the shipment is processed

Delivery

FOB: Tianjin Xingang Port
The Delivery Time: 30 days after the down payment is received.
