Name: Corrugated Grain Storage Silo Wall Sheet Roll Forming Machine Metal Galvanized Steel
Brand: Cangzhou Famous International Trading Co., Ltd
SKU: Podwójna warstwa
Price: 16,000.00 USD
Availability: InStock

Do domu > produkty > Maszyna do formowania rolek dachówek >

Corrugated Grain Storage Silo Wall Sheet Roll Forming Machine Metal Galvanized Steel

Silo Wall Sheet Roll Forming Machine

Galvanized Metal Sheet Roll Forming Machine

CE corrugated roof roll forming machine

Miejsce pochodzenia:

CHINY

Nazwa handlowa:

FMS

Orzecznictwo:

CE,ISO

Numer modelu:

Podwójna warstwa

Skontaktuj się z nami

Poproś o wycenę

Corrugated Grain Storage Silo Wall Sheet Roll Forming Machine Metal Galvanized Steel

Szczegóły produktu

Opis produktu:

Maszyna do formowania rolek z blachy falistej do przechowywania ziarna. Metalowa stal ocynkowana

Surowiec:

GL GI PPGL PPGI

Wymiar (L*W*H):

8,5*1,65*1,5 m

Szerokość karmienia:

914-1450 mm

Thinckness:

0,9-3,5 mm

Woltaż:

380 V 50 Hz 3 fazy

Materiał z ostrza:

Stal wysokiej jakości Cr 12

Główny silnik:

15+5,5KW

Waga:

około 12500 kg

Prędkość:

1-2 szt./min

Podkreślić:

Silo Wall Sheet Roll Forming Machine

Galvanized Metal Sheet Roll Forming Machine

CE corrugated roof roll forming machine

Warunki płatności i wysyłki

Minimalne zamówienie

1 zestaw

Cena

negotiable

Szczegóły pakowania

Główna maszyna jest naga, skrzynka sterownicza komputera jest zapakowana w plastik.

Czas dostawy

30 dni

Zasady płatności

T/T, Western Union

Możliwość Supply

35 zestawów miesięcznie

Powiązane produkty

6m Automatic Stacker for Roof Sheet Roll Forming Machine

Uzyskaj najlepszą cenę

Wideo

the factory price for 0.3-0.8mm thickness Glazed Roof sheet forming machine

Uzyskaj najlepszą cenę

Wideo

2025 New Design for Glazed Roof Tile Roof Sheet Roll Forming Machine With 18 Rows

Uzyskaj najlepszą cenę

Wideo

4meter/Min Glazed Tile Roll Forming Machine With 18 Rows

Uzyskaj najlepszą cenę

Skontaktuj się z nami

Skontaktuj się teraz

Opis produktu

Corrugated Grain Storage Silo Wall Sheet Roll Forming Machine Metal Galvanized Steel

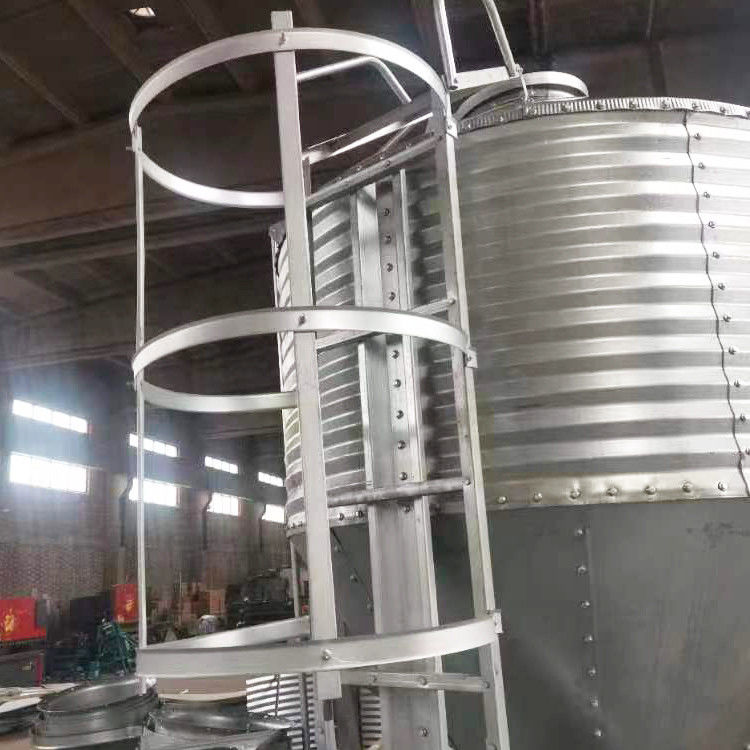

This equipment can be widely used in grain storage enterprises and food processing enterprises. It can effectively kill pests in grain piles including eggs, pupae, etc. during various growth periods. It is an indispensable and ideal storage equipment for national grain storage depots.

Main Features

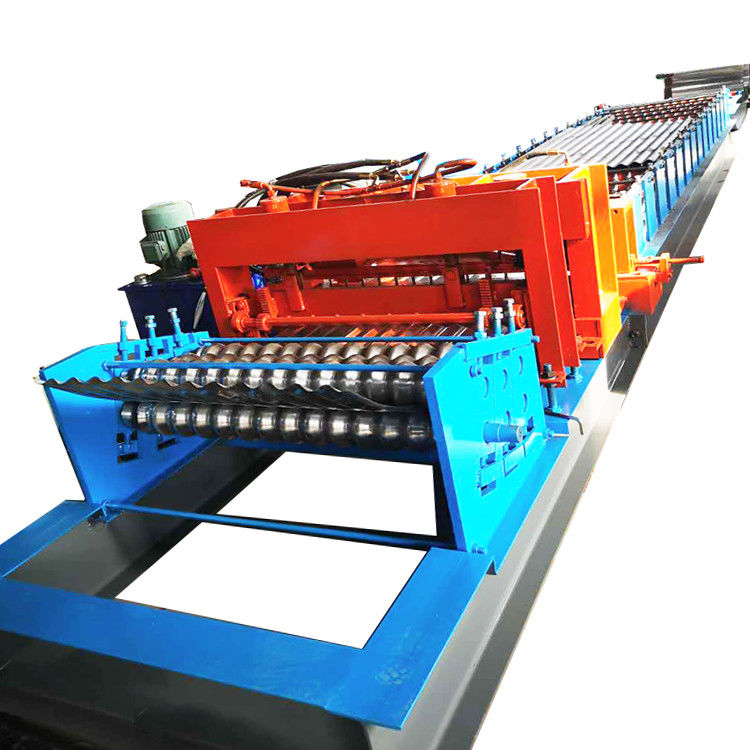

1. The roll forming machine can rollform metal profile. After roll formed by this roll forming machine, the surface will be very smooth and beautiful without any scratch on surface.
2. Rollforming process:uncoiler, straightening,rollforming, cut to length,Runout table.
3. Fully Automatic Control System with PLC.
4. Easy operation: Key in the length and quantity on the control panel.
5. One year warranty.
6. we also can do a custom roll forming machine, We can design the machine according to your specification and profile drawing.
7. One roll forming machine can produce one or two profiles.

.
Detailed Parameters:

Suit material	Gi /Carbon steel/Stainless steel
Feeding width	1000mm
Sheet thickness	0.9-3 5mm
Roller material	Bearing steel, heat treatment, surface polishing, hard chromium plating
Power	Main power 30kw+hydraulic station 22kw
Roller station	20 rollers
Leveling roller station	9 rollers
Speed	1-2 pcs/min

Guarantee

1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.

2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation

Payment terms

40% in advance as down payment

60% is paid before the shipment is processed

Delivery

FOB: Tianjin Xingang Port

The Delivery Time: 30 days after the down payment is received.
