Name: Galvanized Steel Hydraulic Cutting Floor Deck Roll Forming Machine Cold
Brand: Cangzhou Famous International Trading Co., Ltd
SKU: pokład podłogi
Price: 26,500.00 USD
Availability: InStock

Do domu > produkty > Maszyna do formowania rolki podłogowej >

Galvanized Steel Hydraulic Cutting Floor Deck Roll Forming Machine Cold

galvanized floor deck roll forming machine

15meter/min floor deck roll forming machine

galvanized steel deck roll forming machine

Miejsce pochodzenia:

Chiny kontynentalne

Nazwa handlowa:

FMS

Orzecznictwo:

ISO CE

Numer modelu:

pokład podłogi

Skontaktuj się z nami

Poproś o wycenę

Szczegóły produktu

Nazwa produktu:

Maszyna do formowania na zimno paneli tarasowych

Zdolność produkcyjna:

8-15 metrów/min

Waga:

8,5 T

Wymiar (L*W*H):

8,5 m*13 m*1,25 m

Moc:

7,5 kW

System cięcia:

Automatyczne cięcie hydrauliczne

Woltaż:

380 V 60 Hz lub dostosowane

Kolor:

Żądanie klienta

Materiał rolkowy:

45# Stal z powłoką chromową

Podkreślić:

galvanized floor deck roll forming machine

15meter/min floor deck roll forming machine

galvanized steel deck roll forming machine

Warunki płatności i wysyłki

Minimalne zamówienie

1 zestaw

Cena

negotiable

Szczegóły pakowania

40' FLC

Czas dostawy

30 dni roboczych

Zasady płatności

L/C, T/T, D/A, D/P

Możliwość Supply

20 zestawów miesięcznie

Powiązane produkty

Wideo

Cellular Composite Roofing Sheet Making Machine 3.0" Width 0.8-2.0MM Thickness

Uzyskaj najlepszą cenę

Wideo

13 Rows Roof Tile Roll Forming Machine For Tipo Teja Americana Normal Tile

Uzyskaj najlepszą cenę

Wideo

Decking Flooring Board 1.2mm Floor Tile Making Machine

Uzyskaj najlepszą cenę

Wideo

45 Steel Deck Roll Forming Machine Cold ±2mm Cutting Tolerance Excellent Performance

Uzyskaj najlepszą cenę

Skontaktuj się z nami

86-317-2016816

Skontaktuj się teraz

Opis produktu

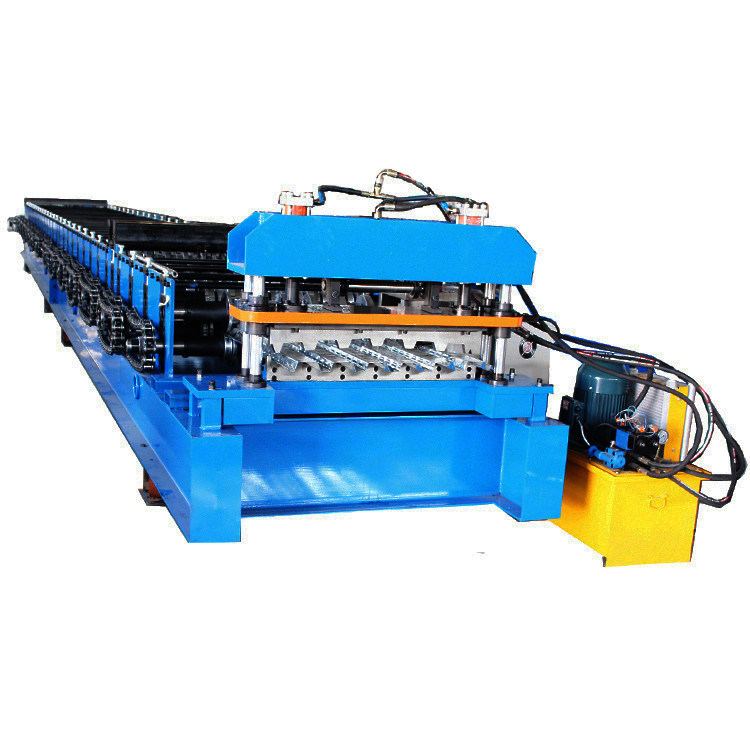

Metal Floor Deck Steel Roll Forming Machine Hydraulic Cutting

Metal Floor Deck Steel Roll Forming Machine Hydraulic Cutting.The floor deck panel produced by high tensile floor decking steel roll forming machine is widely used on the construction building because of its high pitches and strong strength .It includes manual decoiler , main roll forming machine (safety guard optional) , Hydraulic cutting system ,PLC control system , output table .

Specification

Type		specification
1	Row Material	Type	Color steel plate, galvanized plate, aluminum plate
		Feeding width	1220mm
		Thickness	0.8-1 mm
		Effiect width	1000mm
2	Main body	Forming roller station	26 Stations
		Diameter of shaft	90mm
		Shaft material	40Cr, Numerical Control Machining To HRC28-32, Then Polishing and Hard Plating
		Roller material	GCr15# Steel , Heat Treatment to HRC58-60,Then Polishing and Hard Plating
		frame	400mm H Steel
		Frame thickenss	20mm
		Working speed	8-12 m/min
		Size (LWH)	About 1520018501510mm
		Weight	About 16.5 tons
3	Power	Motor power	11KW+11KW
		Hydraulic power	5.5KW
		Voltage	380V 50Hz 3phases or Customerization
		Drving Way	By Chain
4	PLC Contro System	Language	English and Chinese
		Brand Of PLC	Delta brand (Touch Screen )
		Operation	Manual and Automatic (Two Type)
		Transducer	Delta brand
5	Cutting Device	Cutting Type	Hydraulic Cutting
		Blade of Cutting	Cr12 , quenching treatment
		Cutting Tolerance	+ -1mm

Guarantee

1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.

2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation

Payment terms

30% in advance as down payment

70% is paid before the shipment is processed

Delivery

FOB: Tianjin Xingang Port

The Delivery Time: 35 days after the down payment is received.

Galvanized Steel Hydraulic Cutting Floor Deck Roll Forming Machine Cold 0

Buyer pre-purchase notices:
1. What do you mean Width & Height double automatic-adjustable?
Here are two sets of automatic-adjustable system in this kind of machines.One set auto-adjustable system control Web width, the other set auto-adjustable system controls Flange height.
2.How to operate machine to achieve Width & Height double automatic-adjustable?
It just reset the size (what size of new product that you want the machine produce) on PLC touch screen, the size of machine is changed automaticlly.it only need you to adjusting the feeding inlet and cutting molds,etc by manual.

It greatly improves the traditional artificial replacement time, reduces the technical requirements of the technicians, and improves the production efficiency.
