Name: Automatic Roll Forming Machine For Perforated Type Cable Tray Cover And Bottom
Brand: Cangzhou Famous International Trading Co., Ltd
SKU: Taca kablowa
Price: 32,500.00 USD
Availability: InStock

Do domu > produkty > Maszyna do formowania płatwi CZ >

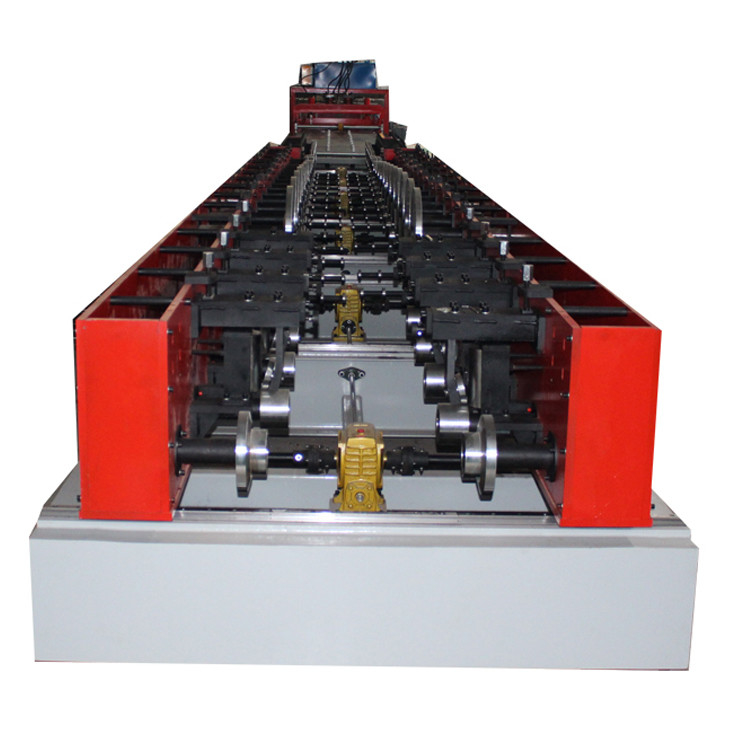

Automatic Roll Forming Machine For Perforated Type Cable Tray Cover And Bottom

90mm automatic roll forming machine

cable tray automatic roll forming machine

perforated type cable tray roll former

Miejsce pochodzenia:

CHINY

Nazwa handlowa:

FMS

Orzecznictwo:

Numer modelu:

Taca kablowa

Skontaktuj się z nami

Poproś o wycenę

Szczegóły produktu

Nazwa produktu:

Rozmiar zmienny profil korytka kablowego Maszyna do formowania rolek Sterowanie PLC

Szerokość profilu:

90-600mm

Wysokość profilu:

50mm-100mm

Woltaż:

380 V 50 Hz 3 fazy zgodnie z żądaniem

Główny silnik:

7,5 kW

Grubość materiału:

1.0-2,0 mm Galwanizowane cewki

Automatyzacja:

Automatyczny

Materiał rolkowy:

45# kuta stal

Rozmiar maszyny Długość:

11000 mm* Szerokość 800 mm* Wysokość 1000 m

Podkreślić:

90mm automatic roll forming machine

cable tray automatic roll forming machine

perforated type cable tray roll former

Warunki płatności i wysyłki

Minimalne zamówienie

1 zestaw

Cena

negotiable

Szczegóły pakowania

Główna maszyna jest naga, skrzynka sterownicza komputera jest zapakowana w plastik.

Czas dostawy

30 dni

Zasady płatności

T/T, Western Union, L/C

Możliwość Supply

20 zestawów miesięcznie

Powiązane produkty

Wideo

High Efficiency CZ Purlin Roll Forming Machine with 45# Steel Rollers and High Straightness for Construction

Uzyskaj najlepszą cenę

Wideo

Full Automatic CZ Purlin Roll Forming Machine with High Straight Level Crush Resistance and 1.5-3MM Thickness for Industrial Buildings

Uzyskaj najlepszą cenę

Wideo

CZ Purlin Roll Forming Machine with 18 Station Rollers, 380V/50HZ/3Phase Voltage and Cr12Mov Cutting Blade for High Efficiency

Uzyskaj najlepszą cenę

Wideo

CZ Purlin Roll Forming Machine with 700014001500mm Size 8-12m/min Forming Speed and 1.5-3.0mm Thickness for Galvanized Steel

Uzyskaj najlepszą cenę

Skontaktuj się z nami

86-317-2016816

Skontaktuj się teraz

Opis produktu

Automatic Perforated Type Cable Tray cover and bottom roll forming machine

With more than ten years of experience, Cangzhou famous has reached international manufacturing standards, and its machines are attracting customers all over the world.

With powerful technology, advanced equipment, and high standards, the shutter door bottom machine meets most customers' requirements.

The machine is equipped with an auto feeding system, an accurate counting system, a hydraulic shearing system, and a PLC control system, which makes it stable and long lasting.

specifications

Material Spec	colored steel sheet, galvanized steel sheet
main motor power	7.5 kw
forming speed	10-15m/min
Diameter of roller	70 millimeter
Thickness of Coil Sheet	0.3-0.8 millimeter
the width of the colored sheet	as per requested
the effective of steel sheet	as per requested.
Hydraulic station pressure	3 kw
Hydraulic pressure	10 - 12Mpa
Total Weight	about 5500 kg
Voltage	380 volt/3PH as per requested
Roll stand	22 Roller station
PLC	overseas Brand
Dimension	11.4m1.3m1.2m
Roller material	#45 steel
Frequency converter	containing
Computer operating screen	touch screen
Material of cutter	Cr12

Application

Cable tray is used to support and protect when wire electricity, electric power, communication control and instrumentation cable.
FMS compose this machinery as a cassette replacement type or automatic width control type in accordance with product.
And we supply equipment that is suitably designed for the use of product which can be formed after perforating a partition and other panels.

We promise to offer you the highest quality, the lowest price, the fastest delivery, and the best customer service. Our goal is to be your best supplier and business partner.

Payment terms and Delivery

40% in advance as down payment
60% is paid before the shipment is processed
FOB: Tianjin Xingang Port
The Delivery Time: 90 days after the down payment is received.
