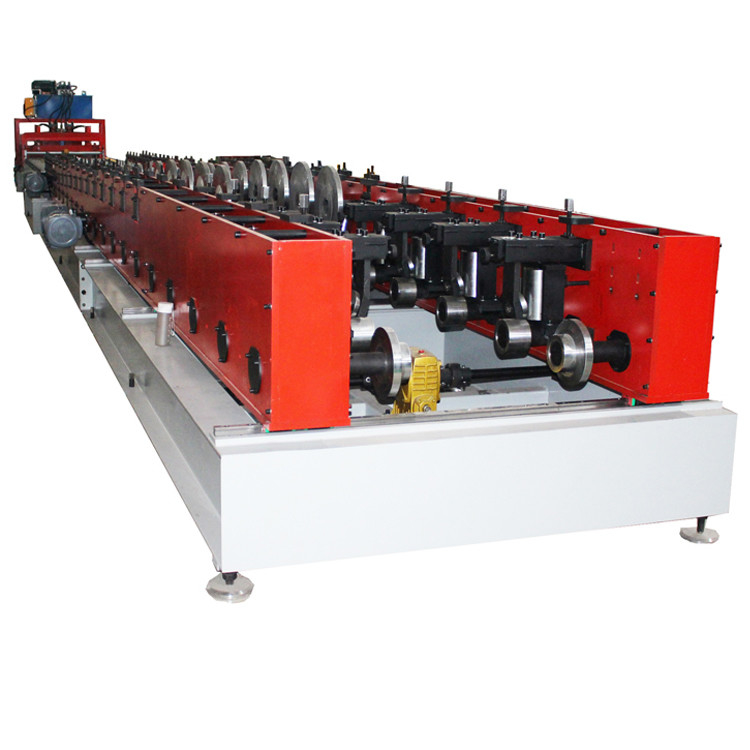

Name: Full Automatic Perforated Type Cable Tray Production Line 380v50hz
Brand: Cangzhou Famous International Trading Co., Ltd
SKU: Taca kablowa
Price: 32,500.00 USD
Availability: InStock

Do domu > produkty > Maszyna do formowania płatwi CZ >

Full Automatic Perforated Type Cable Tray Production Line 380v50hz

perforated type cable tray production line

380v50hz cable tray production line

fullautomatic cable tray roll forming machine

Miejsce pochodzenia:

CHINY

Nazwa handlowa:

FMS

Orzecznictwo:

Numer modelu:

Taca kablowa

Skontaktuj się z nami

Poproś o wycenę

Szczegóły produktu

Nazwa produktu:

W pełni automatyczna linia produkcyjna Perforowana maszyna do formowania rolek korytek kablowych

Szerokość profilu:

90-600mm

Wysokość profilu:

50mm-100mm

Woltaż:

380V50Hz 3PH zgodnie z żądaniem

Główny silnik:

7,5 kW

Grubość materiału:

Cewki ocynkowane o grubości 1,0-2,1 mm

Automatyzacja:

Automatyczny

Materiał rolkowy:

45# kuta stal

Rozmiar maszyny Długość:

13000 mm* Szerokość 800 mm* Wysokość 1000 m

Podkreślić:

perforated type cable tray production line

380v50hz cable tray production line

fullautomatic cable tray roll forming machine

Warunki płatności i wysyłki

Minimalne zamówienie

1 zestaw

Cena

negotiable

Szczegóły pakowania

Główna maszyna jest naga, skrzynka sterownicza komputera jest zapakowana w plastik.

Czas dostawy

30 dni

Zasady płatności

T/T, Western Union, L/C

Możliwość Supply

20 zestawów miesięcznie

Powiązane produkty

Wideo

High Efficiency CZ Purlin Roll Forming Machine with 45# Steel Rollers and High Straightness for Construction

Uzyskaj najlepszą cenę

Wideo

Full Automatic CZ Purlin Roll Forming Machine with High Straight Level Crush Resistance and 1.5-3MM Thickness for Industrial Buildings

Uzyskaj najlepszą cenę

Wideo

CZ Purlin Roll Forming Machine with 18 Station Rollers, 380V/50HZ/3Phase Voltage and Cr12Mov Cutting Blade for High Efficiency

Uzyskaj najlepszą cenę

Wideo

CZ Purlin Roll Forming Machine with 700014001500mm Size 8-12m/min Forming Speed and 1.5-3.0mm Thickness for Galvanized Steel

Uzyskaj najlepszą cenę

Skontaktuj się z nami

86-317-2016816

Skontaktuj się teraz

Opis produktu

Full Automatic Production Line Perforated Type Cable Tray Roll Forming Machine

Ventilated tray is made of ladder side,bottom plate and cross arm.they are made of profiles materials. The length of the standard is 2m per session. Long-span distance is 6m per session.

Profile material are made of aluminium alloy& stainless steel& Galvanized steel.
Main cable ladders range are designed to be a cost effective cable support system for high volumes of heavy weight cables. they can support very high loads, over long spans and provide cable laying depths from 200 up to 800 mm.

specifications

Material Spec	colored steel sheet, galvanized steel sheet
main motor power	7.5 kw
forming speed	10-15m/min
Diameter of roller	70 millimeter
Thickness of Coil Sheet	0.3-0.8 millimeter
the width of the colored sheet	as per requested
the effective of steel sheet	as per requested.
Hydraulic station pressure	3 kw
Hydraulic pressure	10 - 12Mpa
Total Weight	about 5500 kg
Voltage	380 volt/3PH as per requested
Roll stand	22 Roller station
PLC	overseas Brand
Dimension	11.4m1.3m1.2m
Roller material	#45 steel
Frequency converter	containing
Computer operating screen	touch screen
Material of cutter	Cr12

Application

Cable tray is used to support and protect when wire electricity, electric power, communication control and instrumentation cable.
FMS compose this machinery as a cassette replacement type or automatic width control type in accordance with product.
And we supply equipment that is suitably designed for the use of product which can be formed after perforating a partition and other panels.

Advantage

1. Full automatic steel cable tray production line.
2. As a manufacturer, we could delivery more faster, 10days for a 20ft container.
3. Competitive price, comparing with the distributor and warehouse, we are more cheaper.
4. Faster and effective solution to problem.
5. Using PLC control system for cutting the sizing products.
